56
57
p. 229

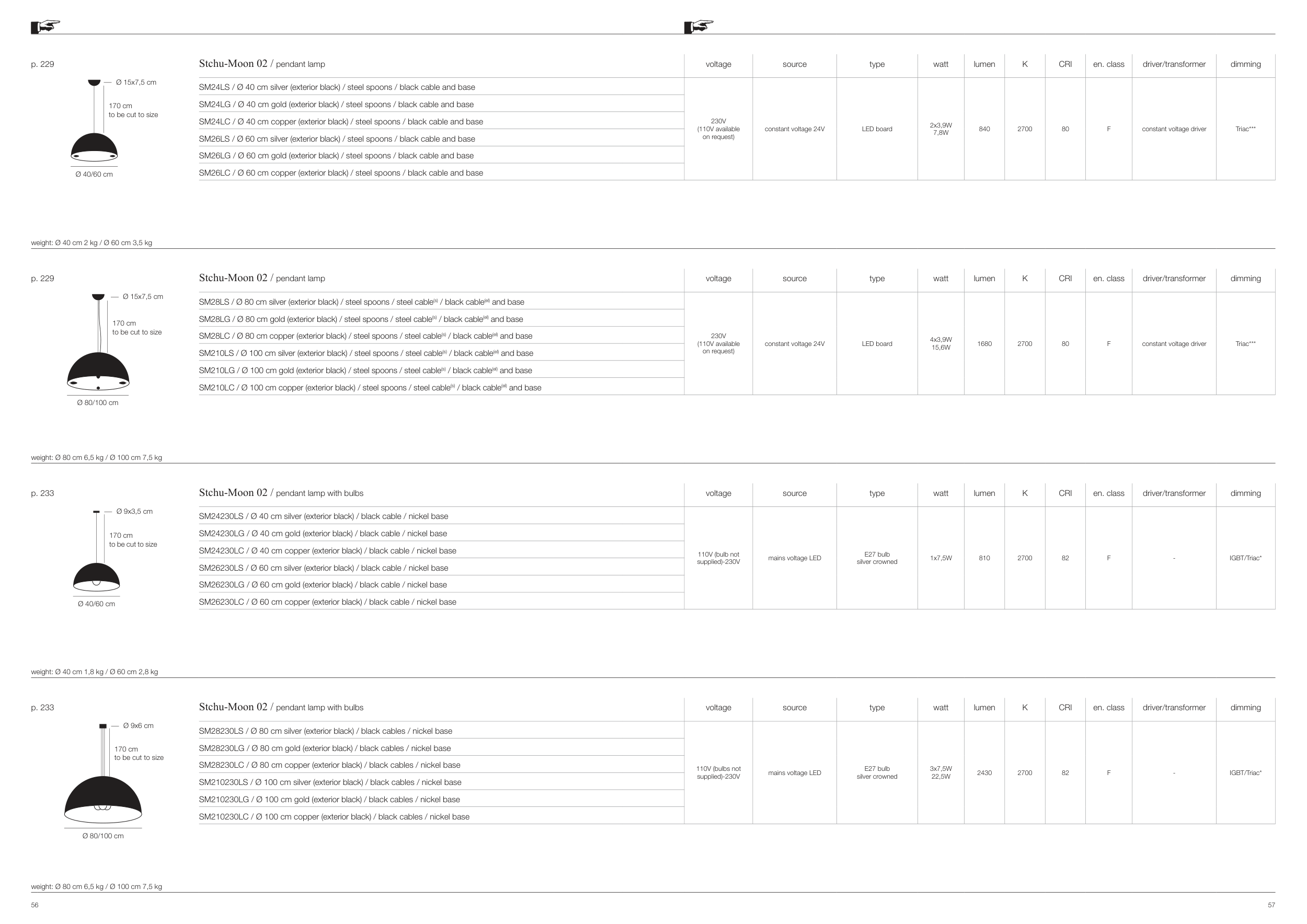

Stchu-Moon 02 / pendant lamp
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
Ø 15x7,5 cm
170 cm
to be cut to size
Ø 40/60 cm
SM24LS / Ø 40 cm silver (exterior black) / steel spoons / black cable and base
230V
(110V available
on request)
constant voltage 24V
LED board
2x3,9W
7,8W
840
2700
80
F
constant voltage driver
Triac***
SM24LG / Ø 40 cm gold (exterior black) / steel spoons / black cable and base
SM24LC / Ø 40 cm copper (exterior black) / steel spoons / black cable and base
SM26LS / Ø 60 cm silver (exterior black) / steel spoons / black cable and base
SM26LG / Ø 60 cm gold (exterior black) / steel spoons / black cable and base
SM26LC / Ø 60 cm copper (exterior black) / steel spoons / black cable and base
weight: Ø 40 cm 2 kg / Ø 60 cm 3,5 kg
p. 229
Stchu-Moon 02 / pendant lamp
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
Ø 15x7,5 cm
Ø 80/100 cm
170 cm
to be cut to size
SM28LS / Ø 80 cm silver (exterior black) / steel spoons / steel cable(s) / black cable(el) and base
230V
(110V available
on request)
constant voltage 24V
LED board
4x3,9W
15,6W
1680
2700
80
F
constant voltage driver
Triac***
SM28LG / Ø 80 cm gold (exterior black) / steel spoons / steel cable(s) / black cable(el) and base
SM28LC / Ø 80 cm copper (exterior black) / steel spoons / steel cable(s) / black cable(el) and base
SM210LS / Ø 100 cm silver (exterior black) / steel spoons / steel cable(s) / black cable(el) and base
SM210LG / Ø 100 cm gold (exterior black) / steel spoons / steel cable(s) / black cable(el) and base
SM210LC / Ø 100 cm copper (exterior black) / steel spoons / steel cable(s) / black cable(el) and base
weight: Ø 80 cm 6,5 kg / Ø 100 cm 7,5 kg
p. 233
Stchu-Moon 02 / pendant lamp with bulbs
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
Ø 40/60 cm
Ø 9x3,5 cm
170 cm
to be cut to size
SM24230LS / Ø 40 cm silver (exterior black) / black cable / nickel base
110V (bulb not
supplied)-230V
mains voltage LED
E27 bulb
silver crowned
1x7,5W
810
2700
82
F
-
IGBT/Triac*
SM24230LG / Ø 40 cm gold (exterior black) / black cable / nickel base
SM24230LC / Ø 40 cm copper (exterior black) / black cable / nickel base
SM26230LS / Ø 60 cm silver (exterior black) / black cable / nickel base
SM26230LG / Ø 60 cm gold (exterior black) / black cable / nickel base
SM26230LC / Ø 60 cm copper (exterior black) / black cable / nickel base
weight: Ø 40 cm 1,8 kg / Ø 60 cm 2,8 kg
p. 233
Stchu-Moon 02 / pendant lamp with bulbs
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
Ø 80/100 cm
Ø 9x6 cm
170 cm
to be cut to size
SM28230LS / Ø 80 cm silver (exterior black) / black cables / nickel base
110V (bulbs not
supplied)-230V
mains voltage LED
E27 bulb
silver crowned
3x7,5W
22,5W
2430
2700
82
F
-
IGBT/Triac*
SM28230LG / Ø 80 cm gold (exterior black) / black cables / nickel base
SM28230LC / Ø 80 cm copper (exterior black) / black cables / nickel base
SM210230LS / Ø 100 cm silver (exterior black) / black cables / nickel base
SM210230LG / Ø 100 cm gold (exterior black) / black cables / nickel base
SM210230LC / Ø 100 cm copper (exterior black) / black cables / nickel base
weight: Ø 80 cm 6,5 kg / Ø 100 cm 7,5 kg
