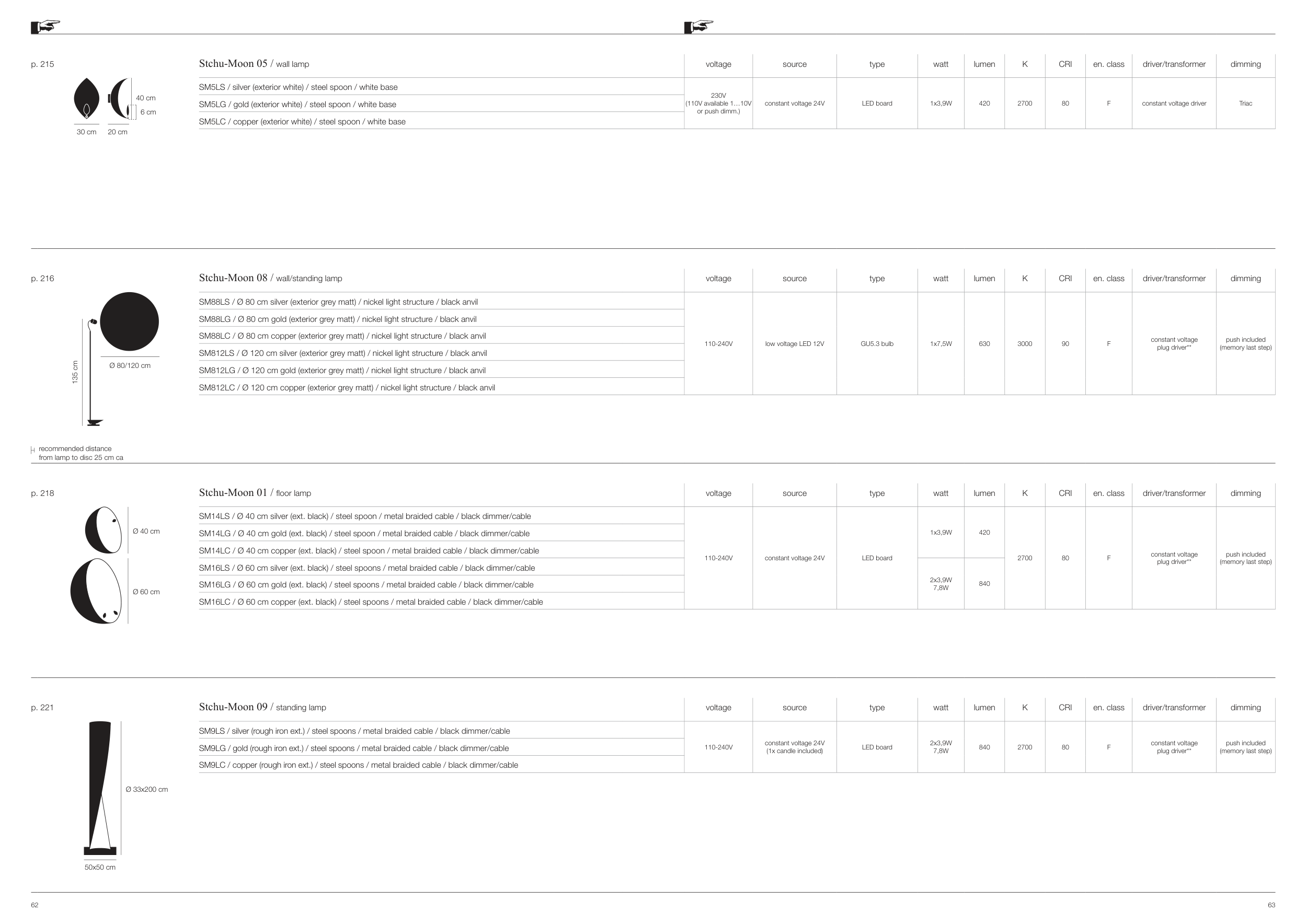

p. 215
Stchu-Moon 05 / wall lamp
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
40 cm
20 cm
30 cm
6 cm
SM5LS / silver (exterior white) / steel spoon / white base
230V
(110V available 1…10V
or push dimm.)
constant voltage 24V
LED board
1x3,9W
420
2700
80
F
constant voltage driver
Triac
SM5LG / gold (exterior white) / steel spoon / white base
SM5LC / copper (exterior white) / steel spoon / white base
p. 216
Stchu-Moon 08 / wall/standing lamp
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
135 cm
Ø 80/120 cm
SM88LS / Ø 80 cm silver (exterior grey matt) / nickel light structure / black anvil
110-240V
low voltage LED 12V
GU5.3 bulb
1x7,5W
630
3000
90
F
constant voltage
plug driver**
push included
(memory last step)
SM88LG / Ø 80 cm gold (exterior grey matt) / nickel light structure / black anvil
SM88LC / Ø 80 cm copper (exterior grey matt) / nickel light structure / black anvil
SM812LS / Ø 120 cm silver (exterior grey matt) / nickel light structure / black anvil
SM812LG / Ø 120 cm gold (exterior grey matt) / nickel light structure / black anvil
SM812LC / Ø 120 cm copper (exterior grey matt) / nickel light structure / black anvil
recommended distance
from lamp to disc 25 cm ca
p. 218
Stchu-Moon 01 / floor lamp
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
Ø 40 cm
Ø 60 cm
SM14LS / Ø 40 cm silver (ext. black) / steel spoon / metal braided cable / black dimmer/cable
110-240V
constant voltage 24V
LED board
1x3,9W
420
2700
80
F
constant voltage
plug driver**
push included
(memory last step)
SM14LG / Ø 40 cm gold (ext. black) / steel spoon / metal braided cable / black dimmer/cable
SM14LC / Ø 40 cm copper (ext. black) / steel spoon / metal braided cable / black dimmer/cable
SM16LS / Ø 60 cm silver (ext. black) / steel spoons / metal braided cable / black dimmer/cable
2x3,9W
7,8W
840
SM16LG / Ø 60 cm gold (ext. black) / steel spoons / metal braided cable / black dimmer/cable
SM16LC / Ø 60 cm copper (ext. black) / steel spoons / metal braided cable / black dimmer/cable
p. 221
Stchu-Moon 09 / standing lamp
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
Ø 33x200 cm
50x50 cm
SM9LS / silver (rough iron ext.) / steel spoons / metal braided cable / black dimmer/cable
110-240V
constant voltage 24V
(1x candle included)
LED board
2x3,9W
7,8W
840
2700
80
F
constant voltage
plug driver**
push included
(memory last step)
SM9LG / gold (rough iron ext.) / steel spoons / metal braided cable / black dimmer/cable
SM9LC / copper (rough iron ext.) / steel spoons / metal braided cable / black dimmer/cable
