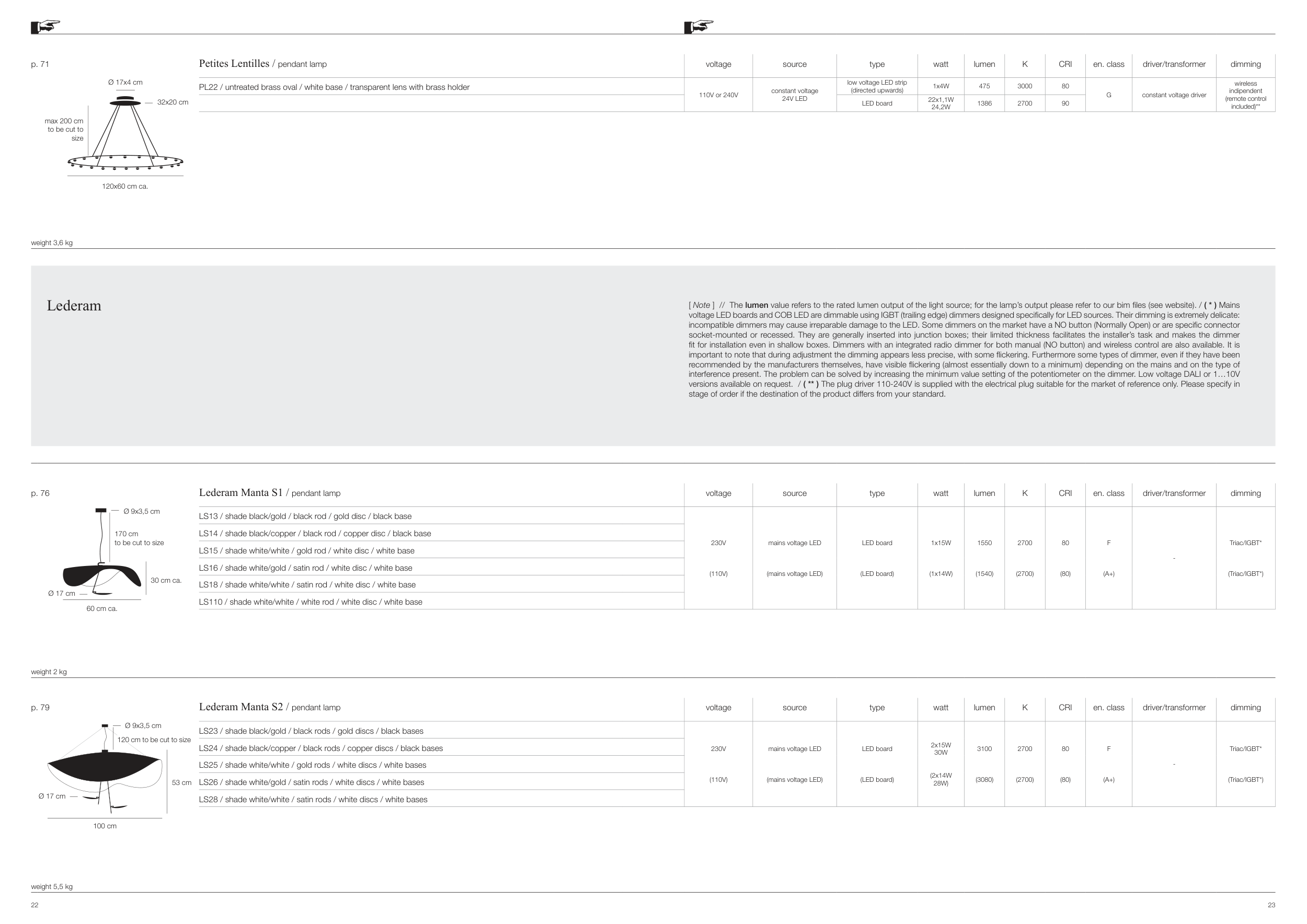

p. 71
Petites Lentilles / pendant lamp
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
32x20 cm
120x60 cm ca.
Ø 17x4 cm
max 200 cm
to be cut to
size
PL22 / untreated brass oval / white base / transparent lens with brass holder
110V or 240V
constant voltage
24V LED
low voltage LED strip
(directed upwards)
1x4W
475
3000
80
G
constant voltage driver
wireless
indipendent
(remote control
included)**
LED board
22x1,1W
24,2W
1386
2700
90
weight 3,6 kg
Lederam
[ Note ] // The lumen value refers to the rated lumen output of the light source; for the lamp’s output please refer to our bim files (see website). / ( * ) Mains
voltage LED boards and COB LED are dimmable using IGBT (trailing edge) dimmers designed specifically for LED sources. Their dimming is extremely delicate:
incompatible dimmers may cause irreparable damage to the LED. Some dimmers on the market have a NO button (Normally Open) or are specific connector
socket-mounted or recessed. They are generally inserted into junction boxes; their limited thickness facilitates the installer’s task and makes the dimmer
fit for installation even in shallow boxes. Dimmers with an integrated radio dimmer for both manual (NO button) and wireless control are also available. It is
important to note that during adjustment the dimming appears less precise, with some flickering. Furthermore some types of dimmer, even if they have been
recommended by the manufacturers themselves, have visible flickering (almost essentially down to a minimum) depending on the mains and on the type of
interference present. The problem can be solved by increasing the minimum value setting of the potentiometer on the dimmer. Low voltage DALI or 1…10V
versions available on request. / ( ** ) The plug driver 110-240V is supplied with the electrical plug suitable for the market of reference only. Please specify in
stage of order if the destination of the product differs from your standard.
p. 76
Lederam Manta S1 / pendant lamp
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
Ø 17 cm
Ø 9x3,5 cm
30 cm ca.
60 cm ca.
170 cm
to be cut to size
LS13 / shade black/gold / black rod / gold disc / black base
230V
(110V)
mains voltage LED
(mains voltage LED)
LED board
(LED board)
1x15W
(1x14W)
1550
(1540)
2700
(2700)
80
(80)
F
(A+)
-
Triac/IGBT*
(Triac/IGBT*)
LS14 / shade black/copper / black rod / copper disc / black base
LS15 / shade white/white / gold rod / white disc / white base
LS16 / shade white/gold / satin rod / white disc / white base
LS18 / shade white/white / satin rod / white disc / white base
LS110 / shade white/white / white rod / white disc / white base
weight 2 kg
p. 79
Lederam Manta S2 / pendant lamp
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
53 cm
100 cm
Ø 17 cm
120 cm to be cut to size
Ø 9x3,5 cm
LS23 / shade black/gold / black rods / gold discs / black bases
230V
(110V)
mains voltage LED
(mains voltage LED)
LED board
(LED board)
2x15W
30W
(2x14W
28W)
3100
(3080)
2700
(2700)
80
(80)
F
(A+)
-
Triac/IGBT*
(Triac/IGBT*)
LS24 / shade black/copper / black rods / copper discs / black bases
LS25 / shade white/white / gold rods / white discs / white bases
LS26 / shade white/gold / satin rods / white discs / white bases
LS28 / shade white/white / satin rods / white discs / white bases
weight 5,5 kg
