108
109

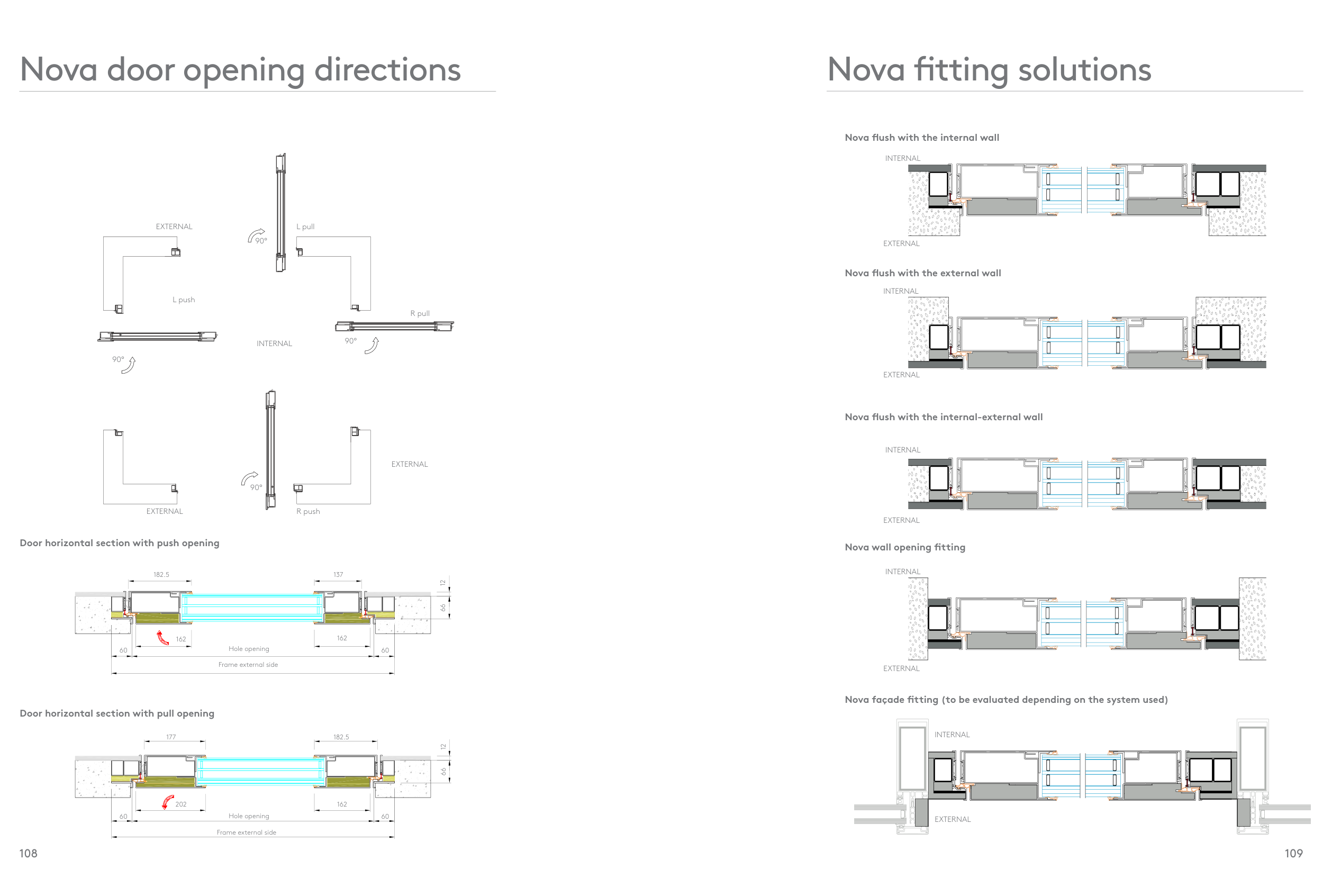

Nova door opening directions
Nova fitting solutions
Nova façade fitting (to be evaluated depending on the system used)
Nova flush with the external wall
Nova flush with the internal-external wall
Nova wall opening fitting
Nova flush with the internal wall
EXTERNAL
EXTERNAL
EXTERNAL
EXTERNAL
EXTERNAL
INTERNAL
INTERNAL
INTERNAL
INTERNAL
INTERNAL
EXTERNAL
EXTERNAL
Hole opening
177
202
182.5
162
Frame external side
Hole opening
162
182.5
137
12
12
66
66
162
60
60
60
60
Frame external side
EXTERNAL
INTERNAL
90°
90°
90°
90°
R pull
R push
L push
L pull
Door horizontal section with push opening
Door horizontal section with pull opening
