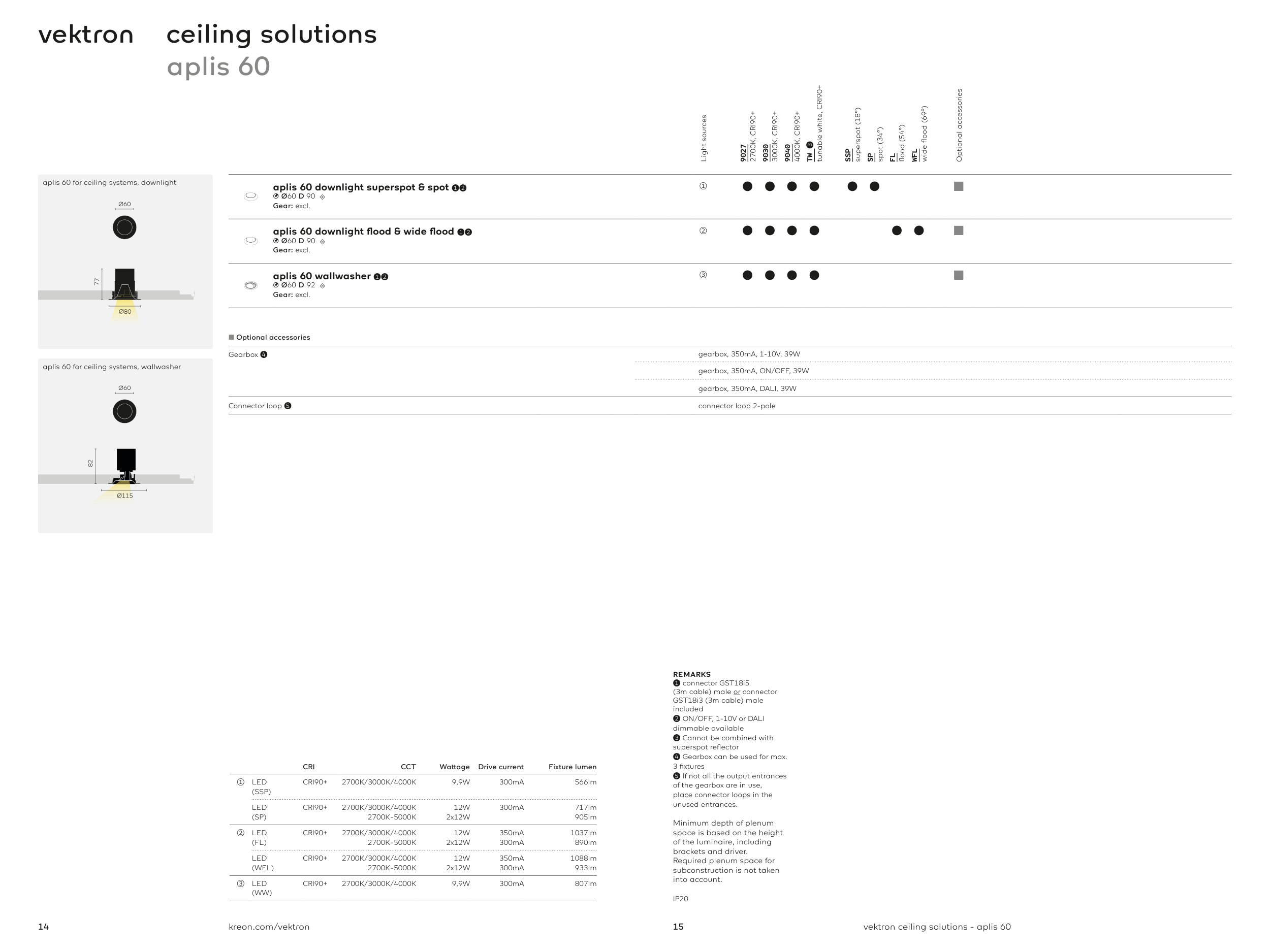

vektron ceiling solutions - aplis 60
kreon.com/vektron
14
15
Ø60
Ø115
82
Ø60
Ø80
77
vektron ceiling solutions
aplis 60
Light sources
9027
2700K, CRI90+
9030
3000K, CRI90+
9040
4000K, CRI90+
TW ➌
tunable white, CRI90+
SSP
superspot (18°)
SP
spot (34°)
FL
fl ood (54°)
WFL
wide fl ood (69°)
Optional accessories
aplis 60 downlight superspot & spot ➊➋
1 Ø60 D 90 4
Gear: excl.
➀
●
●
●
●
●
●
■
aplis 60 downlight fl ood & wide fl ood ➊➋
1 Ø60 D 90 4
Gear: excl.
➁
●
●
●
●
●
●
■
aplis 60 wallwasher ➊➋
1 Ø60 D 92 4
Gear: excl.
➂
●
●
●
●
■
REMARKS
➊ connector GST18i5
(3m cable) male or connector
GST18i3 (3m cable) male
included
➋ ON/OFF, 1-10V or DALI
dimmable available
➌ Cannot be combined with
superspot refl ector
➍ Gearbox can be used for max.
3 fi xtures
➎ If not all the output entrances
of the gearbox are in use,
place connector loops in the
unused entrances.
Minimum depth of plenum
space is based on the height
of the luminaire, including
brackets and driver.
Required plenum space for
subconstruction is not taken
into account.
IP20
aplis 60 for ceiling systems, downlight
aplis 60 for ceiling systems, wallwasher
■ Optional accessories
Gearbox ➍
gearbox, 350mA, 1-10V, 39W
gearbox, 350mA, ON/OFF, 39W
gearbox, 350mA, DALI, 39W
Connector loop ➎
connector loop 2-pole
CRI
CCT
Watt age
Drive current
Fixture lumen
➀
LED
(SSP)
CRI90+
2700K/3000K/4000K
9,9W
300mA
566lm
LED
(SP)
CRI90+
2700K/3000K/4000K
2700K-5000K
12W
2x12W
300mA
717lm
905lm
➁
LED
(FL)
CRI90+
2700K/3000K/4000K
2700K-5000K
12W
2x12W
350mA
300mA
1037lm
890lm
LED
(WFL)
CRI90+
2700K/3000K/4000K
2700K-5000K
12W
2x12W
350mA
300mA
1088lm
933lm
➂
LED
(WW)
CRI90+
2700K/3000K/4000K
9,9W
300mA
807lm
