Material: Aluminum / Steel
Height: 600 / 1000 mm
CCT: 2700K / 3000K
Accessories: Plinth
Adjustability: No
Dimmable: According to driver
Lens: Asymmetric
161° Ultra Wide (10,5x2,6m) / 154° Wide (4x7,8m)
Luminous flux: 686 lm (3000K 161° Ultra Wide)
Efficacy: 84 lm/W
Power consumption: 8,2W
Input current: Max 700mA
IP rating: 65
Asymmetric light beam
Ultra Wide light beam
Wide light beam
Ø80
600
Ø122
36
Ø80
1000
Ø122
36
Greenery

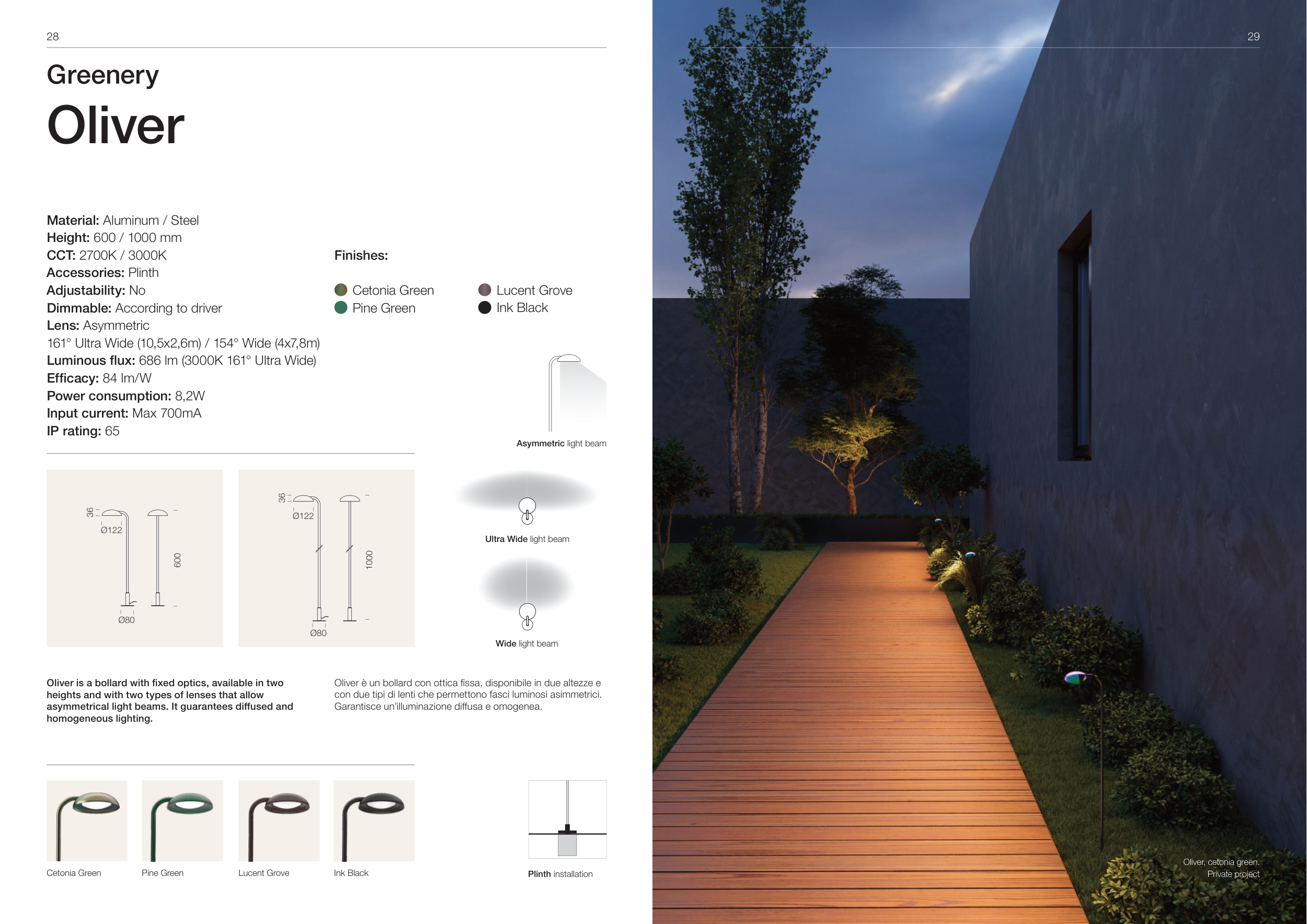

Oliver
Plinth installation
Oliver, cetonia green.
Private project
Cetonia Green
Ink Black
Lucent Grove
Pine Green
Oliver is a bollard with �xed optics, available in two
heights and with two types of lenses that allow
asymmetrical light beams. It guarantees di�used and
homogeneous lighting.
Oliver è un bollard con ottica �ssa, disponibile in due altezze e
con due tipi di lenti che permettono fasci luminosi asimmetrici.
Garantisce un’illuminazione di�usa e omogenea.
Finishes:
Cetonia Green
Pine Green
Lucent Grove
Ink Black
29
28
