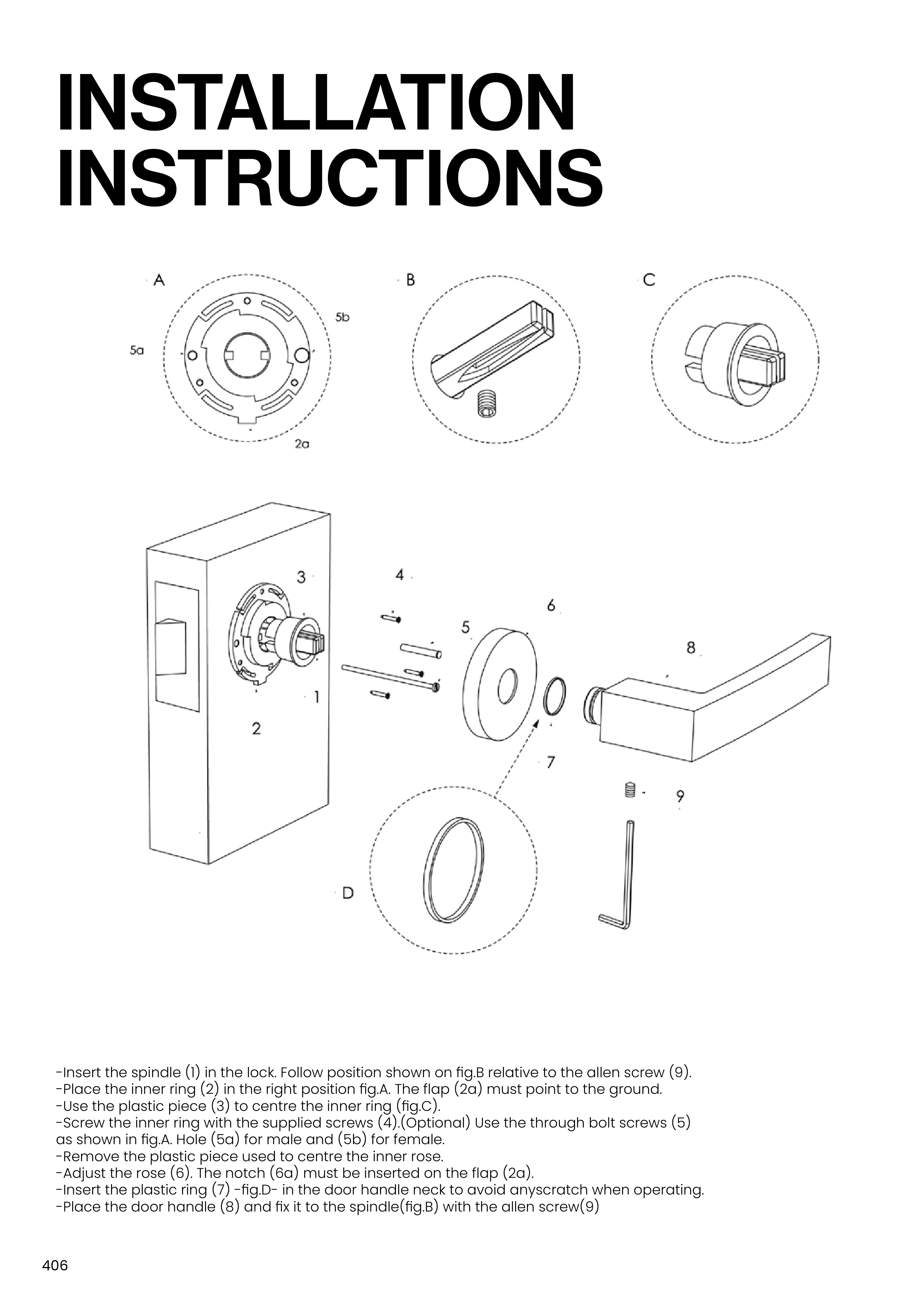

INSTALLATION
INSTRUCTIONS
-Insert the spindle (1) in the lock. Follow position shown on fig.B relative to the allen screw (9).
-Place the inner ring (2) in the right position fig.A. The flap (2a) must point to the ground.
-Use the plastic piece (3) to centre the inner ring (fig.C).
-Screw the inner ring with the supplied screws (4).(Optional) Use the through bolt screws (5)
as shown in fig.A. Hole (5a) for male and (5b) for female.
-Remove the plastic piece used to centre the inner rose.
-Adjust the rose (6). The notch (6a) must be inserted on the flap (2a).
-Insert the plastic ring (7) -fig.D- in the door handle neck to avoid anyscratch when operating.
-Place the door handle (8) and fix it to the spindle(fig.B) with the allen screw(9)
