Micro 48V Track System
14
15

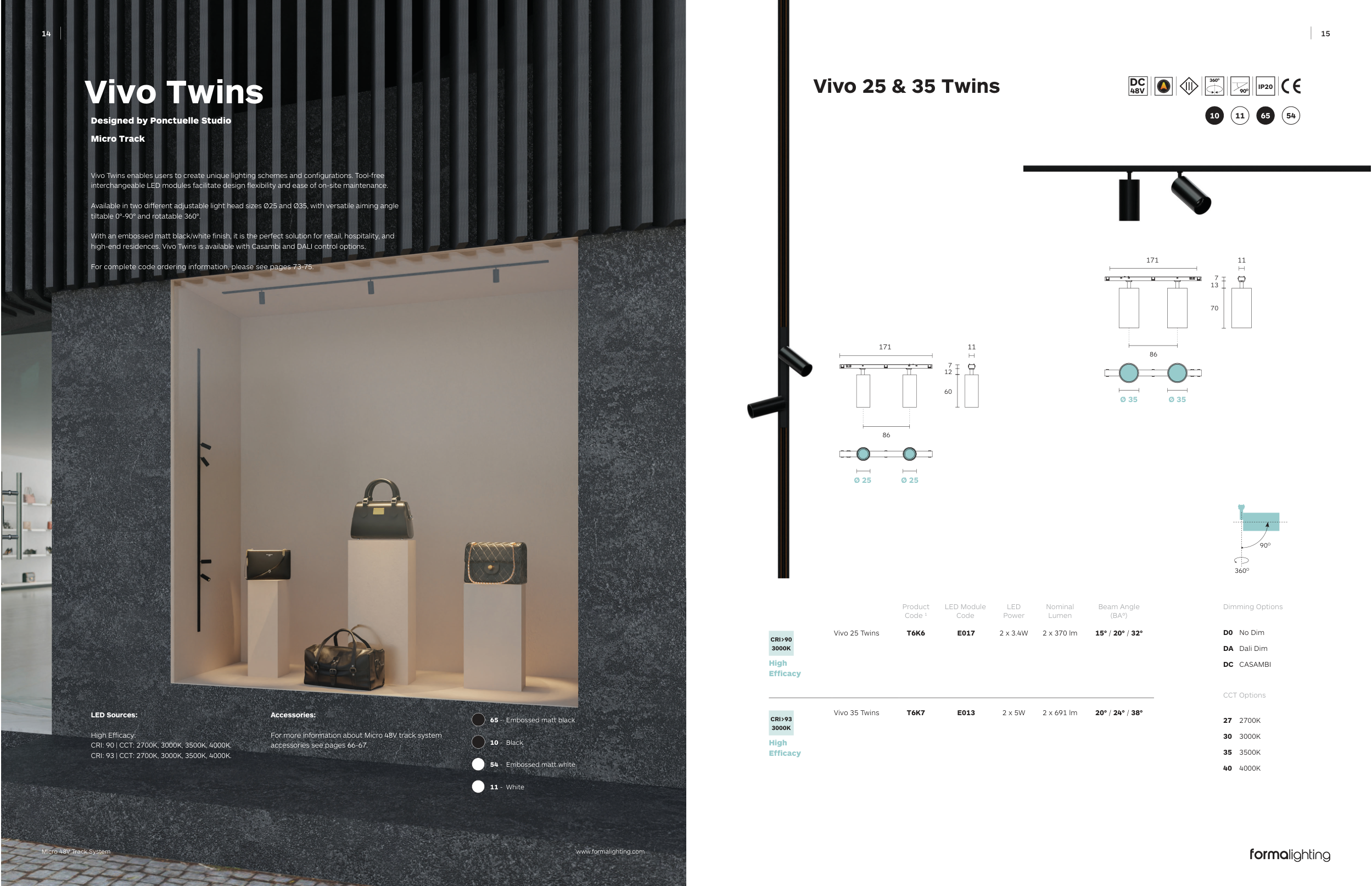

Vivo Twins
LED Sources:
High Efficacy:
CRI: 90 | CCT: 2700K, 3000K, 3500K, 4000K.
CRI: 93 | CCT: 2700K, 3000K, 3500K, 4000K.
Vivo Twins enables users to create unique lighting schemes and configurations. Tool-free
interchangeable LED modules facilitate design flexibility and ease of on-site maintenance.
Available in two different adjustable light head sizes Ø25 and Ø35, with versatile aiming angle
tiltable 0°-90° and rotatable 360°.
With an embossed matt black/white finish, it is the perfect solution for retail, hospitality, and
high-end residences. Vivo Twins is available with Casambi and DALI control options.
For complete code ordering information, please see pages 73-75.
65 - Embossed matt black
10 - Black
54 - Embossed matt white
11 - White
Vivo 25 & 35 Twins
90O
360O
Product
Code 1
LED Module
Code
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
CRI>90
3000K
High
Efficacy
Vivo 25 Twins
T6K6
E017
2 x 3.4W
2 x 370 lm
15° / 20° / 32°
CRI>93
3000K
High
Efficacy
Vivo 35 Twins
T6K7
E013
2 x 5W
2 x 691 lm
20° / 24° / 38°
Vi
11
70
11
60
Ø 35
Ø 35
171
86
7
13
171
7
12
Ø 25
Ø 25
86
Dimming Options
D0
No Dim
DA
Dali Dim
DC CASAMBI
CCT Options
27
2700K
30
3000K
35
3500K
40
4000K
Designed by Ponctuelle Studio
Micro Track
DC
48V
360O
90O
IP20
www.formalighting.com
Micro 48V Track System
14
Accessories:
For more information about Micro 48V track system
accessories see pages 66-67.
