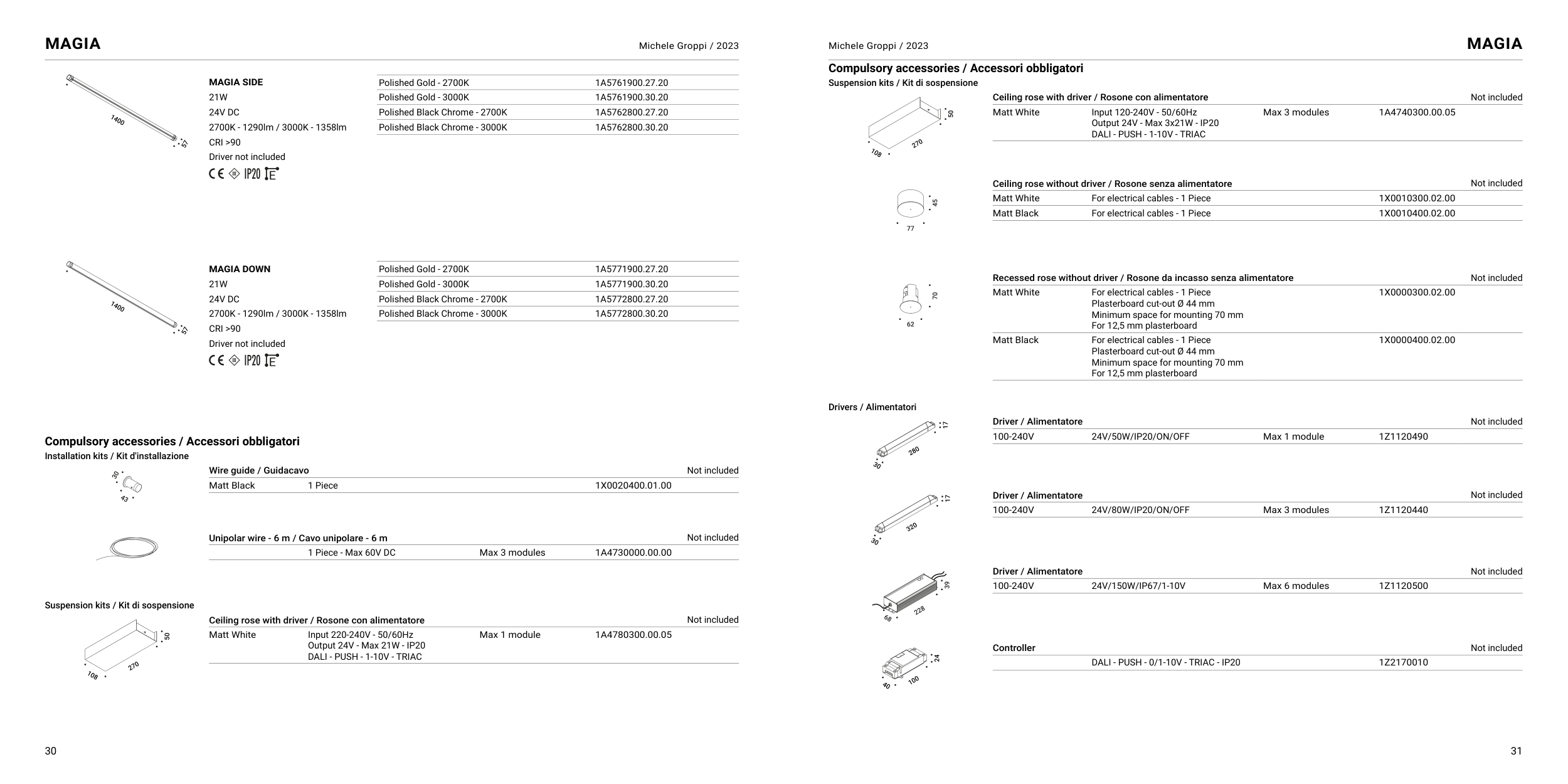

MAGIA
Michele Groppi / 2023
Michele Groppi / 2023
MAGIA
MAGIA SIDE
21W
24V DC
2700K - 1290lm / 3000K - 1358lm
CRI >90
Driver not included
Polished Gold - 2700K
1A5761900.27.20
Polished Gold - 3000K
1A5761900.30.20
Polished Black Chrome - 2700K
1A5762800.27.20
Polished Black Chrome - 3000K
1A5762800.30.20
MAGIA DOWN
21W
24V DC
2700K - 1290lm / 3000K - 1358lm
CRI >90
Driver not included
Polished Gold - 2700K
1A5771900.27.20
Polished Gold - 3000K
1A5771900.30.20
Polished Black Chrome - 2700K
1A5772800.27.20
Polished Black Chrome - 3000K
1A5772800.30.20
Compulsory accessories / Accessori obbligatori
Installation kits / Kit d'installazione
Wire guide / Guidacavo
Not included
Matt Black
1 Piece
1X0020400.01.00
Unipolar wire - 6 m / Cavo unipolare - 6 m
Not included
1 Piece - Max 60V DC
Max 3 modules
1A4730000.00.00
Suspension kits / Kit di sospensione
Ceiling rose with driver / Rosone con alimentatore
Not included
Matt White
Input 220-240V - 50/60Hz
Output 24V - Max 21W - IP20
DALI - PUSH - 1-10V - TRIAC
Max 1 module
1A4780300.00.05
Compulsory accessories / Accessori obbligatori
Suspension kits / Kit di sospensione
Ceiling rose with driver / Rosone con alimentatore
Not included
Matt White
Input 120-240V - 50/60Hz
Output 24V - Max 3x21W - IP20
DALI - PUSH - 1-10V - TRIAC
Max 3 modules
1A4740300.00.05
Ceiling rose without driver / Rosone senza alimentatore
Not included
Matt White
For electrical cables - 1 Piece
1X0010300.02.00
Matt Black
For electrical cables - 1 Piece
1X0010400.02.00
Recessed rose without driver / Rosone da incasso senza alimentatore
Not included
Matt White
For electrical cables - 1 Piece
Plasterboard cut-out Ø 44 mm
Minimum space for mounting 70 mm
For 12,5 mm plasterboard
1X0000300.02.00
Matt Black
For electrical cables - 1 Piece
Plasterboard cut-out Ø 44 mm
Minimum space for mounting 70 mm
For 12,5 mm plasterboard
1X0000400.02.00
Drivers / Alimentatori
Driver / Alimentatore
Not included
100-240V
24V/50W/IP20/ON/OFF
Max 1 module
1Z1120490
Driver / Alimentatore
Not included
100-240V
24V/80W/IP20/ON/OFF
Max 3 modules
1Z1120440
Driver / Alimentatore
Not included
100-240V
24V/150W/IP67/1-10V
Max 6 modules
1Z1120500
Controller
Not included
DALI - PUSH - 0/1-10V - TRIAC - IP20
1Z2170010
