TOUCH
GLOSSY
METODO DI PROVA
VALORI MEDI
VALORI MEDI
Test Method
Average Values
Average Values
RESISTENZA ALLA FLESSIONE Valore Medio
Modulus of Rupture Average Value
ISO 10545-4
50 N/mm2
50 N/mm2
ASTM C1505
≥ 6.000 PSI
≥ 6.000 PSI
RESISTENZA ALLE MACCHIE
Stain Resistance
ISO 10545-14
≥ 3
≥ 3
ASTM C 1378
Class C
Class C
RESISTENZA ALL’ATTACCO CHIMICO**
Chemical Resistance**
ISO 10545-13
LB - HB
LB - HB
ASTM C 650
Class C
Class C
RESISTENZA ALL’ABRASIONE PROFONDA Valore Medio**
Deep Abrasion Resistance Average Value**
ISO 10545-6 /
ASTM C 1243
CONFORME / COMPLIANT
CONFORME / COMPLIANT
ASSORBIMENTO D’ACQUA Valore Medio*
Water Absorption Average Value*
ISO 10545-3 /
ASTM C 373
0,1%
0,1%
RESISTENZA AL GELO
Frost Resistance
ISO 10545-12 /
ASTM C 1026
RESISTENTE / RESISTANT
RESISTENTE / RESISTANT
DILATAZIONE TERMICA LINEARE
Linear Thermal Expansion
ISO 10545-8
α ≤ 7 x 10-6 °C-1
α ≤ 7 x 10-6 °C-1
ASTM C 372
α ≤ 4.4 x 10-6 °F-1 / α ≤ 8 x 10-6 °C-1
α ≤ 4.4 x 10-6 °F-1 / α ≤ 8 x 10-6 °C-1
REAZIONE AL FUOCO
Fire Reaction
EN 13823
Classe/Class A2-s1,d0 (wall)
Classe/Class A2-s1,d0 (wall)
EN 9239-1
Classe/Class A2fl-s1 (floor)
Classe/Class A2fl-s1 (floor)
FLAME SPREAD
ASTM E84
Class A
Class A
CONDUCIBILITÀ TERMICA
Thermal Conductivity
EN 12524
λ = 1,3 W/m°K / 0.7 BTU/ft h °F
λ = 1,3 W/m°K / 0.7 BTU/ft h °F
ROBINSON FLOOR TESTER Valore Medio
Average Value
ASTM C627
≥ 12 cycles Heavy Commercial
(Over Concrete)
≥ 12 cycles Heavy Commercial
(Over Concrete)
STONALIZZAZIONE
Deshading
ANSI A137.3
V2
V2
FUGA MINIMA CONSIGLIATA: Vedi Manuale Tenico Kerlite / MINUMUM SUGGESTED JOINT: Refer to Kerlite Technical Manual
* Valore riferito al solo materiale ceramico / Average value reffered to ceramic material only
** Ad esclusione dell’acido fluoridrico e suoi derivati. / Excluding hydrofluoric acid and its derivatives.
GRES PORCELLANATO LAMINATO
Laminated Porcelain Stoneware
ISO 13006-G (Gruppo/Group BIa UGL)
EN 14411-G (Gruppo/Group BIa UGL)
ANSI A137.3 (Unglazed Back-Layered gauged porcelain slabs)

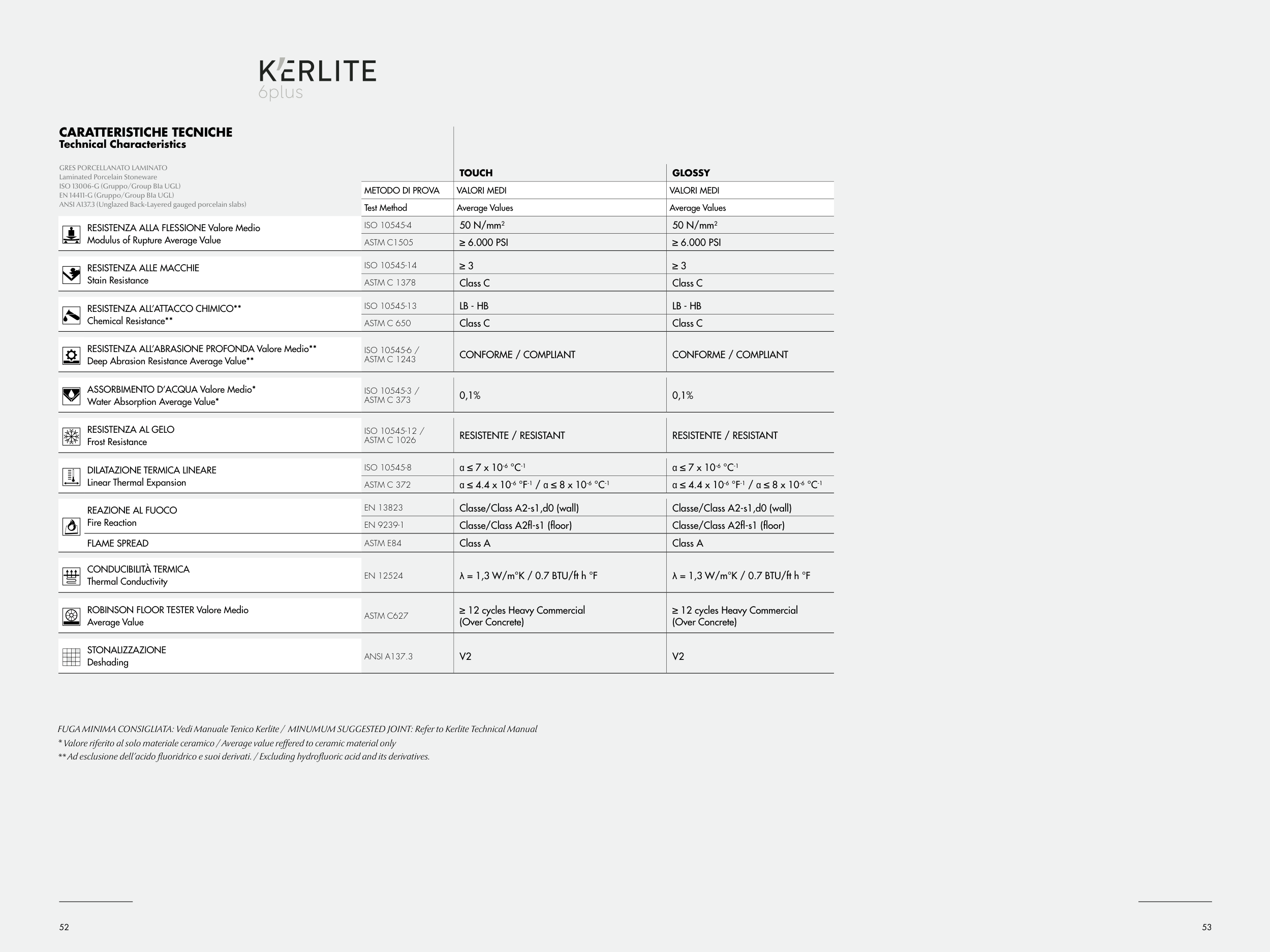

CARATTERISTICHE TECNICHE
Technical Characteristics
