THE UPS IN DATA CENTERS AND THEIR MAIN FEATURES
Adaptability to the room and building (continued)
For Large systems like Keor XPE and UPSaver composed by several cabinets, Legrand offers the possibility of free positioning
of the individual cabinets in order to optimize the occupation of room space, for instance following the wall or placing the
cabinets in the center of the room and may other layout. In addition, the free positioning of cabinets, allows to skip structural
obstacle like pillars, doors, etc.
ADAPTABILITY TO THE APPLICATION AND USER
The last “side” of Adaptability is toward the application and the user. In Data Center the core of the application is the
treatment and the storage of the data inside the active devices. The value of these activities is so high that they must be
constantly kept active, protected and controlled.
This means that all the infrastructure which supports and holds up the active load must be monitored, controlled and
integrated in automatic diagnostic and process management. For this reason, the UPS for Data Center should have a
full set of communication interfaces with the most popular protocols and compatible with all operating systems, which
allow the full integration in Data Center data networks.
Finally the UPS for Data Center should be adaptable also to the user, with intuitive, simple and immediate display and
human interface: these elements should clearly show the status of the system and with few “taps” allow complete
monitoring, control and, with proper protections, set up and diagnostics actions.

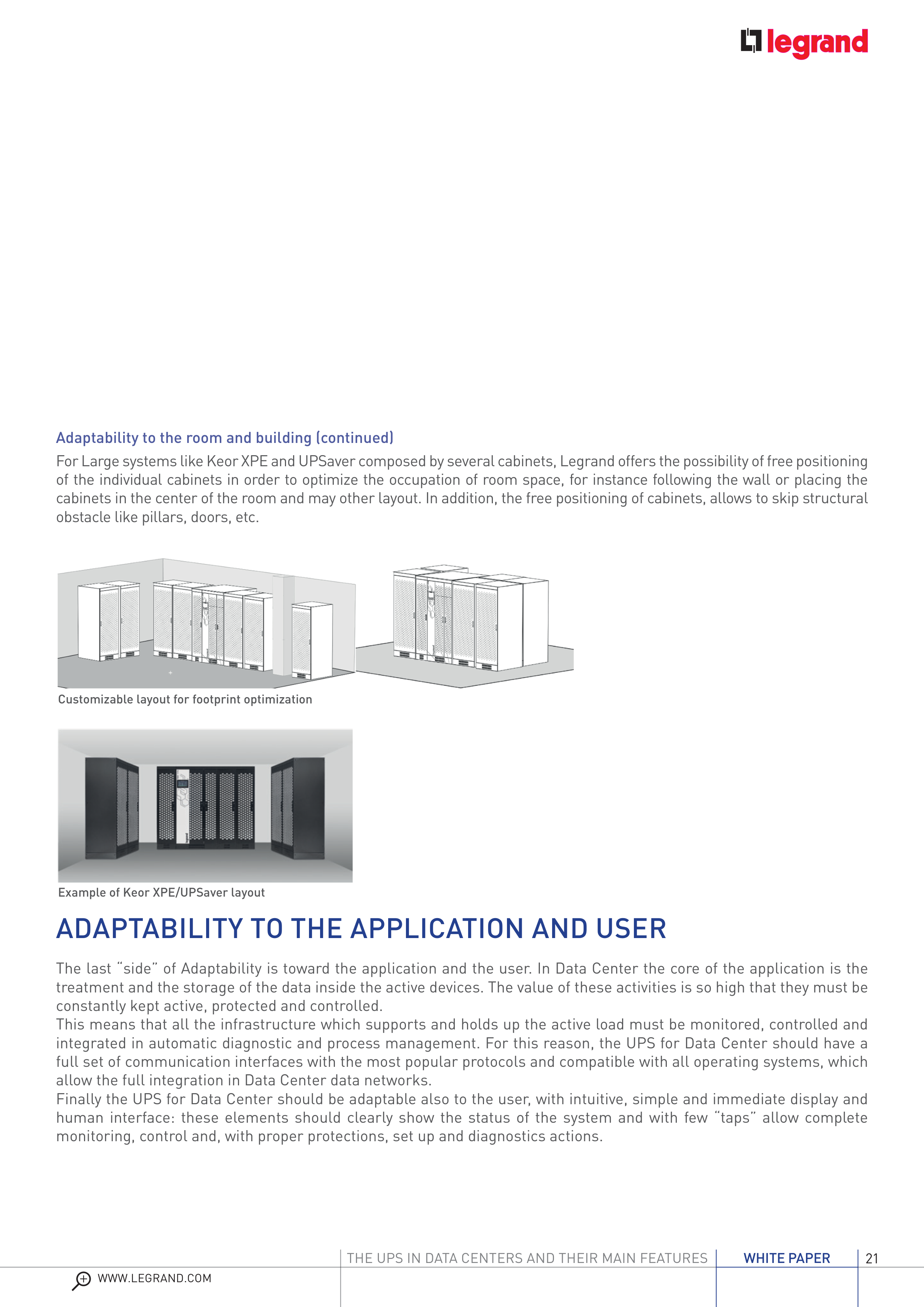

Customizable layout for footprint optimization
Example of Keor XPE/UPSaver layout
Top and front ventilation allow installation against the wall with floor space savings
