THE UPS IN DATA CENTERS AND THEIR MAIN FEATURES

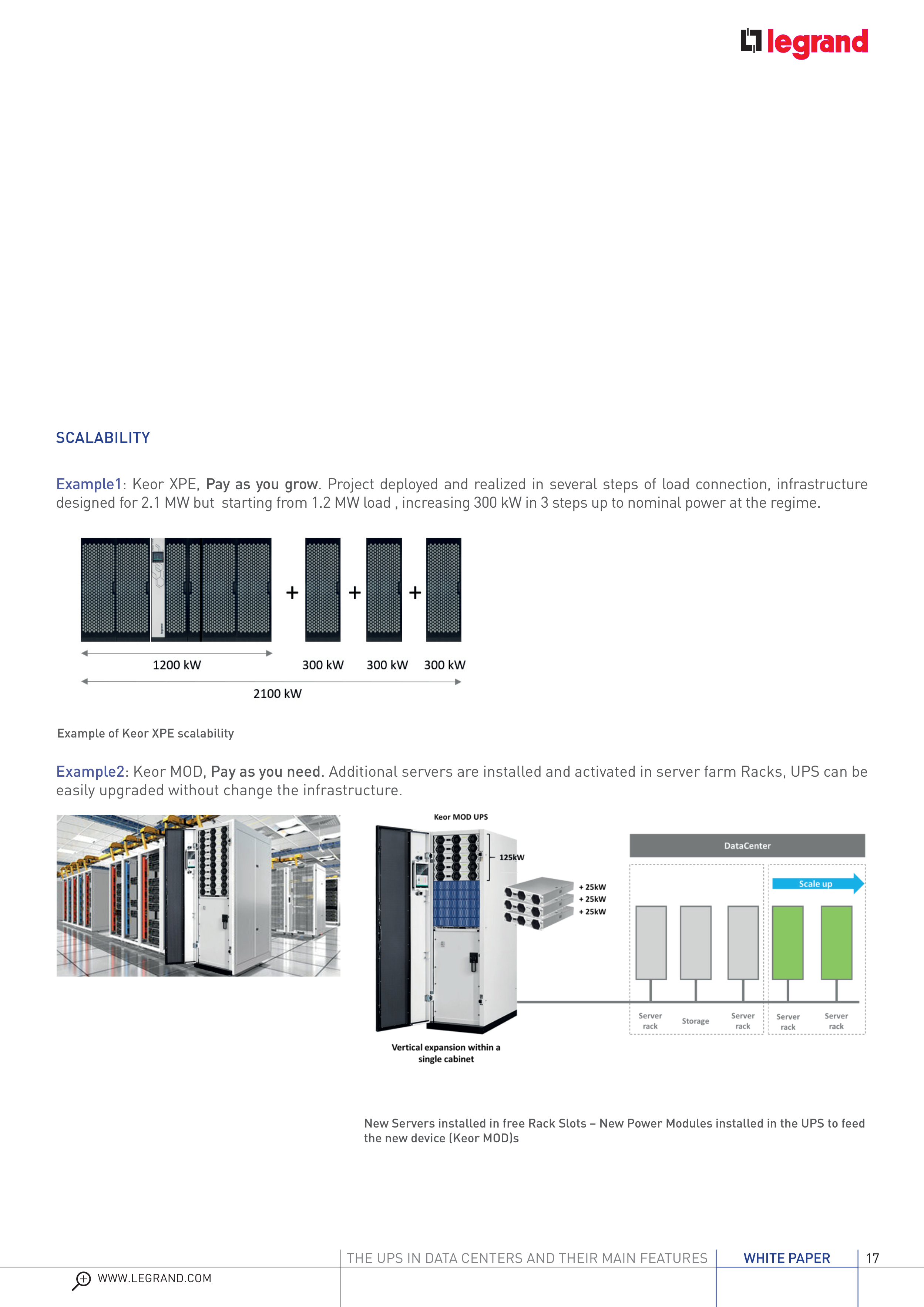

SCALABILITY
Example1: Keor XPE, Pay as you grow. Project deployed and realized in several steps of load connection, infrastructure
designed for 2.1 MW but starting from 1.2 MW load , increasing 300 kW in 3 steps up to nominal power at the regime.
Example2: Keor MOD, Pay as you need. Additional servers are installed and activated in server farm Racks, UPS can be
easily upgraded without change the infrastructure.
New Servers installed in free Rack Slots – New Power Modules installed in the UPS to feed
the new device (Keor MOD)s
Example of Keor XPE scalability
