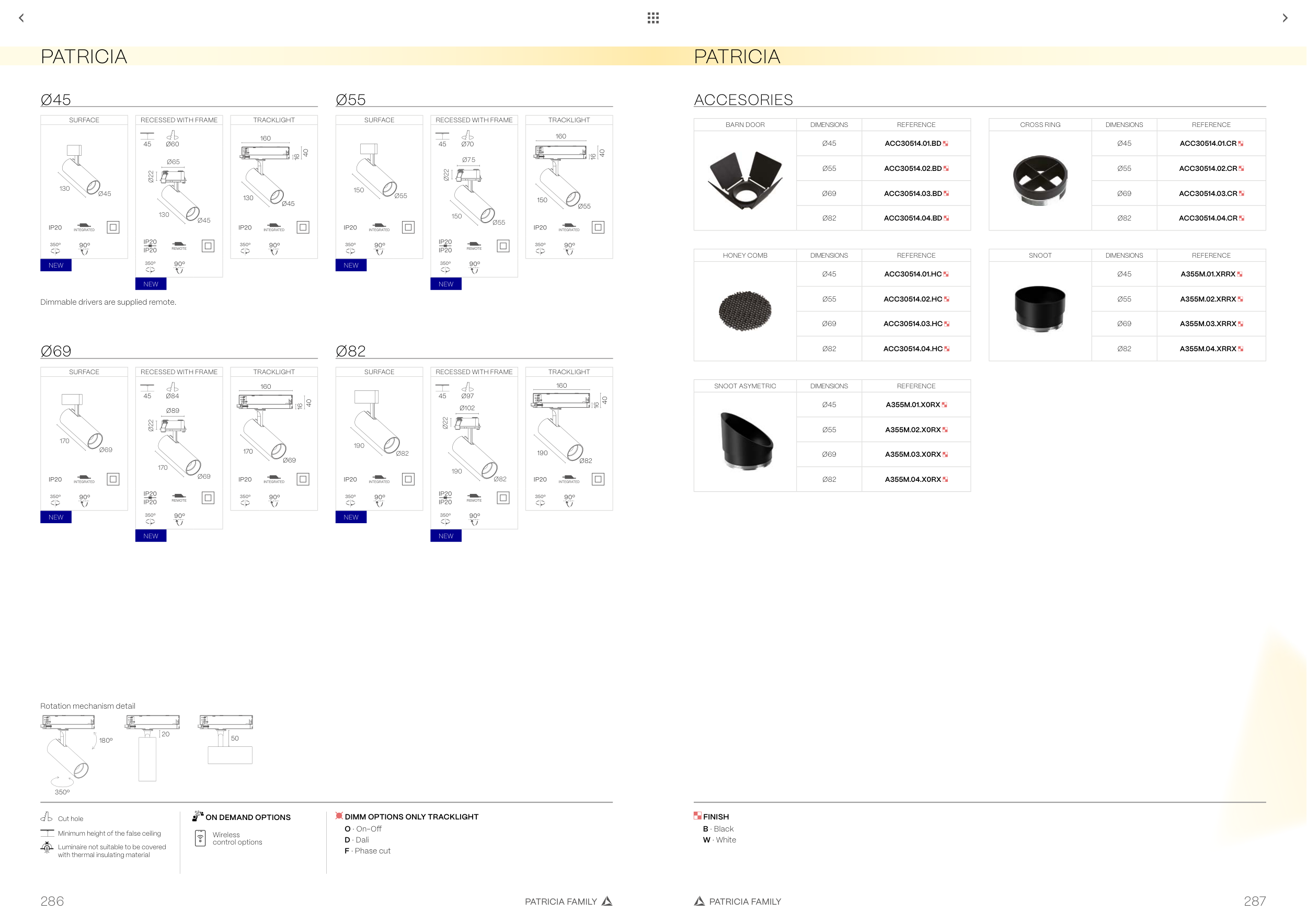

PATRICIA FAMILY
PATRICIA FAMILY
287
286
NEW
NEW
NEW
NEW
NEW
NEW
NEW
NEW
PATRICIA
Cut hole
Minimum height of the false ceiling
Luminaire not suitable to be covered
with thermal insulating material
Ø45
Ø69
Ø55
Ø82
TRACKLIGHT
130
16
40
160
Ø45
TRACKLIGHT
170
16
40
160
Ø69
TRACKLIGHT
150
16
40
160
Ø55
TRACKLIGHT
190
16
40
160
Ø82
RECESSED WITH FRAME
45
Ø60
130
Ø4
Ø65
Ø22
5
RECESSED WITH FRAME
45
Ø84
Ø22
170
Ø69
Ø89
RECESSED WITH FRAME
45
Ø70
Ø75
Ø22
150
Ø55
RECESSED WITH FRAME
45
Ø97
Ø22
190
Ø82
Ø102
Rotation mechanism detail
Dimmable drivers are supplied remote.
180º
350º
50
20
PATRICIA
FINISH
B · Black
W · White
ACCESORIES
BARN DOOR
DIMENSIONS
REFERENCE
Ø45
ACC30514.01.BD
Ø55
ACC30514.02.BD
Ø69
ACC30514.03.BD
Ø82
ACC30514.04.BD
HONEY COMB
DIMENSIONS
REFERENCE
Ø45
ACC30514.01.HC
Ø55
ACC30514.02.HC
Ø69
ACC30514.03.HC
Ø82
ACC30514.04.HC
CROSS RING
DIMENSIONS
REFERENCE
Ø45
ACC30514.01.CR
Ø55
ACC30514.02.CR
Ø69
ACC30514.03.CR
Ø82
ACC30514.04.CR
SNOOT
DIMENSIONS
REFERENCE
Ø45
A355M.01.XRRX
Ø55
A355M.02.XRRX
Ø69
A355M.03.XRRX
Ø82
A355M.04.XRRX
SNOOT ASYMETRIC
DIMENSIONS
REFERENCE
Ø45
A355M.01.X0RX
Ø55
A355M.02.X0RX
Ø69
A355M.03.X0RX
Ø82
A355M.04.X0RX
SURFACE
130
Ø45
SURFACE
170
Ø69
SURFACE
190
Ø82
SURFACE
150
Ø55
DIMM OPTIONS ONLY TRACKLIGHT
O · On-Off
D · Dali
F · Phase cut
ON DEMAND OPTIONS
Wireless
control options
