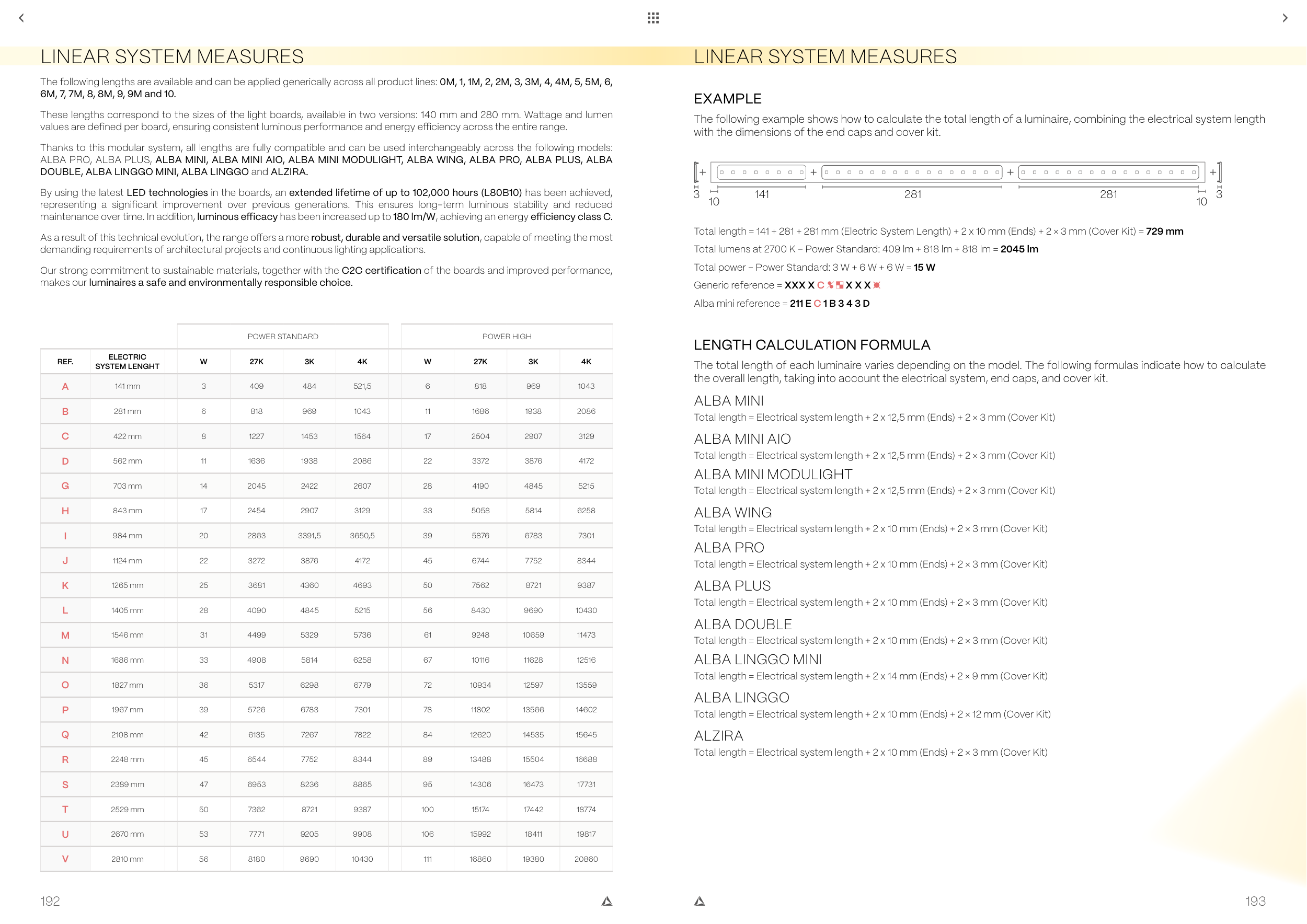

LINEAR SYSTEM MEASURES
LINEAR SYSTEM MEASURES
The following lengths are available and can be applied generically across all product lines: 0M, 1, 1M, 2, 2M, 3, 3M, 4, 4M, 5, 5M, 6,
6M, 7, 7M, 8, 8M, 9, 9M and 10.
These lengths correspond to the sizes of the light boards, available in two versions: 140 mm and 280 mm. Wattage and lumen
values are defined per board, ensuring consistent luminous performance and energy efficiency across the entire range.
Thanks to this modular system, all lengths are fully compatible and can be used interchangeably across the following models:
ALBA PRO, ALBA PLUS, ALBA MINI, ALBA MINI AIO, ALBA MINI MODULIGHT, ALBA WING, ALBA PRO, ALBA PLUS, ALBA
DOUBLE, ALBA LINGGO MINI, ALBA LINGGO and ALZIRA.
By using the latest LED technologies in the boards, an extended lifetime of up to 102,000 hours (L80B10) has been achieved,
representing a significant improvement over previous generations. This ensures long-term luminous stability and reduced
maintenance over time. In addition, luminous efficacy has been increased up to 180 lm/W, achieving an energy efficiency class C.
As a result of this technical evolution, the range offers a more robust, durable and versatile solution, capable of meeting the most
demanding requirements of architectural projects and continuous lighting applications.
Our strong commitment to sustainable materials, together with the C2C certification of the boards and improved performance,
makes our luminaires a safe and environmentally responsible choice.
POWER STANDARD
POWER HIGH
REF.
ELECTRIC
SYSTEM LENGHT
W
27K
3K
4K
W
27K
3K
4K
A
141 mm
3
409
484
521,5
6
818
969
1043
B
281 mm
6
818
969
1043
11
1686
1938
2086
C
422 mm
8
1227
1453
1564
17
2504
2907
3129
D
562 mm
11
1636
1938
2086
22
3372
3876
4172
G
703 mm
14
2045
2422
2607
28
4190
4845
5215
H
843 mm
17
2454
2907
3129
33
5058
5814
6258
I
984 mm
20
2863
3391,5
3650,5
39
5876
6783
7301
J
1124 mm
22
3272
3876
4172
45
6744
7752
8344
K
1265 mm
25
3681
4360
4693
50
7562
8721
9387
L
1405 mm
28
4090
4845
5215
56
8430
9690
10430
M
1546 mm
31
4499
5329
5736
61
9248
10659
11473
N
1686 mm
33
4908
5814
6258
67
10116
11628
12516
O
1827 mm
36
5317
6298
6779
72
10934
12597
13559
P
1967 mm
39
5726
6783
7301
78
11802
13566
14602
Q
2108 mm
42
6135
7267
7822
84
12620
14535
15645
R
2248 mm
45
6544
7752
8344
89
13488
15504
16688
S
2389 mm
47
6953
8236
8865
95
14306
16473
17731
T
2529 mm
50
7362
8721
9387
100
15174
17442
18774
U
2670 mm
53
7771
9205
9908
106
15992
18411
19817
V
2810 mm
56
8180
9690
10430
111
16860
19380
20860
EXAMPLE
The following example shows how to calculate the total length of a luminaire, combining the electrical system length
with the dimensions of the end caps and cover kit.
LENGTH CALCULATION FORMULA
The total length of each luminaire varies depending on the model. The following formulas indicate how to calculate
the overall length, taking into account the electrical system, end caps, and cover kit.
ALBA MINI
Total length = Electrical system length + 2 x 12,5 mm (Ends) + 2 × 3 mm (Cover Kit)
ALBA MINI AIO
Total length = Electrical system length + 2 x 12,5 mm (Ends) + 2 × 3 mm (Cover Kit)
ALBA MINI MODULIGHT
Total length = Electrical system length + 2 x 12,5 mm (Ends) + 2 × 3 mm (Cover Kit)
ALBA WING
Total length = Electrical system length + 2 x 10 mm (Ends) + 2 × 3 mm (Cover Kit)
ALBA PRO
Total length = Electrical system length + 2 x 10 mm (Ends) + 2 × 3 mm (Cover Kit)
ALBA PLUS
Total length = Electrical system length + 2 x 10 mm (Ends) + 2 × 3 mm (Cover Kit)
ALBA DOUBLE
Total length = Electrical system length + 2 x 10 mm (Ends) + 2 × 3 mm (Cover Kit)
ALBA LINGGO MINI
Total length = Electrical system length + 2 x 14 mm (Ends) + 2 × 9 mm (Cover Kit)
ALBA LINGGO
Total length = Electrical system length + 2 x 10 mm (Ends) + 2 × 12 mm (Cover Kit)
ALZIRA
Total length = Electrical system length + 2 x 10 mm (Ends) + 2 × 3 mm (Cover Kit)
Total length = 141 + 281 + 281 mm (Electric System Length) + 2 x 10 mm (Ends) + 2 × 3 mm (Cover Kit) = 729 mm
Total lumens at 2700 K – Power Standard: 409 lm + 818 lm + 818 lm = 2045 lm
Total power – Power Standard: 3 W + 6 W + 6 W = 15 W
Generic reference = XXX X C X X X
Alba mini reference = 211 E C 1 B 3 4 3 D
141
281
281
3
10
3
10
