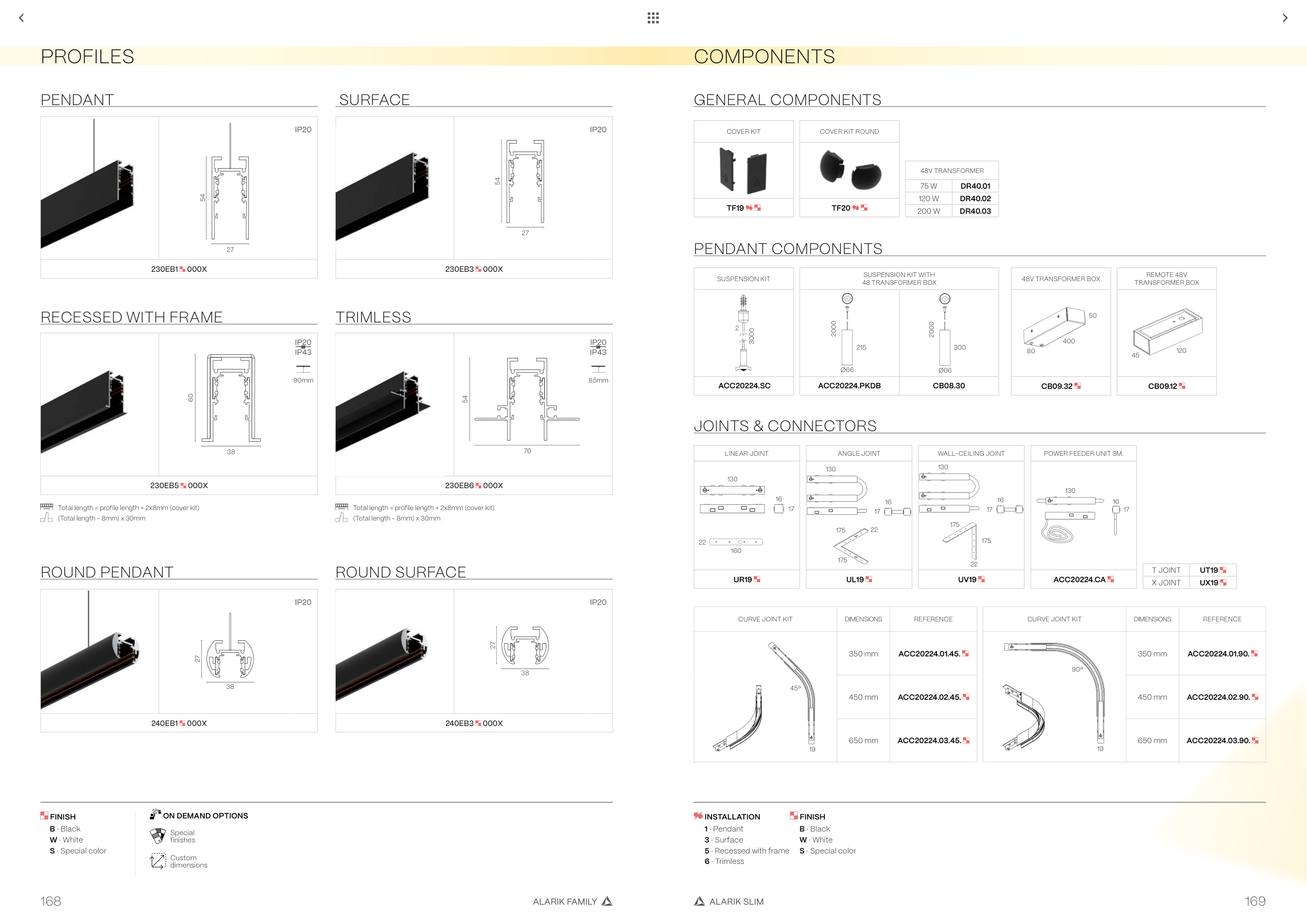

TECHNICAL INFORMATION
COMPONENTS
PROFILES
FINISH
B · Black
W · White
S · Special color
ROUND PENDANT
ROUND SURFACE
PENDANT
54
27
230EB1 000X
27
38
240EB1 000X
SURFACE
54
27
230EB3 000X
27
38
240EB3 000X
TRIMLESS
54
70
IP20
IP43
85mm
230EB6 000X
Total length = profile length + 2x8mm (cover kit)
(Total length - 8mm) x 30mm
RECESSED WITH FRAME
60
38
IP20
IP43
90mm
230EB5 000X
Total length = profile length + 2x8mm (cover kit)
(Total length - 8mm) x 30mm
ON DEMAND OPTIONS
Special
finishes
Custom
dimensions
COMPONENTS
INSTALLATION
1 · Pendant
3 · Surface
5 · Recessed with frame
6 · Trimless
FINISH
B · Black
W · White
S · Special color
LINEAR JOINT
130
16
17
160
22
UR19
ANGLE JOINT
130
16
17
175
175
22
UL19
WALL-CEILING JOINT
175
175
22
130
16
17
UV19
POWER FEEDER UNIT 3M.
130
16
17
ACC20224.CA
REMOTE 48V
TRANSFORMER BOX
120
45
CB09.12
SUSPENSION KIT WITH
48 TRANSFORMER BOX
2000
215
Ø66
2000
300
Ø66
ACC20224.PKDB
CB08.30
SUSPENSION KIT
3000
2
ACC20224.SC
48V TRANSFORMER BOX
400
80
50
CB09.32
PENDANT COMPONENTS
GENERAL COMPONENTS
JOINTS & CONNECTORS
CURVE JOINT KIT
DIMENSIONS
REFERENCE
45º
19
350 mm
ACC20224.01.45.
450 mm
ACC20224.02.45.
650 mm
ACC20224.03.45.
CURVE JOINT KIT
DIMENSIONS
REFERENCE
90º
19
350 mm
ACC20224.01.90.
450 mm
ACC20224.02.90.
650 mm
ACC20224.03.90.
COVER KIT
TF19
COVER KIT ROUND
TF20
T JOINT
UT19
X JOINT
UX19
48V TRANSFORMER
75 W
DR40.01
120 W
DR40.02
200 W
DR40.03
