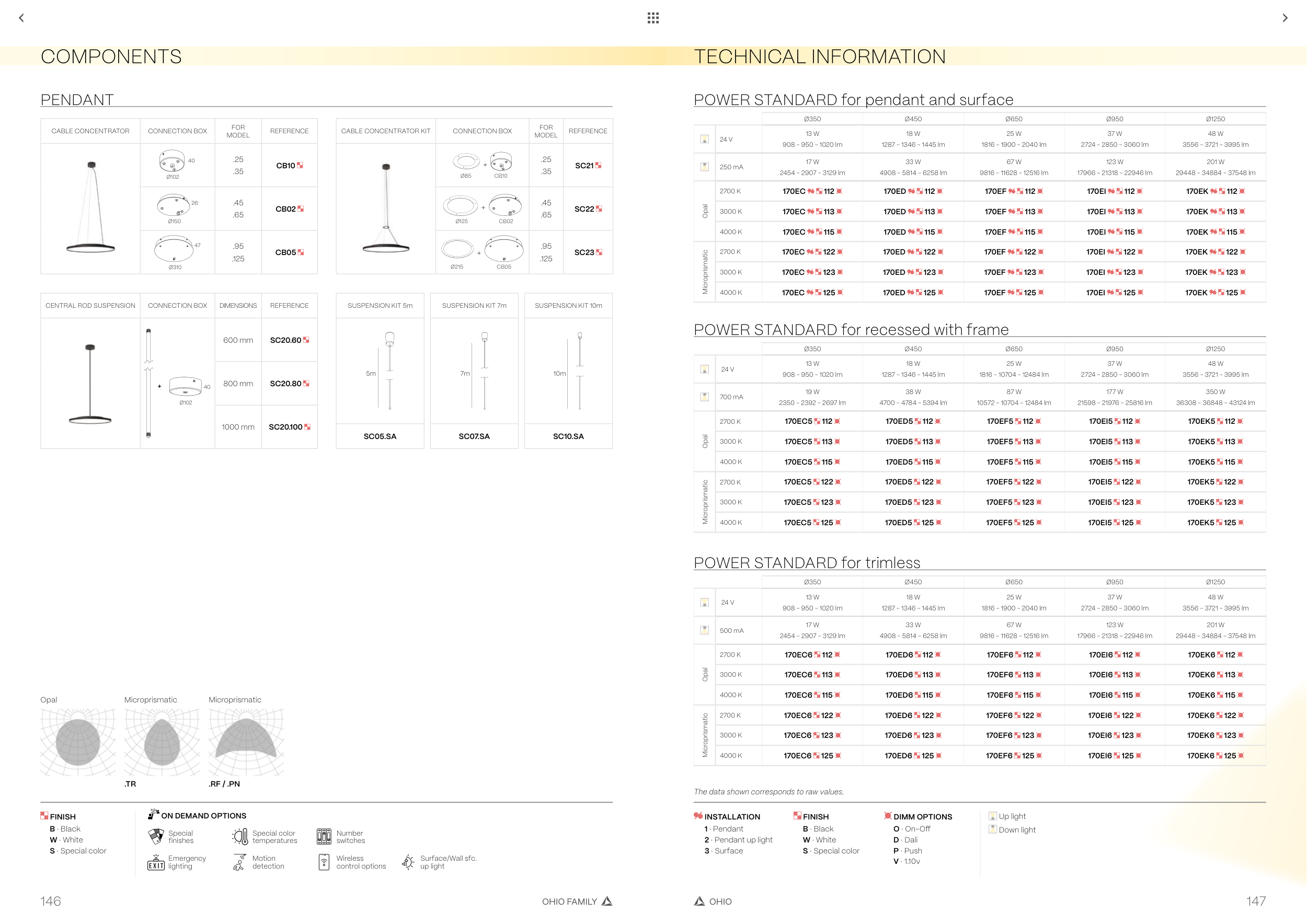

TECHNICAL INFORMATION
COMPONENTS
CABLE CONCENTRATOR
CONNECTION BOX
FOR
MODEL
REFERENCE
Ø102
40
.25
.35
CB10
Ø150
26
.45
.65
CB02
47
Ø310
.95
.125
CB05
CENTRAL ROD SUSPENSION
CONNECTION BOX
DIMENSIONS
REFERENCE
+
Ø102
40
600 mm
SC20.60
800 mm
SC20.80
1000 mm
SC20.100
CABLE CONCENTRATOR KIT
CONNECTION BOX
FOR
MODEL
REFERENCE
Ø85
+
CB10
.25
.35
SC21
Ø125
+
CB02
.45
.65
SC22
Ø215
+
CB05
.95
.125
SC23
SUSPENSION KIT 5m
5m
SC05.SA
SUSPENSION KIT 7m
7m
SC07.SA
SUSPENSION KIT 10m
10m
SC10.SA
PENDANT
ON DEMAND OPTIONS
Special
finishes
Special color
temperatures
Number
switches
Emergency
lighting
Motion
detection
Wireless
control options
Surface/Wall sfc.
up light
POWER STANDARD for pendant and surface
POWER STANDARD for recessed with frame
POWER STANDARD for trimless
Ø350
Ø450
Ø650
Ø950
Ø1250
24 V
13 W
908 - 950 - 1020 lm
18 W
1287 - 1346 - 1445 lm
25 W
1816 - 1900 - 2040 lm
37 W
2724 - 2850 - 3060 lm
48 W
3556 - 3721 - 3995 lm
250 mA
17 W
2454 - 2907 - 3129 lm
33 W
4908 - 5814 - 6258 lm
67 W
9816 - 11628 - 12516 lm
123 W
17966 - 21318 - 22946 lm
201 W
29448 - 34884 - 37548 lm
Opal
2700 K
170EC
112
170ED
112
170EF
112
170EI
112
170EK
112
3000 K
170EC
113
170ED
113
170EF
113
170EI
113
170EK
113
4000 K
170EC
115
170ED
115
170EF
115
170EI
115
170EK
115
Microprismatic
2700 K
170EC
122
170ED
122
170EF
122
170EI
122
170EK
122
3000 K
170EC
123
170ED
123
170EF
123
170EI
123
170EK
123
4000 K
170EC
125
170ED
125
170EF
125
170EI
125
170EK
125
Ø350
Ø450
Ø650
Ø950
Ø1250
24 V
13 W
908 - 950 - 1020 lm
18 W
1287 - 1346 - 1445 lm
25 W
1816 - 10704 - 12484 lm
37 W
2724 - 2850 - 3060 lm
48 W
3556 - 3721 - 3995 lm
700 mA
19 W
2350 - 2392 - 2697 lm
38 W
4700 - 4784 - 5394 lm
87 W
10572 - 10704 - 12484 lm
177 W
21598 - 21976 - 25816 lm
350 W
36308 - 36848 - 43124 lm
Opal
2700 K
170EC5 112
170ED5 112
170EF5 112
170EI5 112
170EK5 112
3000 K
170EC5 113
170ED5 113
170EF5 113
170EI5 113
170EK5 113
4000 K
170EC5 115
170ED5 115
170EF5 115
170EI5 115
170EK5 115
Microprismatic
2700 K
170EC5 122
170ED5 122
170EF5 122
170EI5 122
170EK5 122
3000 K
170EC5 123
170ED5 123
170EF5 123
170EI5 123
170EK5 123
4000 K
170EC5 125
170ED5 125
170EF5 125
170EI5 125
170EK5 125
Ø350
Ø450
Ø650
Ø950
Ø1250
24 V
13 W
908 - 950 - 1020 lm
18 W
1287 - 1346 - 1445 lm
25 W
1816 - 1900 - 2040 lm
37 W
2724 - 2850 - 3060 lm
48 W
3556 - 3721 - 3995 lm
500 mA
17 W
2454 - 2907 - 3129 lm
33 W
4908 - 5814 - 6258 lm
67 W
9816 - 11628 - 12516 lm
123 W
17966 - 21318 - 22946 lm
201 W
29448 - 34884 - 37548 lm
Opal
2700 K
170EC6 112
170ED6 112
170EF6 112
170EI6 112
170EK6 112
3000 K
170EC6 113
170ED6 113
170EF6 113
170EI6 113
170EK6 113
4000 K
170EC6 115
170ED6 115
170EF6 115
170EI6 115
170EK6 115
Microprismatic
2700 K
170EC6 122
170ED6 122
170EF6 122
170EI6 122
170EK6 122
3000 K
170EC6 123
170ED6 123
170EF6 123
170EI6 123
170EK6 123
4000 K
170EC6 125
170ED6 125
170EF6 125
170EI6 125
170EK6 125
INSTALLATION
1 · Pendant
2 · Pendant up light
3 · Surface
FINISH
B · Black
W · White
S · Special color
FINISH
B · Black
W · White
S · Special color
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
Up light
Down light
Opal
Microprismatic
.TR
.RF / .PN
The data shown corresponds to raw values.
Microprismatic
