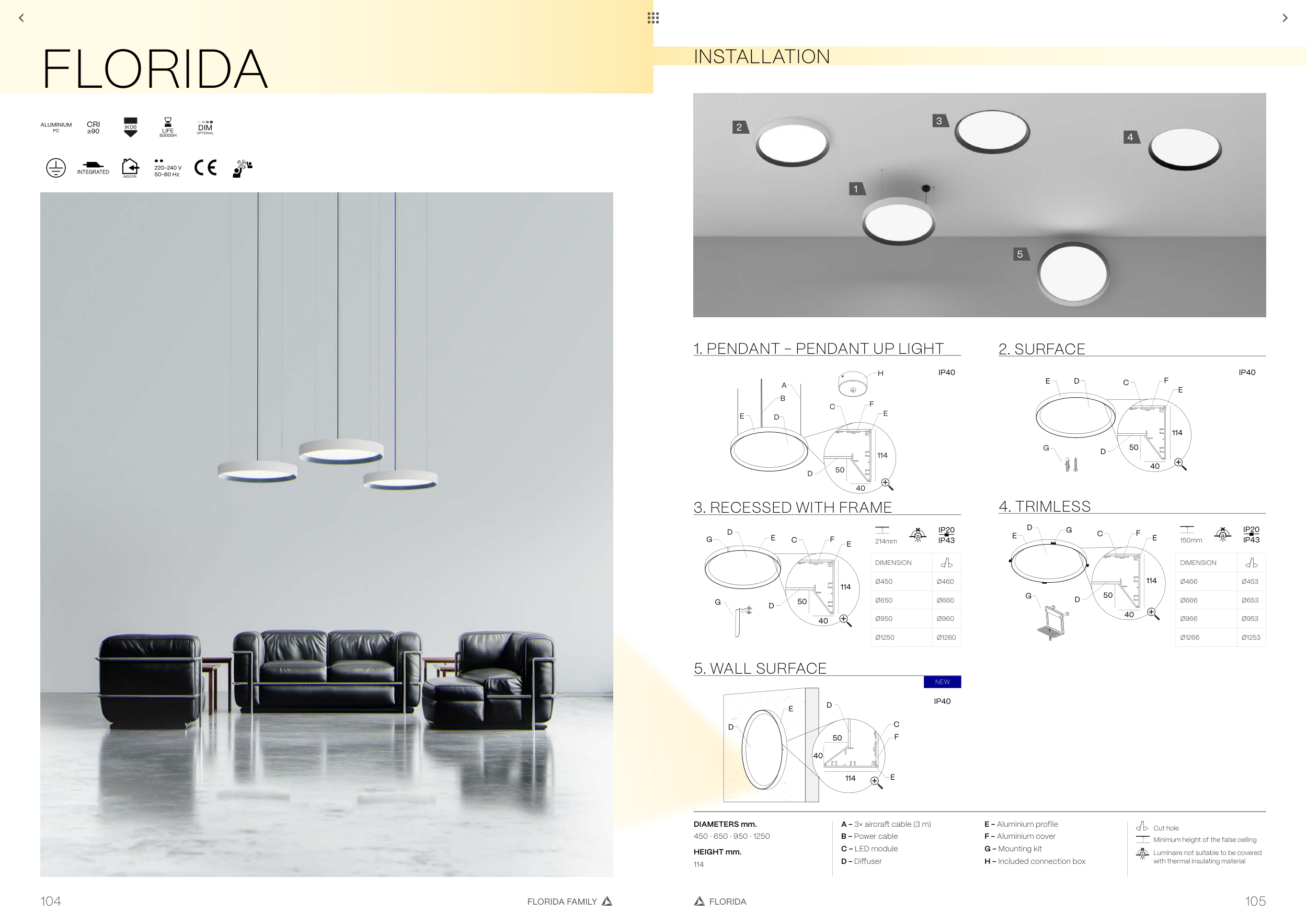

FLORIDA
FLORIDA FAMILY
105
104
NEW
INSTALLATION
FLORIDA
4. TRIMLESS
D
G
G
E
C
40
50
114
D
F
E
150mm
IP20
IP43
DIMENSION
Ø466
Ø453
Ø666
Ø653
Ø966
Ø953
Ø1266
Ø1253
3. RECESSED WITH FRAME
G
D
E
G
C
40
50
114
D
F
E
214mm
IP20
IP43
DIMENSION
Ø450
Ø460
Ø650
Ø660
Ø950
Ø960
Ø1250
Ø1260
5. WALL SURFACE
D
E
E
40
50
114
F
C
D
2. SURFACE
G
C
40
50
114
D
D
E
F
E
1. PENDANT - PENDANT UP LIGHT
H
C
40
50
114
D
E
F
E
A
B
D
Cut hole
Minimum height of the false ceiling
Luminaire not suitable to be covered
with thermal insulating material
DIAMETERS mm.
450 · 650 · 950 · 1250
HEIGHT mm.
114
A - 3× aircraft cable (3 m)
B - Power cable
C - LED module
D - Diffuser
E - Aluminium profile
F - Aluminium cover
G - Mounting kit
H - Included connection box
1
2
3
4
5
