ALBERTA FAMILY
ALBERTA SOFT LOOP
59
58
NEW

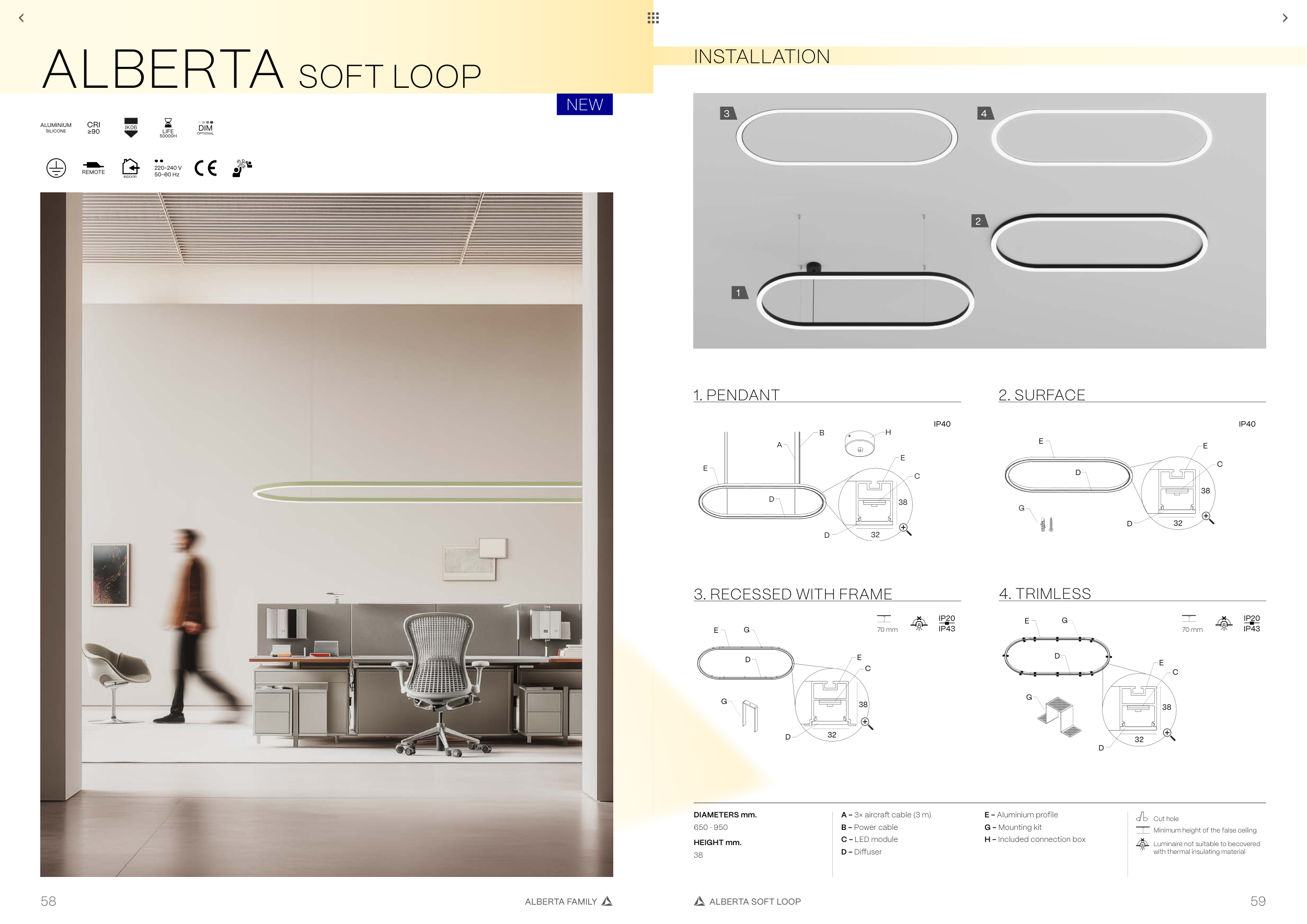

INSTALLATION
ALBERTA SOFT LOOP
2. SURFACE
G
D
E
D
C
E
38
32
1. PENDANT
H
A
B
D
E
D
C
E
38
32
3. RECESSED WITH FRAME
G
G
D
C
E
38
32
D
E
70 mm
IP20
IP43
A - 3× aircraft cable (3 m)
B - Power cable
C - LED module
D - Diffuser
E - Aluminium profile
G - Mounting kit
H - Included connection box
DIAMETERS mm.
650 · 950
HEIGHT mm.
38
Cut hole
Minimum height of the false ceiling
Luminaire not suitable to becovered
with thermal insulating material
4. TRIMLESS
G
D
C
E
38
32
G
D
E
70 mm
IP20
IP43
1
2
3
4
