40
Ø102
CB03
25,5
Ø130
Ø150
CB02
46
Ø130
Ø150
CB07
40
Ø102
CB10
120
45
30
CB09.12
Ø66
300
CB08.30
380
Ø66
CB08.38
320
80
50
CB06.32
30
320
45
CB09.32
30
400
80
CB06.40
Ø40
418
CB04.OP
30
400
45
CB09.40
46,5
Ø225
Ø245
CB13
33,5
Ø395
Ø415
CB12
46,5
Ø290
Ø310
CB05

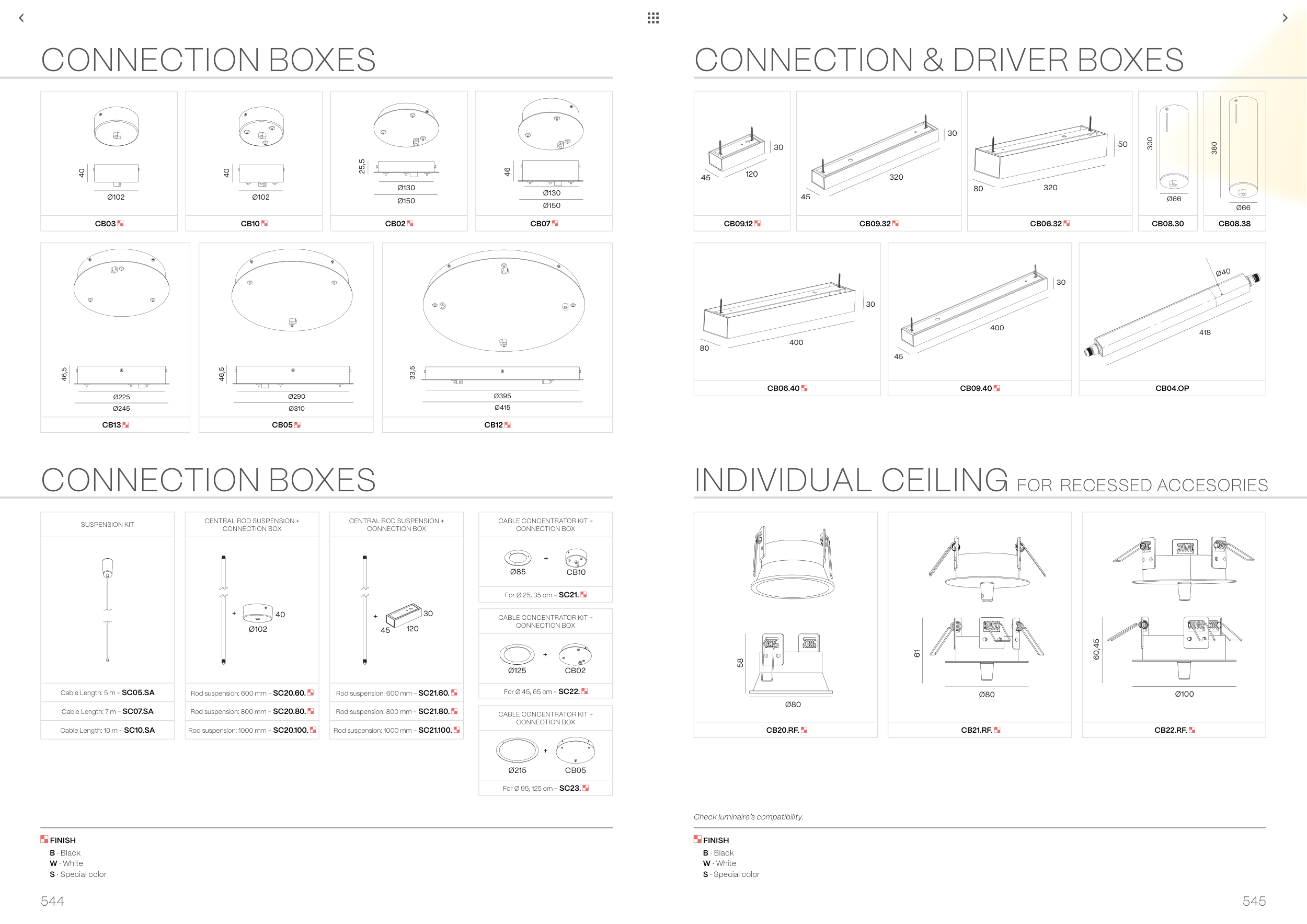

CONNECTION BOXES
CONNECTION BOXES
INDIVIDUAL CEILING FOR RECESSED ACCESORIES
CONNECTION & DRIVER BOXES
CENTRAL ROD SUSPENSION +
CONNECTION BOX
+
Ø102
40
Rod suspension: 600 mm – SC20.60.
Rod suspension: 800 mm – SC20.80.
Rod suspension: 1000 mm – SC20.100.
SUSPENSION KIT
Cable Length: 5 m – SC05.SA
Cable Length: 7 m – SC07.SA
Cable Length: 10 m – SC10.SA
CENTRAL ROD SUSPENSION +
CONNECTION BOX
+
120
45
30
Rod suspension: 600 mm – SC21.60.
Rod suspension: 800 mm – SC21.80.
Rod suspension: 1000 mm – SC21.100.
Ø80
58
CB20.RF.
Ø80
61
CB21.RF.
60,45
Ø100
CB22.RF.
CABLE CONCENTRATOR KIT +
CONNECTION BOX
CB10
Ø85
+
For Ø 25, 35 cm - SC21.
CABLE CONCENTRATOR KIT +
CONNECTION BOX
CB02
Ø125
+
For Ø 45, 65 cm - SC22.
CABLE CONCENTRATOR KIT +
CONNECTION BOX
CB05
Ø215
+
For Ø 95, 125 cm - SC23.
FINISH
B · Black
W · White
S · Special color
FINISH
B · Black
W · White
S · Special color
Check luminaire’s compatibility.
545
544
