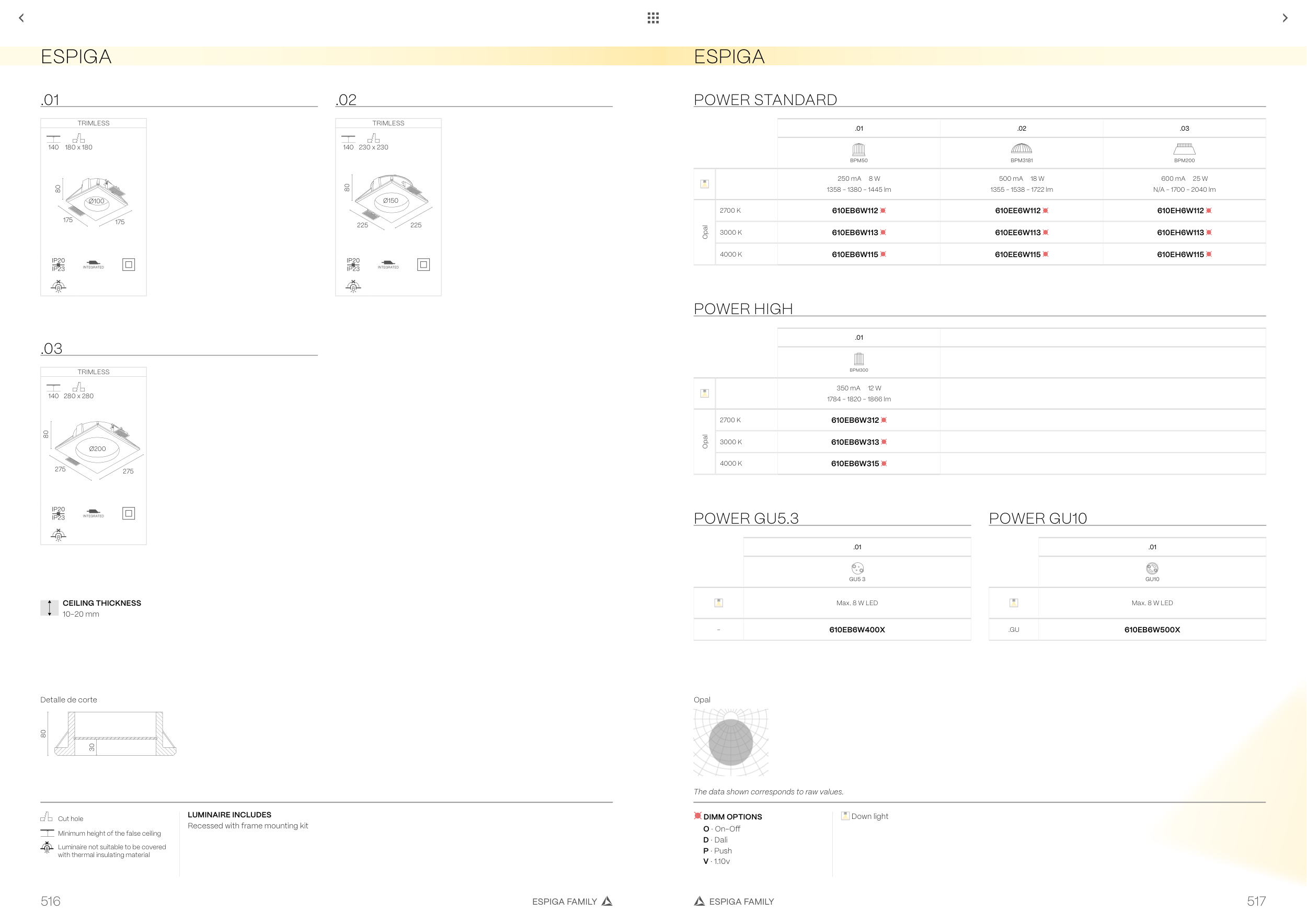

ESPIGA FAMILY
ESPIGA FAMILY
517
516
ESPIGA
.01
.02
.03
Detalle de corte
Opal
LUMINAIRE INCLUDES
Recessed with frame mounting kit
CEILING THICKNESS
10-20 mm
TRIMLESS
140
180 x 180
80
175
175
Ø100
TRIMLESS
140 230 x 230
80
225
225
Ø150
TRIMLESS
140 280 x 280
80
275
275
Ø200
30
80
Cut hole
Minimum height of the false ceiling
Luminaire not suitable to be covered
with thermal insulating material
ESPIGA
POWER STANDARD
POWER HIGH
POWER GU5.3
POWER GU10
.01
.02
.03
250 mA 8 W
1358 - 1380 - 1445 lm
500 mA 18 W
1355 - 1538 - 1722 lm
600 mA 25 W
N/A - 1700 - 2040 lm
Opal
2700 K
610EB6W112
610EE6W112
610EH6W112
3000 K
610EB6W113
610EE6W113
610EH6W113
4000 K
610EB6W115
610EE6W115
610EH6W115
.01
350 mA 12 W
1784 - 1820 - 1866 lm
Opal
2700 K
610EB6W312
3000 K
610EB6W313
4000 K
610EB6W315
.01
Max. 8 W LED
-
610EB6W400X
.01
Max. 8 W LED
.GU
610EB6W500X
Down light
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
The data shown corresponds to raw values.
