VEGA FAMILY
VEGA FAMILY
509
508

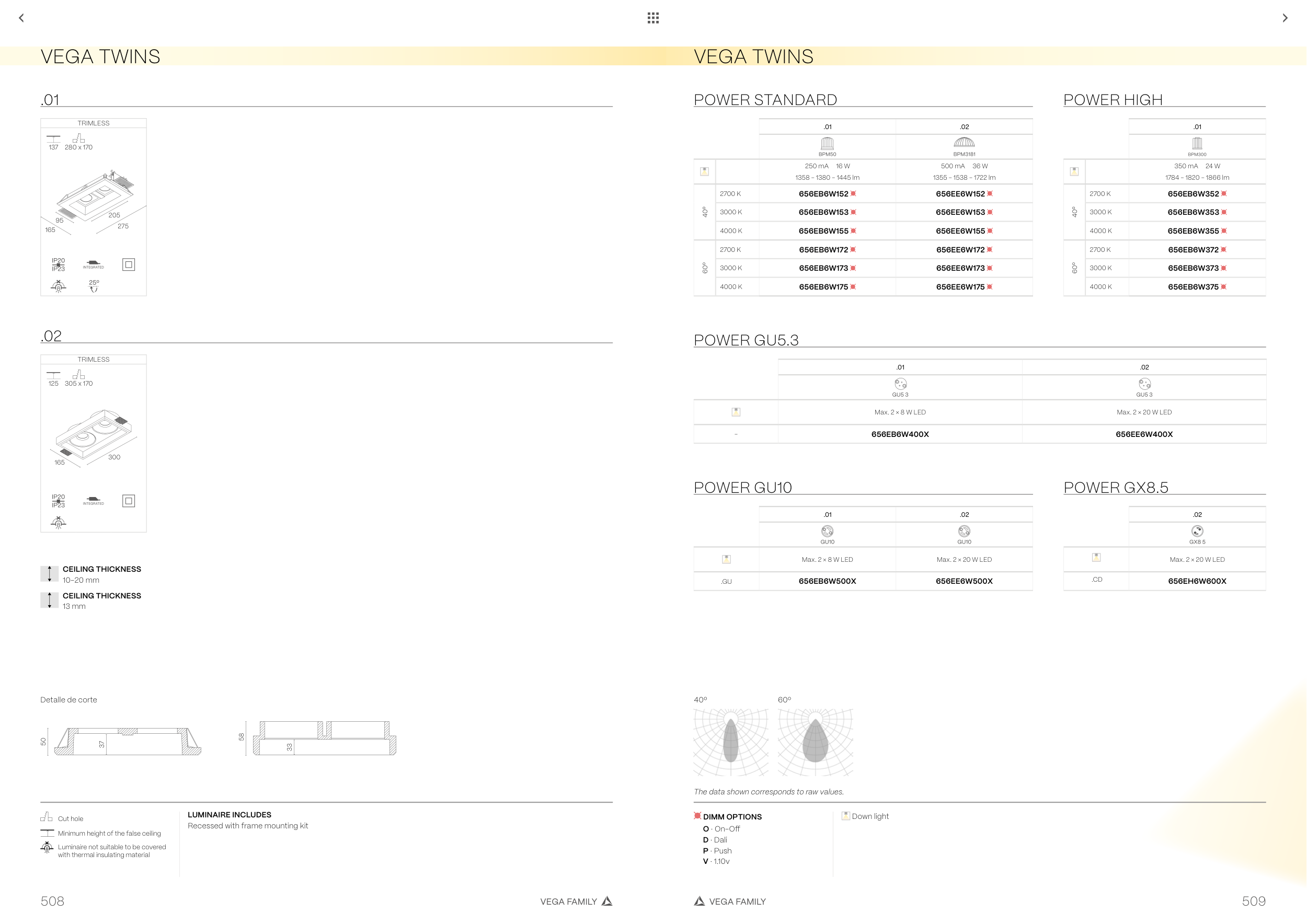

VEGA TWINS
Detalle de corte
LUMINAIRE INCLUDES
Recessed with frame mounting kit
37
33
50
58
Cut hole
Minimum height of the false ceiling
Luminaire not suitable to be covered
with thermal insulating material
.01
.02
TRIMLESS
137
280 x 170
275
205
165
95
TRIMLESS
125
305 x 170
300
165
CEILING THICKNESS
13 mm
CEILING THICKNESS
10-20 mm
VEGA TWINS
POWER GU5.3
.01
.02
Max. 2 × 8 W LED
Max. 2 × 20 W LED
-
656EB6W400X
656EE6W400X
.01
.02
Max. 2 × 8 W LED
Max. 2 × 20 W LED
.GU
656EB6W500X
656EE6W500X
POWER GU10
POWER STANDARD
.01
.02
250 mA 16 W
1358 - 1380 - 1445 lm
500 mA 36 W
1355 - 1538 - 1722 lm
40º
2700 K
656EB6W152
656EE6W152
3000 K
656EB6W153
656EE6W153
4000 K
656EB6W155
656EE6W155
60º
2700 K
656EB6W172
656EE6W172
3000 K
656EB6W173
656EE6W173
4000 K
656EB6W175
656EE6W175
.02
Max. 2 × 20 W LED
.CD
656EH6W600X
POWER HIGH
POWER GX8.5
.01
350 mA 24 W
1784 - 1820 - 1866 lm
40º
2700 K
656EB6W352
3000 K
656EB6W353
4000 K
656EB6W355
60º
2700 K
656EB6W372
3000 K
656EB6W373
4000 K
656EB6W375
Down light
40º
60º
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
The data shown corresponds to raw values.
