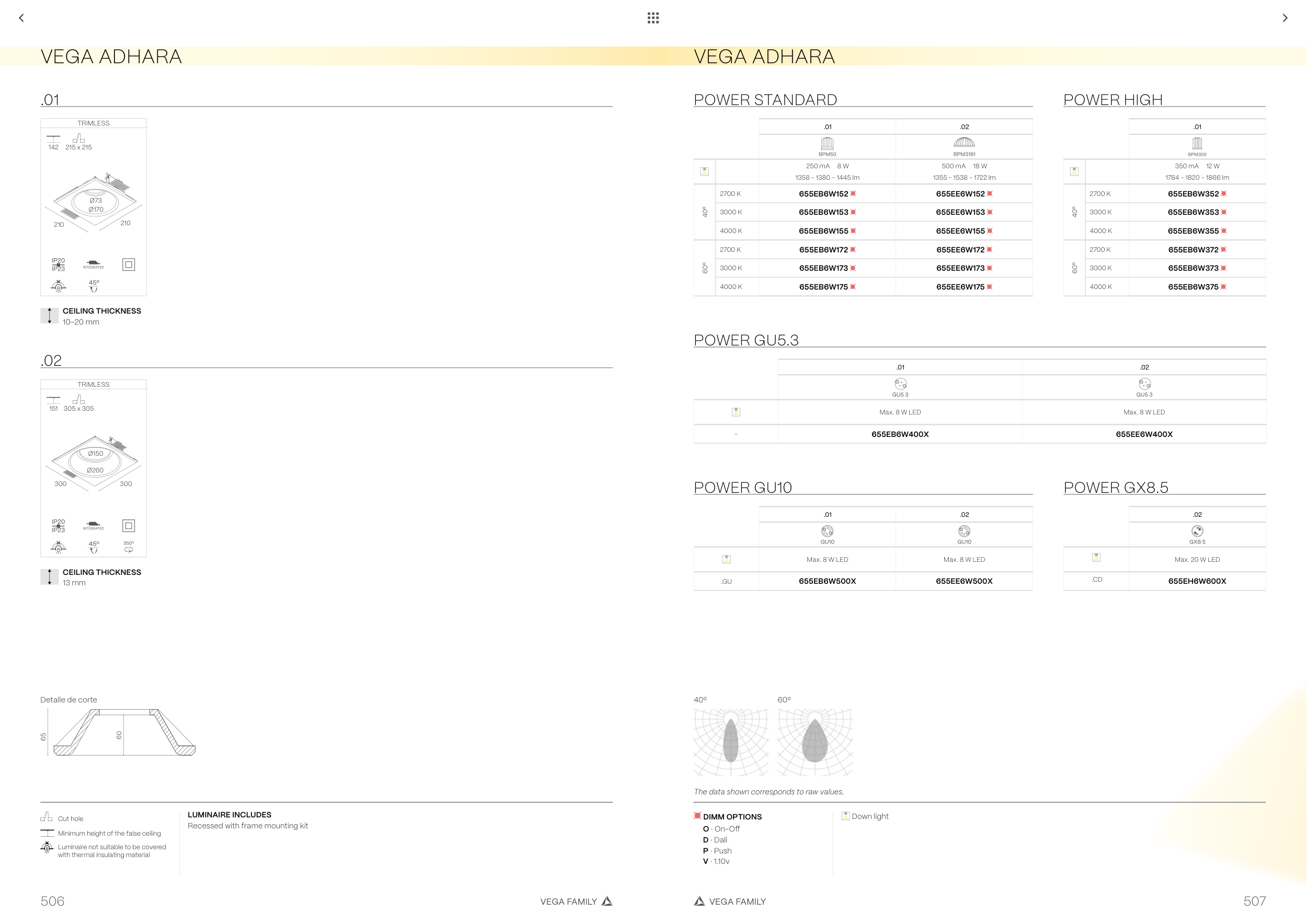

VEGA ADHARA
Detalle de corte
LUMINAIRE INCLUDES
Recessed with frame mounting kit
60
65
Cut hole
Minimum height of the false ceiling
Luminaire not suitable to be covered
with thermal insulating material
.01
.02
CEILING THICKNESS
13 mm
CEILING THICKNESS
10-20 mm
TRIMLESS
142
215 x 215
210
210
Ø73
Ø170
TRIMLESS
151
305 x 305
300
300
Ø150
Ø260
VEGA ADHARA
POWER GU5.3
.01
.02
Max. 8 W LED
Max. 8 W LED
-
655EB6W400X
655EE6W400X
.01
.02
Max. 8 W LED
Max. 8 W LED
.GU
655EB6W500X
655EE6W500X
POWER GU10
Down light
POWER STANDARD
.01
.02
250 mA 8 W
1358 - 1380 - 1445 lm
500 mA 18 W
1355 - 1538 - 1722 lm
40º
2700 K
655EB6W152
655EE6W152
3000 K
655EB6W153
655EE6W153
4000 K
655EB6W155
655EE6W155
60º
2700 K
655EB6W172
655EE6W172
3000 K
655EB6W173
655EE6W173
4000 K
655EB6W175
655EE6W175
.02
Max. 20 W LED
.CD
655EH6W600X
POWER HIGH
POWER GX8.5
.01
350 mA 12 W
1784 - 1820 - 1866 lm
40º
2700 K
655EB6W352
3000 K
655EB6W353
4000 K
655EB6W355
60º
2700 K
655EB6W372
3000 K
655EB6W373
4000 K
655EB6W375
40º
60º
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
The data shown corresponds to raw values.
