ZENIT FAMILY
ZENIT FAMILY
501
500

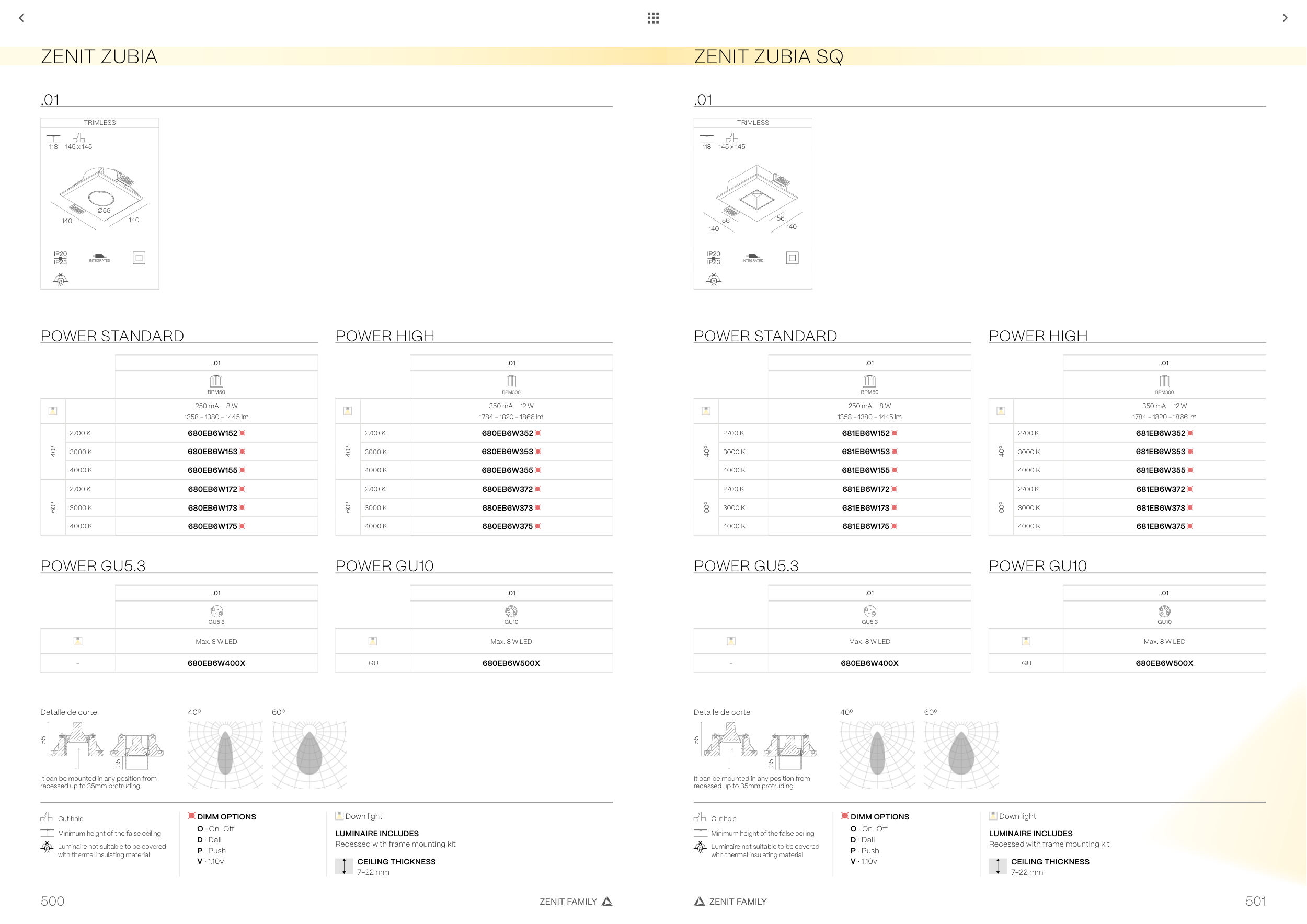

ZENIT ZUBIA
.01
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
Down light
55
35
Detalle de corte
It can be mounted in any position from
recessed up to 35mm protruding.
LUMINAIRE INCLUDES
Recessed with frame mounting kit
Cut hole
Minimum height of the false ceiling
Luminaire not suitable to be covered
with thermal insulating material
TRIMLESS
118
145 x 145
140
140
Ø56
CEILING THICKNESS
7-22 mm
POWER GU5.3
.01
Max. 8 W LED
-
680EB6W400X
.01
Max. 8 W LED
.GU
680EB6W500X
POWER GU10
POWER STANDARD
.01
250 mA 8 W
1358 - 1380 - 1445 lm
40º
2700 K
680EB6W152
3000 K
680EB6W153
4000 K
680EB6W155
60º
2700 K
680EB6W172
3000 K
680EB6W173
4000 K
680EB6W175
POWER HIGH
.01
350 mA 12 W
1784 - 1820 - 1866 lm
40º
2700 K
680EB6W352
3000 K
680EB6W353
4000 K
680EB6W355
60º
2700 K
680EB6W372
3000 K
680EB6W373
4000 K
680EB6W375
.01
ZENIT ZUBIA SQ
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
Down light
55
35
Detalle de corte
It can be mounted in any position from
recessed up to 35mm protruding.
LUMINAIRE INCLUDES
Recessed with frame mounting kit
Cut hole
Minimum height of the false ceiling
Luminaire not suitable to be covered
with thermal insulating material
TRIMLESS
118
145 x 145
140
140
56
56
CEILING THICKNESS
7-22 mm
POWER GU5.3
.01
Max. 8 W LED
-
680EB6W400X
.01
Max. 8 W LED
.GU
680EB6W500X
POWER GU10
POWER STANDARD
.01
250 mA 8 W
1358 - 1380 - 1445 lm
40º
2700 K
681EB6W152
3000 K
681EB6W153
4000 K
681EB6W155
60º
2700 K
681EB6W172
3000 K
681EB6W173
4000 K
681EB6W175
POWER HIGH
.01
350 mA 12 W
1784 - 1820 - 1866 lm
40º
2700 K
681EB6W352
3000 K
681EB6W353
4000 K
681EB6W355
60º
2700 K
681EB6W372
3000 K
681EB6W373
4000 K
681EB6W375
60º
60º
40º
40º
