ZENIT FAMILY
ZENIT FAMILY
493
492
.01

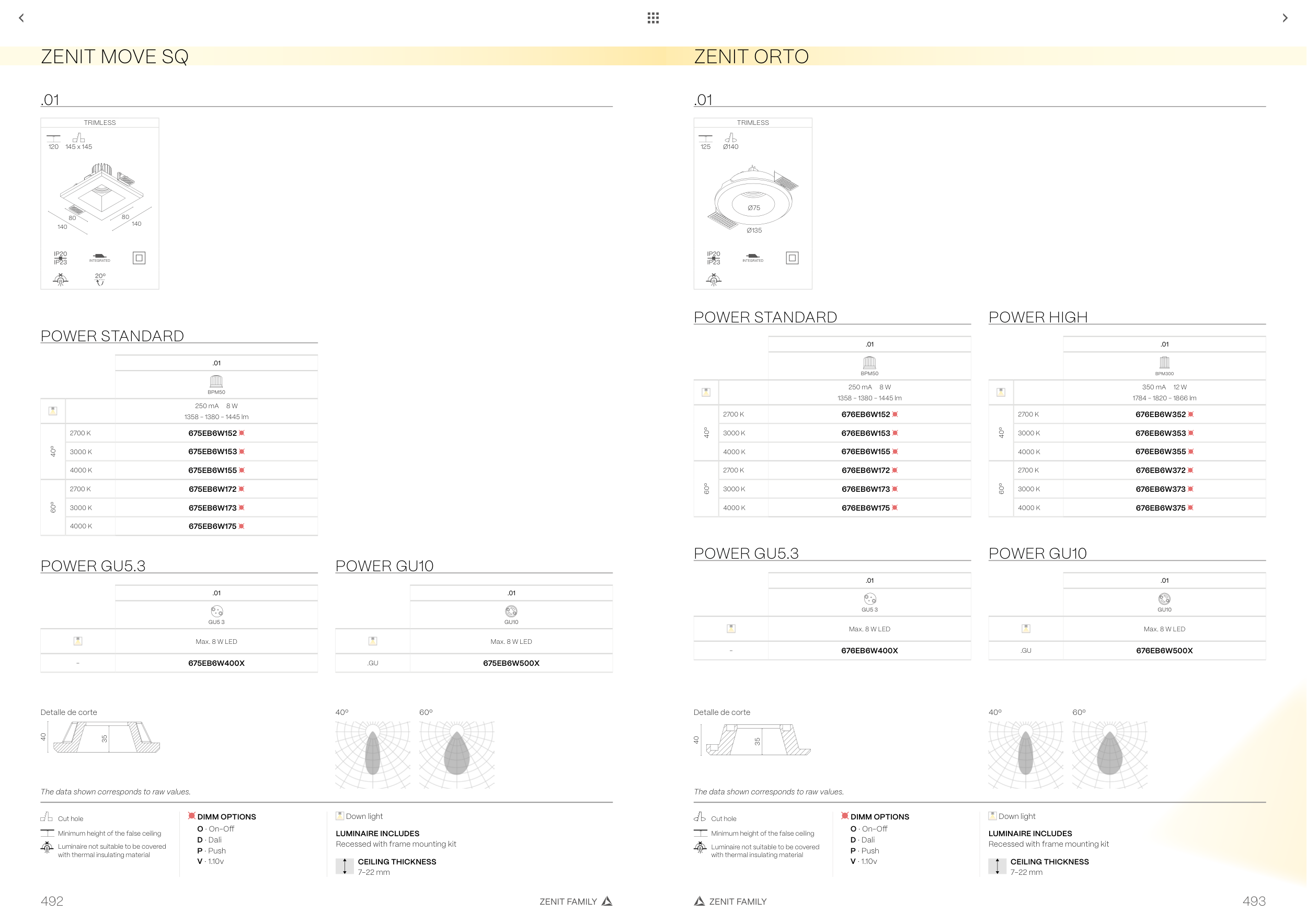

ZENIT MOVE SQ
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
Down light
40
35
Detalle de corte
LUMINAIRE INCLUDES
Recessed with frame mounting kit
Cut hole
Minimum height of the false ceiling
Luminaire not suitable to be covered
with thermal insulating material
TRIMLESS
120
145 x 145
140
80
80
140
CEILING THICKNESS
7-22 mm
POWER GU5.3
.01
Max. 8 W LED
-
675EB6W400X
.01
Max. 8 W LED
.GU
675EB6W500X
POWER GU10
POWER STANDARD
.01
250 mA 8 W
1358 - 1380 - 1445 lm
40º
2700 K
675EB6W152
3000 K
675EB6W153
4000 K
675EB6W155
60º
2700 K
675EB6W172
3000 K
675EB6W173
4000 K
675EB6W175
60º
40º
The data shown corresponds to raw values.
ZENIT ORTO
.01
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
Down light
40
35
Detalle de corte
LUMINAIRE INCLUDES
Recessed with frame mounting kit
TRIMLESS
125
Ø140
Ø135
Ø75
CEILING THICKNESS
7-22 mm
POWER GU5.3
.01
Max. 8 W LED
-
676EB6W400X
.01
Max. 8 W LED
.GU
676EB6W500X
POWER GU10
POWER STANDARD
.01
250 mA 8 W
1358 - 1380 - 1445 lm
40º
2700 K
676EB6W152
3000 K
676EB6W153
4000 K
676EB6W155
60º
2700 K
676EB6W172
3000 K
676EB6W173
4000 K
676EB6W175
POWER HIGH
.01
350 mA 12 W
1784 - 1820 - 1866 lm
40º
2700 K
676EB6W352
3000 K
676EB6W353
4000 K
676EB6W355
60º
2700 K
676EB6W372
3000 K
676EB6W373
4000 K
676EB6W375
Cut hole
Minimum height of the false ceiling
Luminaire not suitable to be covered
with thermal insulating material
60º
40º
The data shown corresponds to raw values.
