KLIMT FAMILY
KLIMT FAMILY
293
292
NEW
NEW
NEW
NEW
NEW
NEW

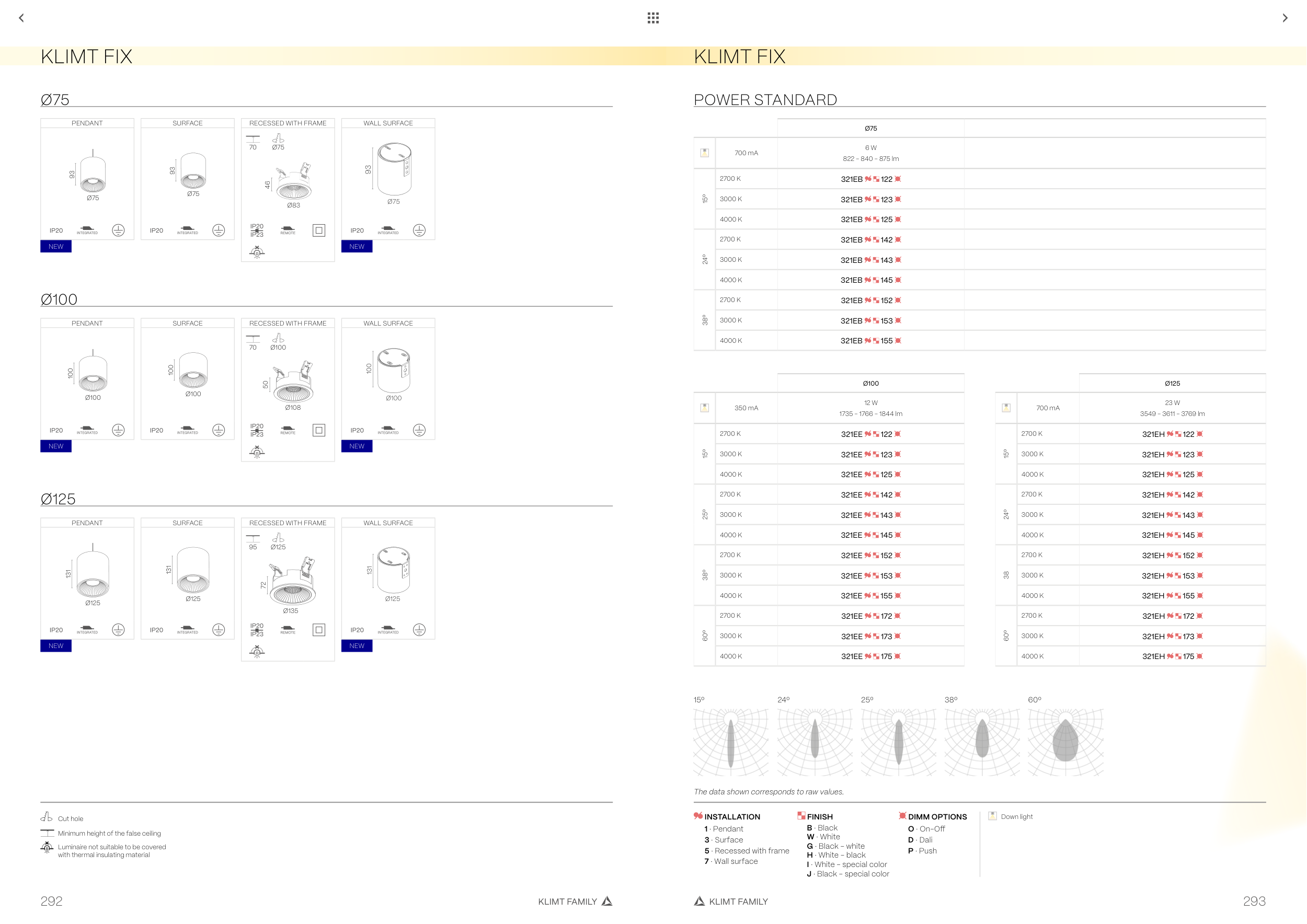

KLIMT FIX
Cut hole
Minimum height of the false ceiling
Luminaire not suitable to be covered
with thermal insulating material
Ø75
Ø100
Ø125
PENDANT
93
Ø75
PENDANT
100
Ø100
PENDANT
131
Ø125
SURFACE
93
Ø75
WALL SURFACE
Ø75
93
SURFACE
100
Ø100
WALL SURFACE
Ø100
100
SURFACE
131
Ø125
WALL SURFACE
Ø125
131
RECESSED WITH FRAME
70
Ø75
46
Ø83
RECESSED WITH FRAME
70
Ø100
50
Ø108
RECESSED WITH FRAME
95
Ø125
72
Ø135
KLIMT FIX
POWER STANDARD
INSTALLATION
1 · Pendant
3 · Surface
5 · Recessed with frame
7 · Wall surface
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
Down light
Ø75
700 mA
6 W
822 - 840 - 875 lm
15º
2700 K
321EB 122
3000 K
321EB 123
4000 K
321EB 125
24º
2700 K
321EB 142
3000 K
321EB 143
4000 K
321EB 145
38º
2700 K
321EB 152
3000 K
321EB 153
4000 K
321EB 155
Ø125
700 mA
23 W
3549 - 3611 - 3769 lm
15º
2700 K
321EH 122
3000 K
321EH 123
4000 K
321EH 125
24º
2700 K
321EH 142
3000 K
321EH 143
4000 K
321EH 145
38
2700 K
321EH 152
3000 K
321EH 153
4000 K
321EH 155
60º
2700 K
321EH 172
3000 K
321EH 173
4000 K
321EH 175
Ø100
350 mA
12 W
1735 - 1766 - 1844 lm
15º
2700 K
321EE 122
3000 K
321EE 123
4000 K
321EE 125
25º
2700 K
321EE 142
3000 K
321EE 143
4000 K
321EE 145
38º
2700 K
321EE 152
3000 K
321EE 153
4000 K
321EE 155
60º
2700 K
321EE 172
3000 K
321EE 173
4000 K
321EE 175
15º
24º
25º
60º
The data shown corresponds to raw values.
38º
FINISH
B · Black
W · White
G · Black - white
H · White - black
I · White - special color
J · Black - special color
