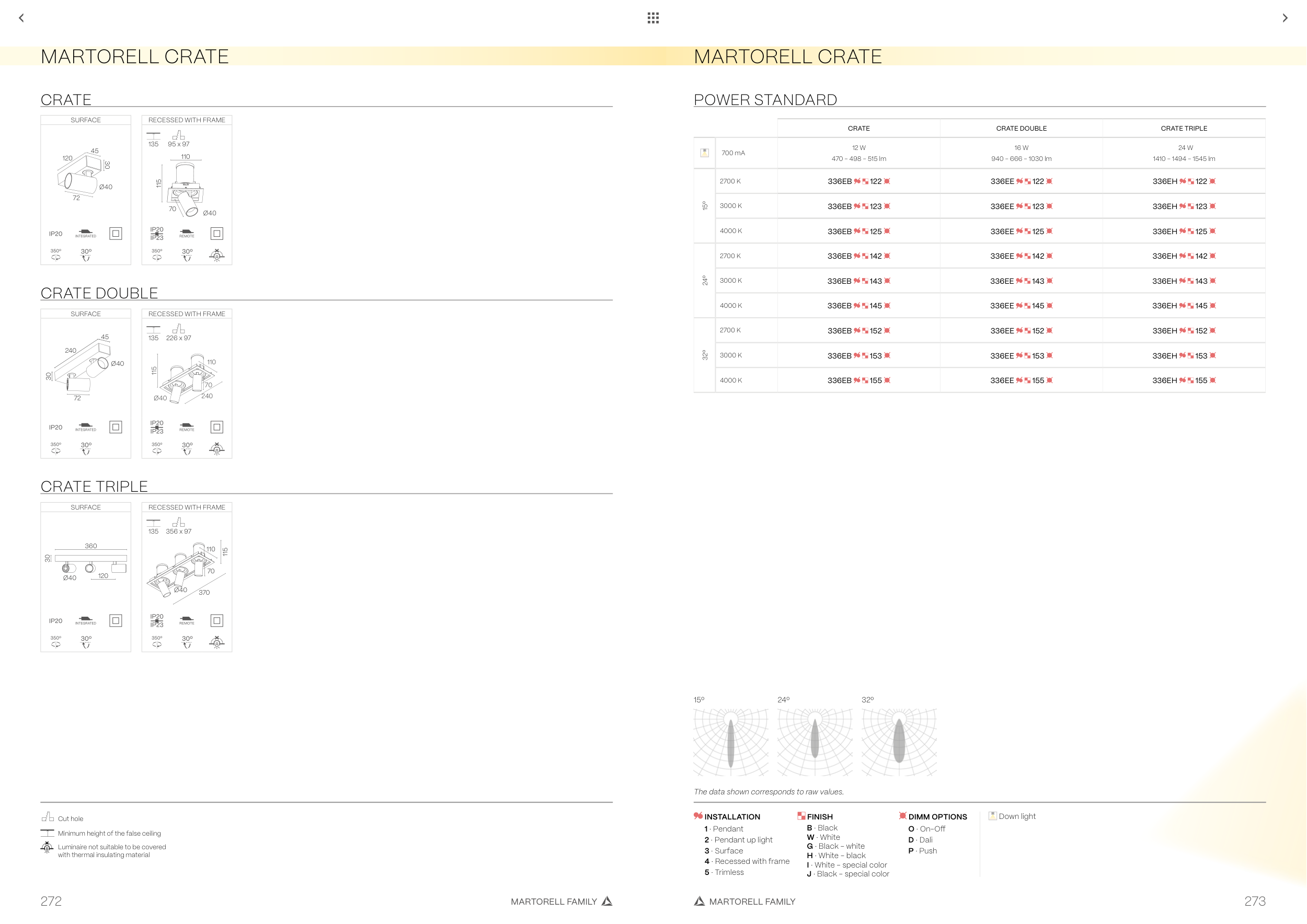

MARTORELL CRATE
Cut hole
Minimum height of the false ceiling
Luminaire not suitable to be covered
with thermal insulating material
CRATE
CRATE DOUBLE
CRATE TRIPLE
SURFACE
Ø40
30
45
120
72
SURFACE
72
240
45
30
Ø40
SURFACE
360
120
Ø40
30
RECESSED WITH FRAME
135
95 x 97
115
110
70
Ø40
RECESSED WITH FRAME
135
226 x 97
110
70
240
Ø40
115
RECESSED WITH FRAME
135
356 x 97
370
110
115
70
Ø40
MARTORELL CRATE
POWER STANDARD
CRATE
CRATE DOUBLE
CRATE TRIPLE
700 mA
12 W
470 - 498 - 515 lm
16 W
940 - 666 - 1030 lm
24 W
1410 - 1494 - 1545 lm
15º
2700 K
336EB 122
336EE 122
336EH 122
3000 K
336EB 123
336EE 123
336EH 123
4000 K
336EB 125
336EE 125
336EH 125
24º
2700 K
336EB 142
336EE 142
336EH 142
3000 K
336EB 143
336EE 143
336EH 143
4000 K
336EB 145
336EE 145
336EH 145
32º
2700 K
336EB 152
336EE 152
336EH 152
3000 K
336EB 153
336EE 153
336EH 153
4000 K
336EB 155
336EE 155
336EH 155
INSTALLATION
1 · Pendant
2 · Pendant up light
3 · Surface
4 · Recessed with frame
5 · Trimless
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
Down light
32º
15º
The data shown corresponds to raw values.
24º
FINISH
B · Black
W · White
G · Black - white
H · White - black
I · White - special color
J · Black - special color
