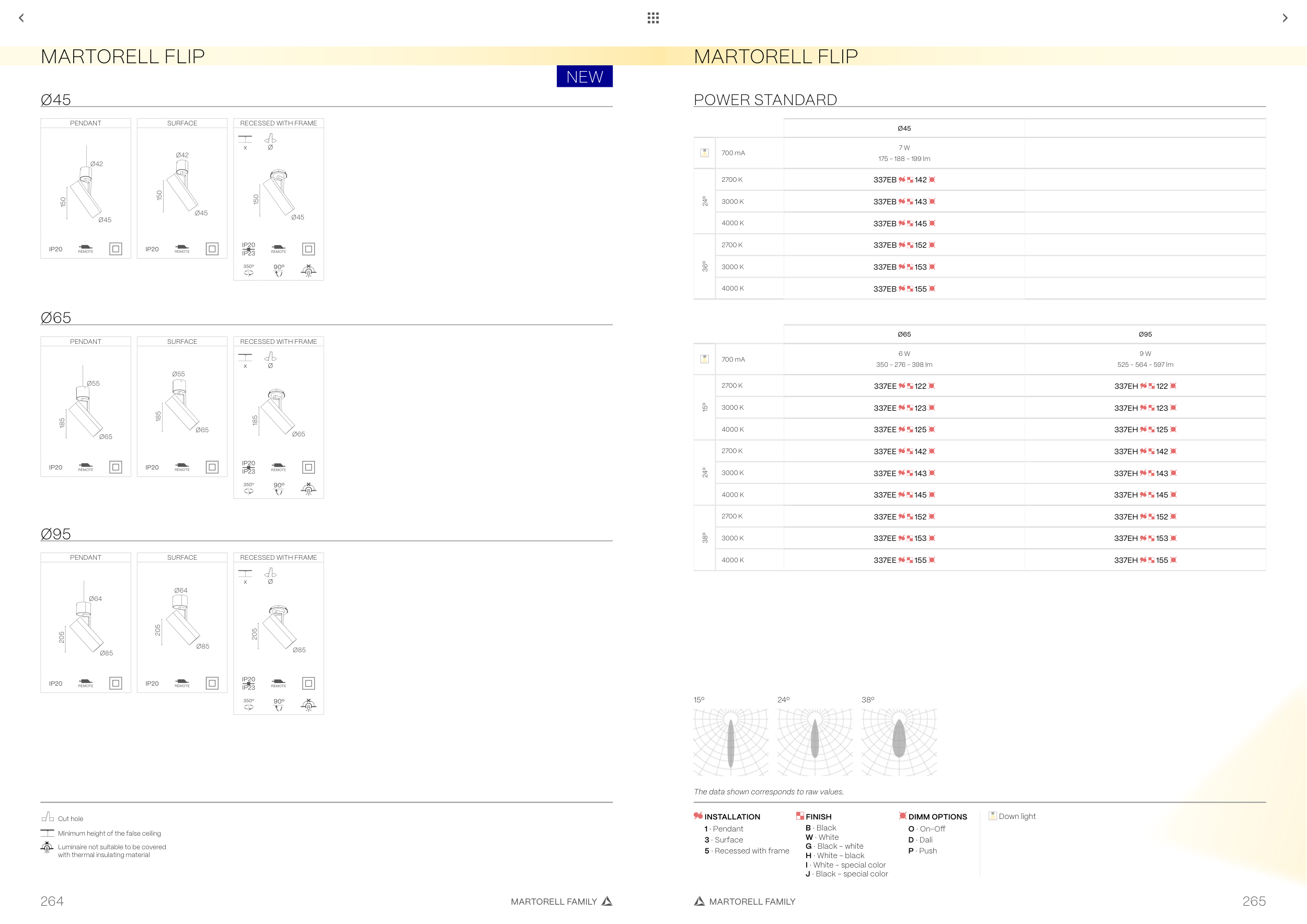

MARTORELL FLIP
Cut hole
Minimum height of the false ceiling
Luminaire not suitable to be covered
with thermal insulating material
Ø45
Ø65
Ø95
PENDANT
Ø42
Ø45
150
PENDANT
Ø55
Ø65
185
PENDANT
Ø64
Ø85
205
SURFACE
Ø42
Ø45
150
SURFACE
Ø55
Ø65
185
SURFACE
Ø64
Ø85
205
RECESSED WITH FRAME
x
Ø
Ø45
150
RECESSED WITH FRAME
x
Ø
Ø65
185
RECESSED WITH FRAME
x
Ø
Ø85
205
MARTORELL FLIP
POWER STANDARD
INSTALLATION
1 · Pendant
3 · Surface
5 · Recessed with frame
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
Down light
Ø45
700 mA
7 W
175 - 188 - 199 lm
24º
2700 K
337EB 142
3000 K
337EB 143
4000 K
337EB 145
36º
2700 K
337EB 152
3000 K
337EB 153
4000 K
337EB 155
Ø65
Ø95
700 mA
6 W
350 - 276 - 398 lm
9 W
525 - 564 - 597 lm
15º
2700 K
337EE 122
337EH 122
3000 K
337EE 123
337EH 123
4000 K
337EE 125
337EH 125
24º
2700 K
337EE 142
337EH 142
3000 K
337EE 143
337EH 143
4000 K
337EE 145
337EH 145
38º
2700 K
337EE 152
337EH 152
3000 K
337EE 153
337EH 153
4000 K
337EE 155
337EH 155
38º
15º
The data shown corresponds to raw values.
24º
FINISH
B · Black
W · White
G · Black - white
H · White - black
I · White - special color
J · Black - special color
