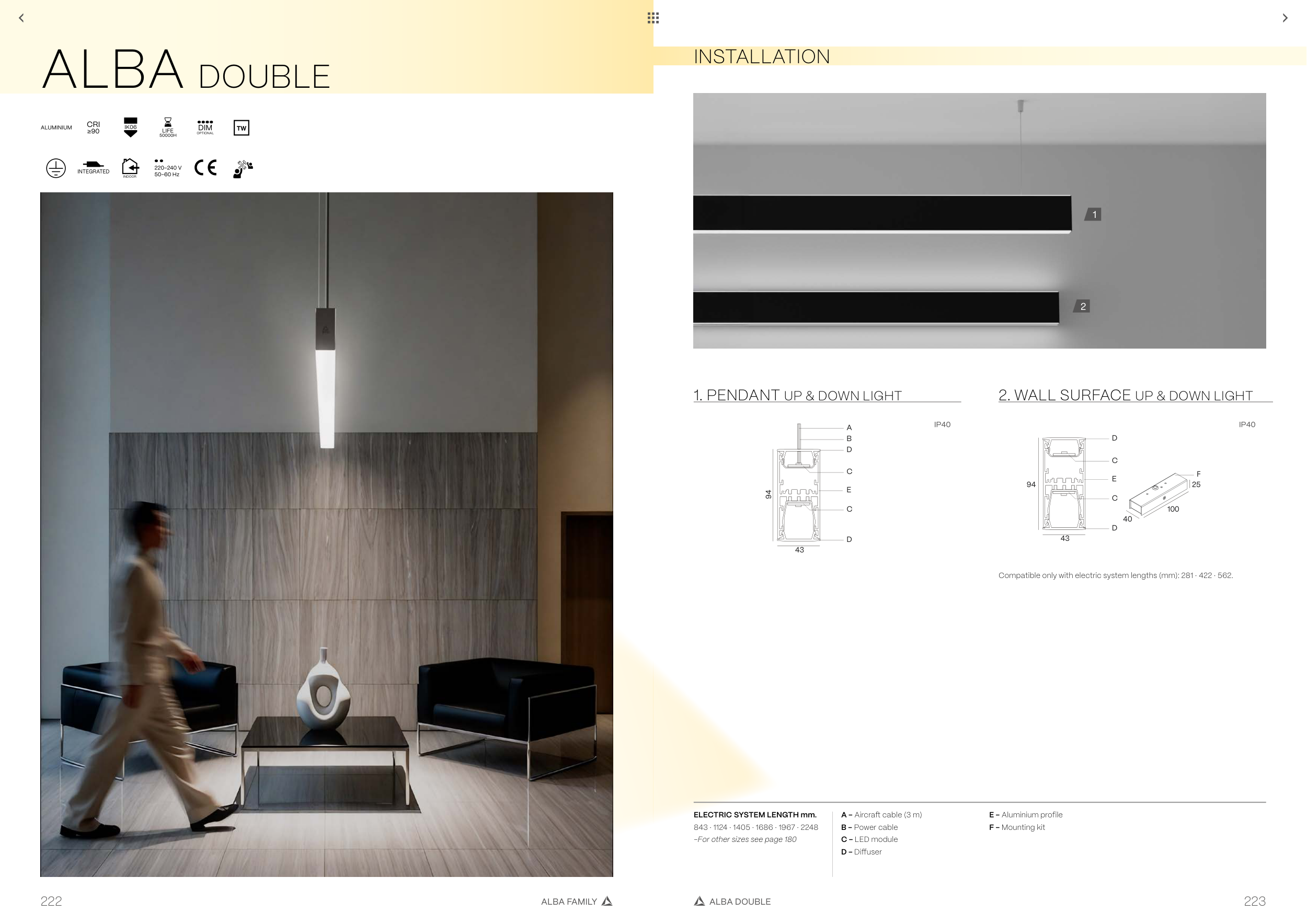

ALBA DOUBLE
ALBA FAMILY
223
222
INSTALLATION
ALBA DOUBLE
ELECTRIC SYSTEM LENGTH mm.
843 · 1124 · 1405 · 1686 · 1967 · 2248
-For other sizes see page 180
1. PENDANT UP & DOWN LIGHT
2. WALL SURFACE UP & DOWN LIGHT
94
40
100
25
43
C
C
E
D
D
F
94
43
A
B
C
C
E
D
D
A - Aircraft cable (3 m)
B - Power cable
C - LED module
D - Diffuser
E - Aluminium profile
F - Mounting kit
Compatible only with electric system lengths (mm): 281 · 422 · 562.
2
1
