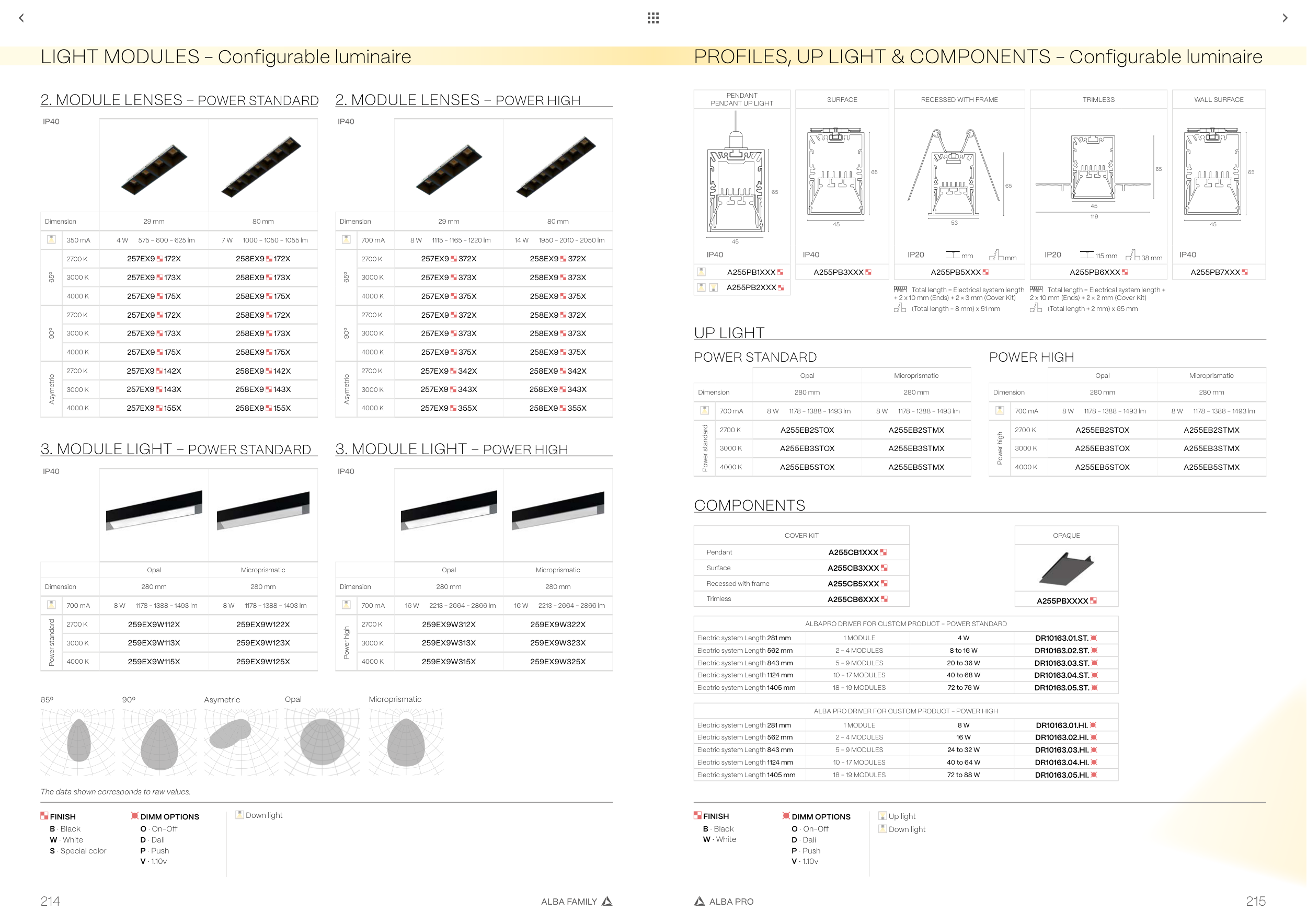

LIGHT MODULES - Configurable luminaire
2. MODULE LENSES – POWER STANDARD
3. MODULE LIGHT – POWER STANDARD
2. MODULE LENSES – POWER HIGH
3. MODULE LIGHT – POWER HIGH
Dimension
29 mm
80 mm
350 mA
4 W 575 - 600 - 625 lm
7 W 1000 - 1050 - 1055 lm
65º
2700 K
257EX9 172X
258EX9 172X
3000 K
257EX9 173X
258EX9 173X
4000 K
257EX9 175X
258EX9 175X
90º
2700 K
257EX9 172X
258EX9 172X
3000 K
257EX9 173X
258EX9 173X
4000 K
257EX9 175X
258EX9 175X
Asymetric
2700 K
257EX9 142X
258EX9 142X
3000 K
257EX9 143X
258EX9 143X
4000 K
257EX9 155X
258EX9 155X
Opal
Microprismatic
Dimension
280 mm
280 mm
700 mA
8 W 1178 - 1388 - 1493 lm
8 W 1178 - 1388 - 1493 lm
Power standard
2700 K
259EX9W112X
259EX9W122X
3000 K
259EX9W113X
259EX9W123X
4000 K
259EX9W115X
259EX9W125X
POWER STANDARD
Opal
Microprismatic
Dimension
280 mm
280 mm
700 mA
8 W 1178 - 1388 - 1493 lm
8 W 1178 - 1388 - 1493 lm
Power standard
2700 K
A255EB2STOX
A255EB2STMX
3000 K
A255EB3STOX
A255EB3STMX
4000 K
A255EB5STOX
A255EB5STMX
POWER HIGH
Opal
Microprismatic
Dimension
280 mm
280 mm
700 mA
8 W 1178 - 1388 - 1493 lm
8 W 1178 - 1388 - 1493 lm
Power high
2700 K
A255EB2STOX
A255EB2STMX
3000 K
A255EB3STOX
A255EB3STMX
4000 K
A255EB5STOX
A255EB5STMX
Opal
Microprismatic
Dimension
280 mm
280 mm
700 mA
16 W 2213 - 2664 - 2866 lm
16 W 2213 - 2664 - 2866 lm
Power high
2700 K
259EX9W312X
259EX9W322X
3000 K
259EX9W313X
259EX9W323X
4000 K
259EX9W315X
259EX9W325X
Dimension
29 mm
80 mm
700 mA
8 W 1115 - 1165 - 1220 lm
14 W 1950 - 2010 - 2050 lm
65º
2700 K
257EX9 372X
258EX9 372X
3000 K
257EX9 373X
258EX9 373X
4000 K
257EX9 375X
258EX9 375X
90º
2700 K
257EX9 372X
258EX9 372X
3000 K
257EX9 373X
258EX9 373X
4000 K
257EX9 375X
258EX9 375X
Asymetric
2700 K
257EX9 342X
258EX9 342X
3000 K
257EX9 343X
258EX9 343X
4000 K
257EX9 355X
258EX9 355X
FINISH
B · Black
W · White
S · Special color
Down light
90º
Asymetric
65º
The data shown corresponds to raw values.
PROFILES, UP LIGHT & COMPONENTS - Configurable luminaire
FINISH
B · Black
W · White
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
COVER KIT
Pendant
A255CB1XXX
Surface
A255CB3XXX
Recessed with frame
A255CB5XXX
Trimless
A255CB6XXX
ALBAPRO DRIVER FOR CUSTOM PRODUCT - POWER STANDARD
Electric system Length 281 mm
1 MODULE
4 W
DR10163.01.ST.
Electric system Length 562 mm
2 - 4 MODULES
8 to 16 W
DR10163.02.ST.
Electric system Length 843 mm
5 - 9 MODULES
20 to 36 W
DR10163.03.ST.
Electric system Length 1124 mm
10 - 17 MODULES
40 to 68 W
DR10163.04.ST.
Electric system Length 1405 mm
18 - 19 MODULES
72 to 76 W
DR10163.05.ST.
ALBA PRO DRIVER FOR CUSTOM PRODUCT - POWER HIGH
Electric system Length 281 mm
1 MODULE
8 W
DR10163.01.HI.
Electric system Length 562 mm
2 - 4 MODULES
16 W
DR10163.02.HI.
Electric system Length 843 mm
5 - 9 MODULES
24 to 32 W
DR10163.03.HI.
Electric system Length 1124 mm
10 - 17 MODULES
40 to 64 W
DR10163.04.HI.
Electric system Length 1405 mm
18 - 19 MODULES
72 to 88 W
DR10163.05.HI.
OPAQUE
A255PBXXXX
UP LIGHT
COMPONENTS
PENDANT
PENDANT UP LIGHT
65
45
A255PB1XXX
A255PB2XXX
WALL SURFACE
65
45
A255PB7XXX
SURFACE
65
45
A255PB3XXX
RECESSED WITH FRAME
65
53
mm
mm
A255PB5XXX
TRIMLESS
65
45
119
115 mm
38 mm
A255PB6XXX
Total length = Electrical system length
+ 2 x 10 mm (Ends) + 2 × 3 mm (Cover Kit)
(Total length - 8 mm) x 51 mm
Total length = Electrical system length +
2 x 10 mm (Ends) + 2 × 2 mm (Cover Kit)
(Total length + 2 mm) x 65 mm
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
Up light
Down light
Opal
Microprismatic
