ALBA FAMILY
ALBA WING
209
208

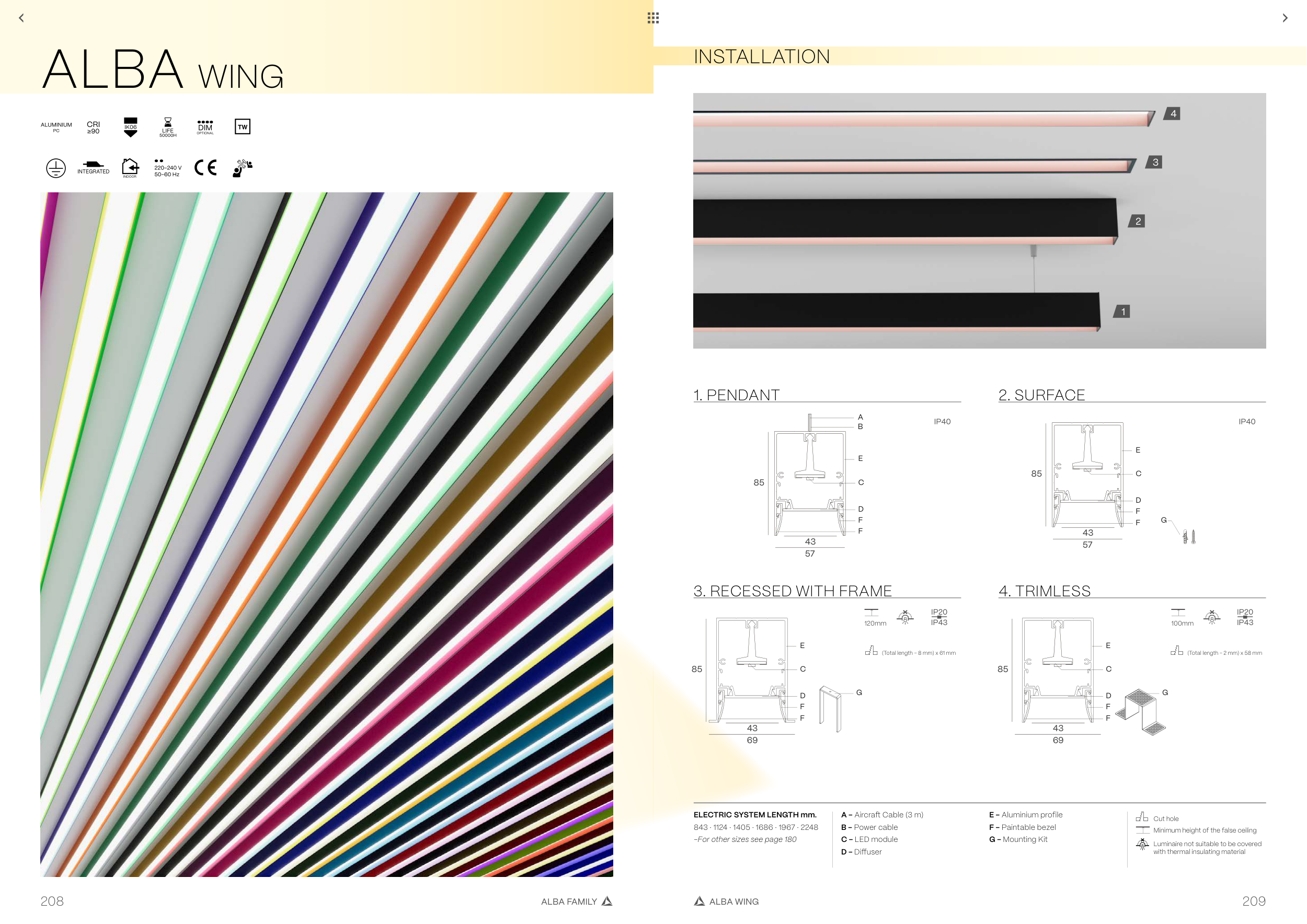

INSTALLATION
ALBA WING
2. SURFACE
G
E
C
D
F
F
57
43
85
A
B
E
C
D
F
F
57
43
85
1. PENDANT
4. TRIMLESS
E
C
D
F
F
69
43
85
G
100mm
IP20
IP43
(Total length - 2 mm) x 58 mm
E
C
D
F
F
69
43
85
G
120mm
IP20
IP43
(Total length - 8 mm) x 61 mm
3. RECESSED WITH FRAME
ELECTRIC SYSTEM LENGTH mm.
843 · 1124 · 1405 · 1686 · 1967 · 2248
-For other sizes see page 180
A - Aircraft Cable (3 m)
B - Power cable
C - LED module
D - Diffuser
E - Aluminium profile
F - Paintable bezel
G - Mounting Kit
Cut hole
Minimum height of the false ceiling
Luminaire not suitable to be covered
with thermal insulating material
4
3
2
1
