ALBA FAMILY
ALBA MINI MODULIGHT
207
206
NEW

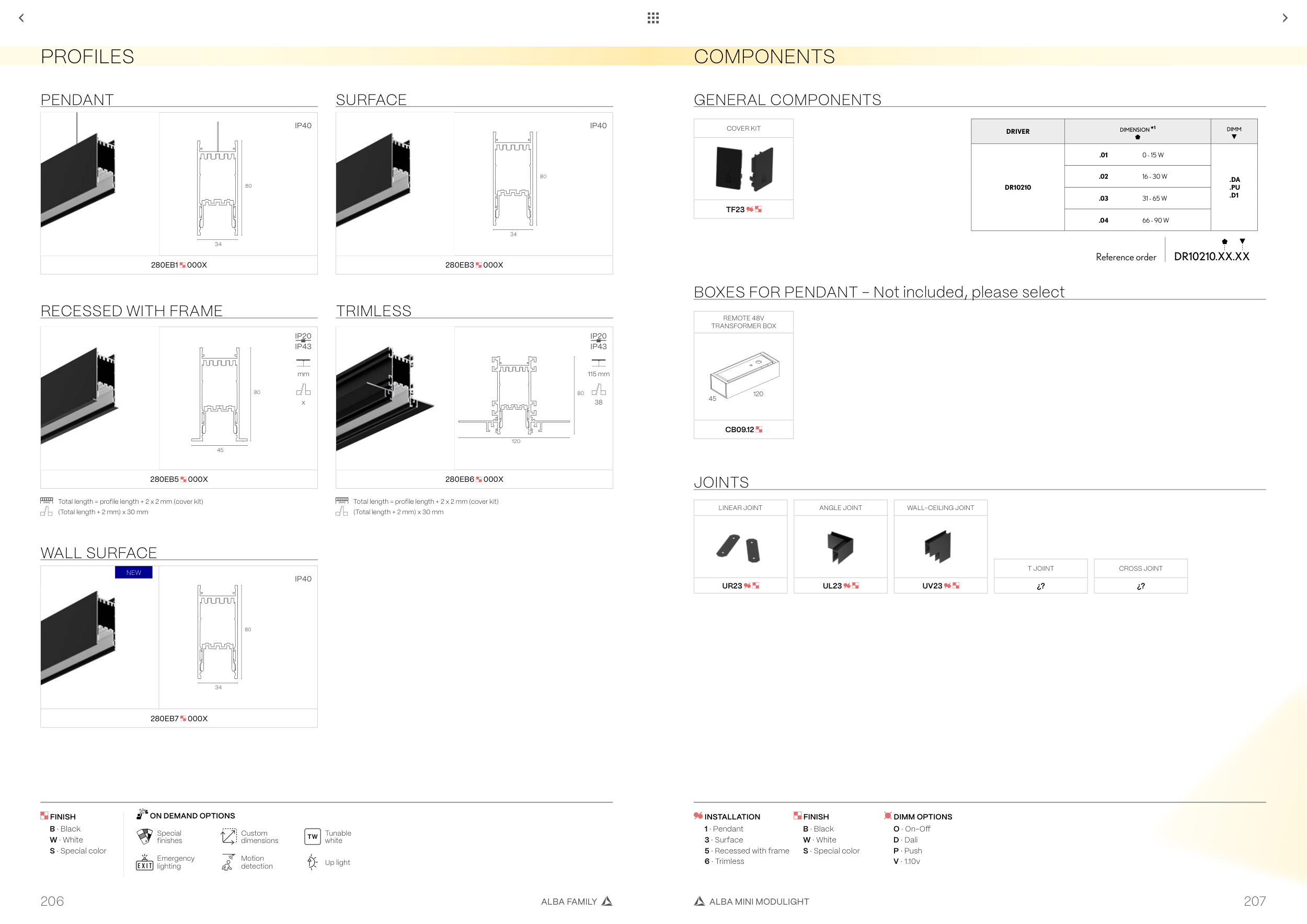

TECHNICAL INFORMATION
PROFILES
RECESSED WITH FRAME
TRIMLESS
80
45
IP20
IP43
mm
x
280EB5 000X
80
120
IP20
IP43
115 mm
38
280EB6 000X
Total length = profile length + 2 x 2 mm (cover kit)
(Total length + 2 mm) x 30 mm
Total length = profile length + 2 x 2 mm (cover kit)
(Total length + 2 mm) x 30 mm
PENDANT
SURFACE
WALL SURFACE
80
34
280EB1 000X
80
34
280EB3 000X
80
34
280EB7 000X
ON DEMAND OPTIONS
Special
finishes
Custom
dimensions
Tunable
white
Emergency
lighting
Motion
detection
Up light
COMPONENTS
INSTALLATION
1 · Pendant
3 · Surface
5 · Recessed with frame
6 · Trimless
FINISH
B · Black
W · White
S · Special color
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
LINEAR JOINT
UR23
ANGLE JOINT
UL23
WALL-CEILING JOINT
UV23
BOXES FOR PENDANT - Not included, please select
COVER KIT
TF23
GENERAL COMPONENTS
JOINTS
REMOTE 48V
TRANSFORMER BOX
120
45
CB09.12
DRIVER
DIMENSION *1
DIMM
DR10210
.01
0 - 15 W
.DA
.PU
.D1
.02
16 - 30 W
.03
31 - 65 W
.04
66 - 90 W
Reference order DR10210.XX.XX
FINISH
B · Black
W · White
S · Special color
T JOIINT
¿?
CROSS JOINT
¿?
