recessed
surface p. 168
track p. 426
HYPER
ø70
136
max 161
ø60
90°
355°
cat. n°

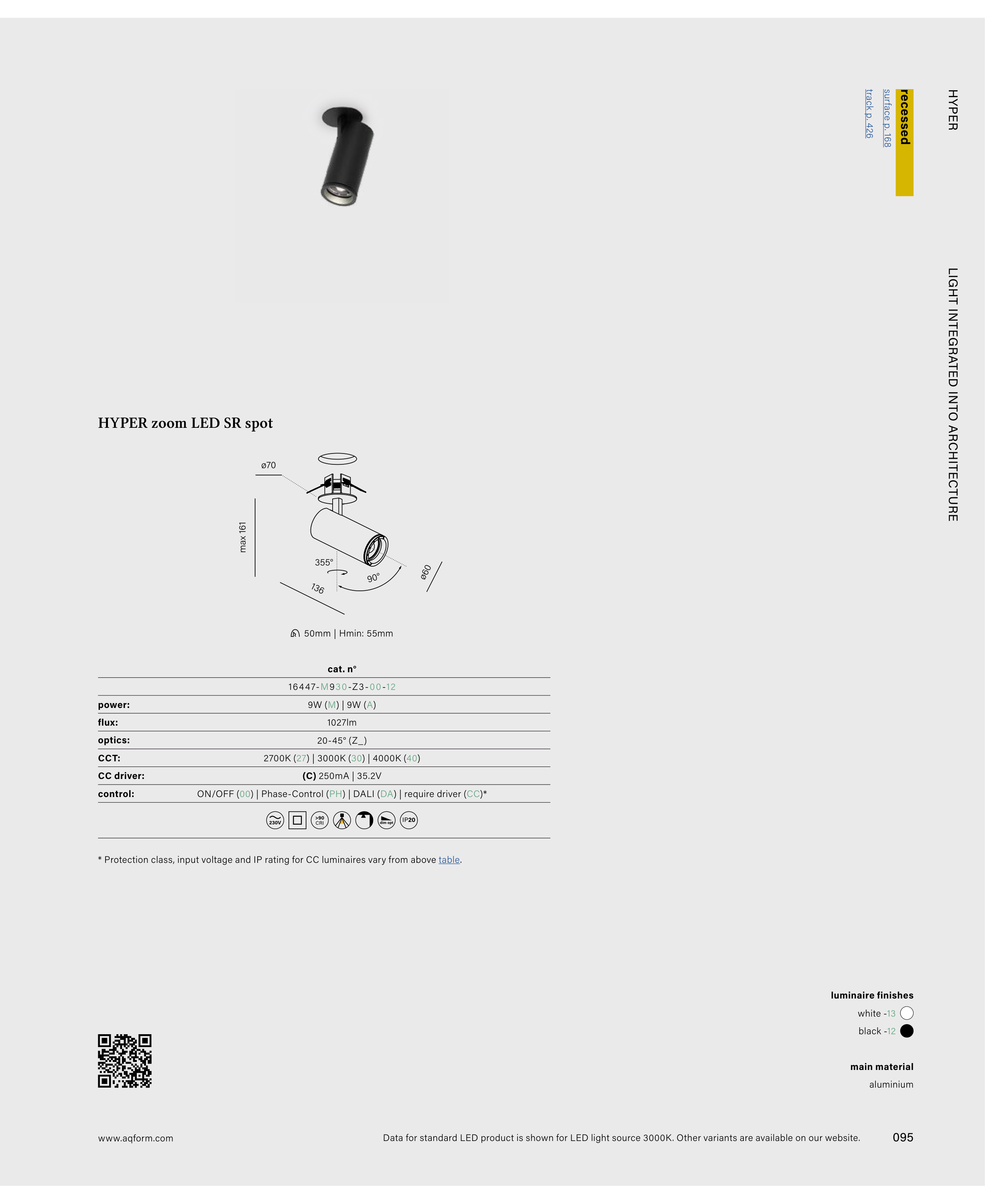

HYPER zoom LED SR spot
16447-M930-Z3-00-12
9W (M) | 9W (A)
1027lm
2700K (27) | 3000K (30) | 4000K (40)
(C) 250mA | 35.2V
20-45° (Z_)
ON/OFF (00) | Phase-Control (PH) | DALI (DA) | require driver (CC)*
230V
CRI
>90
dim opt
IP20
white -13
black -12
luminaire finishes
aluminium
main material
power:
flux:
optics:
CCT:
CC driver:
control:
* Protection class, input voltage and IP rating for CC luminaires vary from above table.
50mm | Hmin: 55mm
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
www.aqform.com
095
LIGHT INTEGRATED INTO ARCHITECTURE
