ø46
120
max 132
ø70
70°
355°
max 144
ø70
120
ø68
55°
355°
max 144
ø70
120
ø68
55°
355°
4.5W (M) | 4.5W (A)
543lm
(B) 500mA | 8.6V
(H) 250mA | 34.2V
8.5W (M) | 8.5W (A)
1149lm
2700K (27) | 3000K (30) | 4000K (40)
ON/OFF (00) | Phase-Control (PH) | DALI (DA)1 | require driver (CC)*
power:
flux:
optics:
CCT:
CC driver:
control:
16476-M930-WB-00-12
16478-M930-WB-00-12
16532-G000-00-PH-12
cat. n°
cat. n°
cat. n°

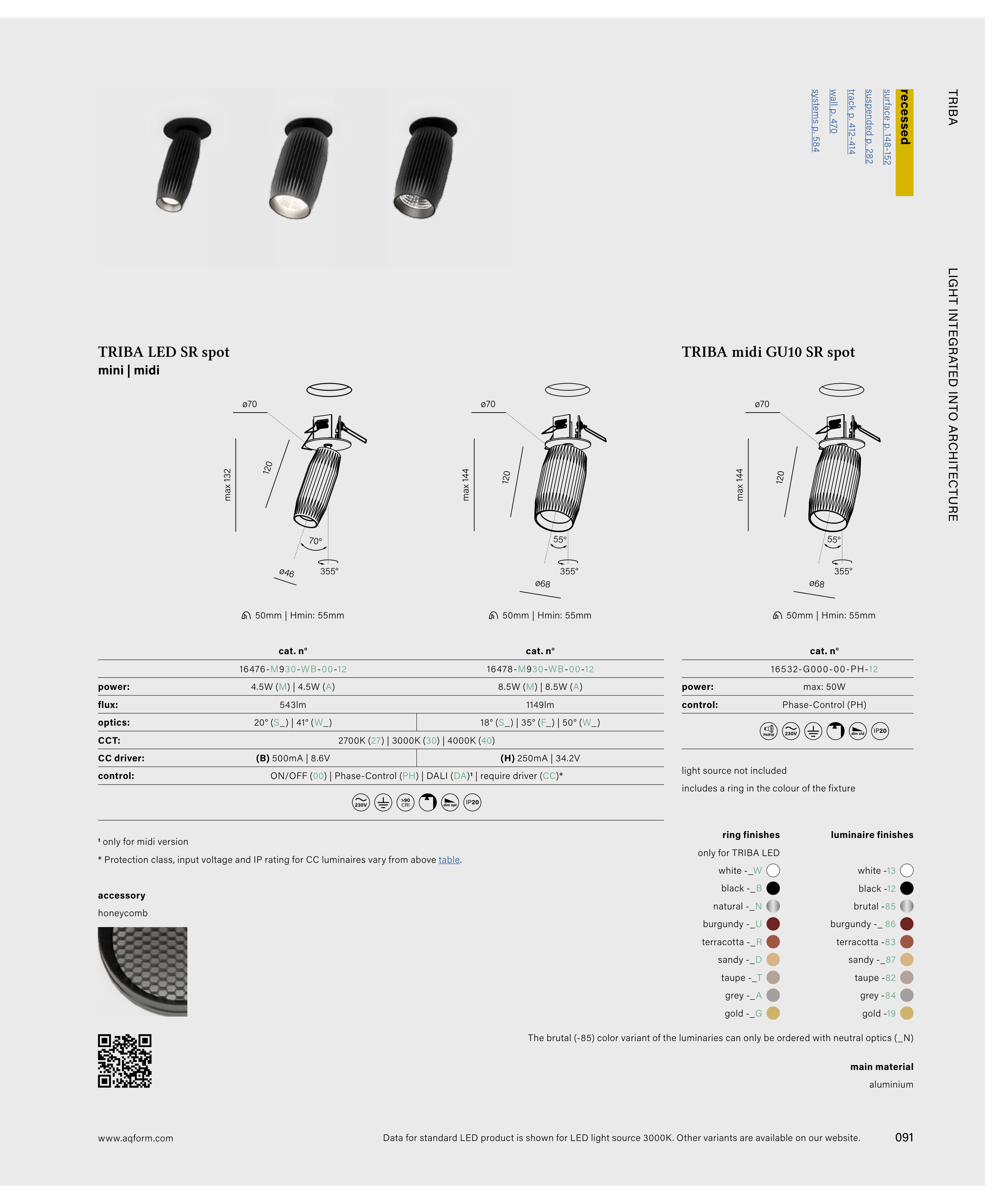

TRIBA LED SR spot
mini | midi
TRIBA midi GU10 SR spot
230V
CRI
>90
dim opt
IP20
recessed
surface p. 148-152
suspended p. 282
track p. 412-414
wall p. 470
systems p. 584
TRIBA
* Protection class, input voltage and IP rating for CC luminaires vary from above table.
20° (S_) | 41° (W_)
18° (S_) | 35° (F_) | 50° (W_)
50mm | Hmin: 55mm
50mm | Hmin: 55mm
50mm | Hmin: 55mm
aluminium
main material
white -13
black -12
grey -84
terracotta -83
taupe -82
gold -19
luminaire finishes
white -_W
burgundy -_U
burgundy -_ 86
black -_B
sandy -_D
sandy -_87
grey -_A
terracotta -_R
taupe -_T
gold -_G
ring finishes
accessory
honeycomb
1 only for midi version
power:
control:
max: 50W
Phase-Control (PH)
230V
PAR16
dim std
IP20
light source not included
natural -_N
brutal -85
only for TRIBA LED
The brutal (-85) color variant of the luminaries can only be ordered with neutral optics (_N)
includes a ring in the colour of the fixture
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
LIGHT INTEGRATED INTO ARCHITECTURE
www.aqform.com
091
