93
78
ø44
ø85
ø73
50°
170°
115
99
ø44
ø85
50°
170°
93
78
ø44
ø111,5
ø73
50°
170°
115
99
ø44
ø111,5
50°
170°
cat. n°
cat. n°
cat. n°
cat. n°
230V
CRI
>90
dim opt
IP20
power:
control:

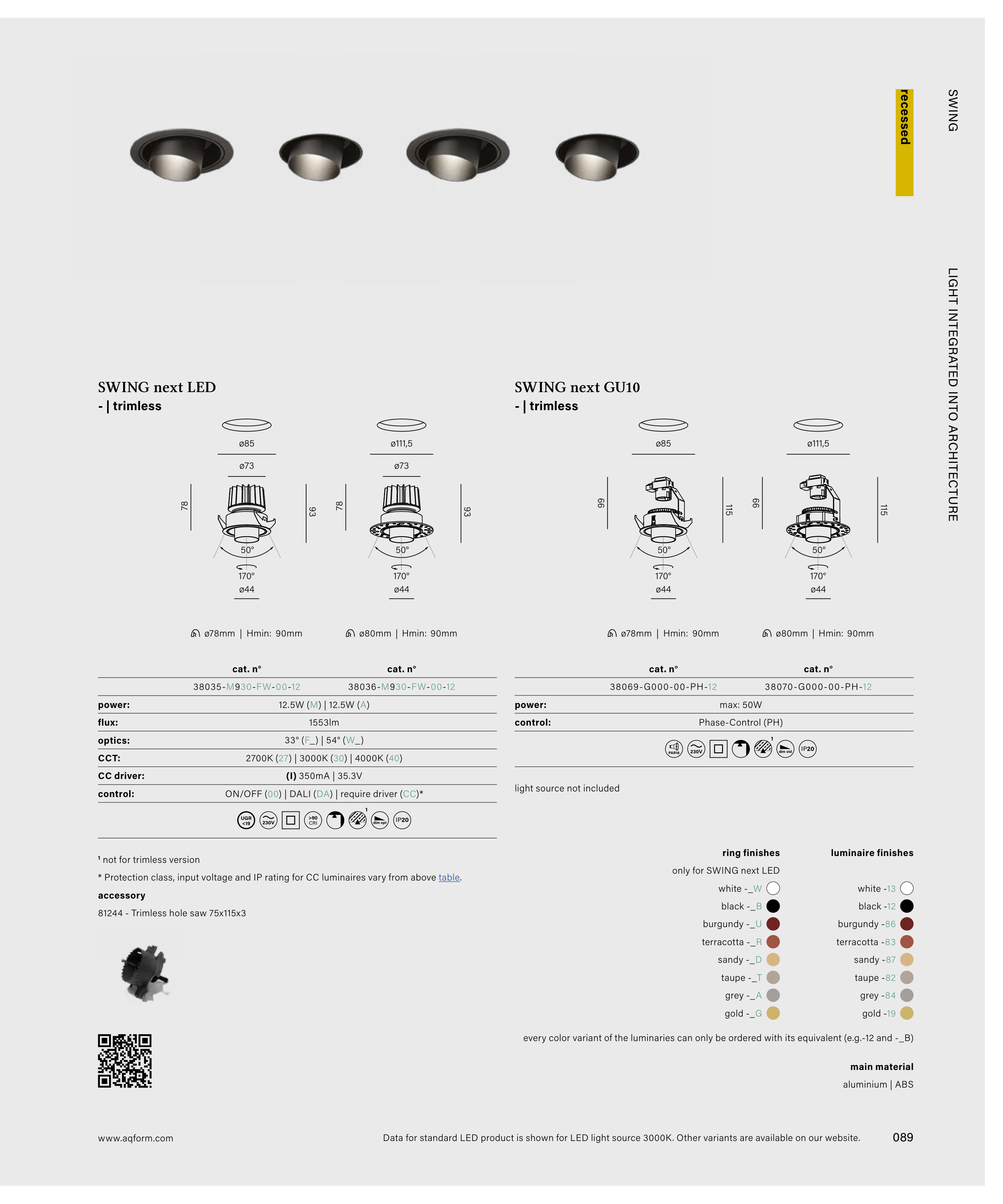

SWING next LED
- | trimless
SWING next GU10
- | trimless
power:
flux:
optics:
CCT:
CC driver:
control:
230V
PAR16
dim std
IP20
light source not included
max: 50W
Phase-Control (PH)
ON/OFF (00) | DALI (DA) | require driver (CC)*
2700K (27) | 3000K (30) | 4000K (40)
(I) 350mA | 35.3V
33° (F_) | 54° (W_)
12.5W (M) | 12.5W (A)
1553lm
38035-M930-FW-00-12
38069-G000-00-PH-12
38036-M930-FW-00-12
38070-G000-00-PH-12
aluminium | ABS
main material
recessed
SWING
accessory
81244 - Trimless hole saw 75x115x3
1 not for trimless version
* Protection class, input voltage and IP rating for CC luminaires vary from above table.
UGR
<19
ø78mm | Hmin: 90mm
ø78mm | Hmin: 90mm
ø80mm | Hmin: 90mm
ø80mm | Hmin: 90mm
white -13
black -12
grey -84
terracotta -83
taupe -82
gold -19
luminaire finishes
burgundy -86
sandy -87
1
1
white -_W
burgundy -_U
black -_B
sandy -_D
grey -_A
terracotta -_R
taupe -_T
gold -_G
ring finishes
every color variant of the luminaries can only be ordered with its equivalent (e.g.-12 and -_B)
only for SWING next LED
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
LIGHT INTEGRATED INTO ARCHITECTURE
www.aqform.com
089
