ø44
98
41
ø85
139
59
ø65
120
48
2700K (27) | 3000K (30) | 4000K (40)
power:
flux:
optics:
CCT:
CC driver:
control:
38014-M930-WB-00-12
38016-M930-WB-00-12
38018-M930-WB-00-12
cat. n°
cat. n°
cat. n°
230V
230V
CRI
>90
CRI
>90
dim opt
non dim
IP20
IP20

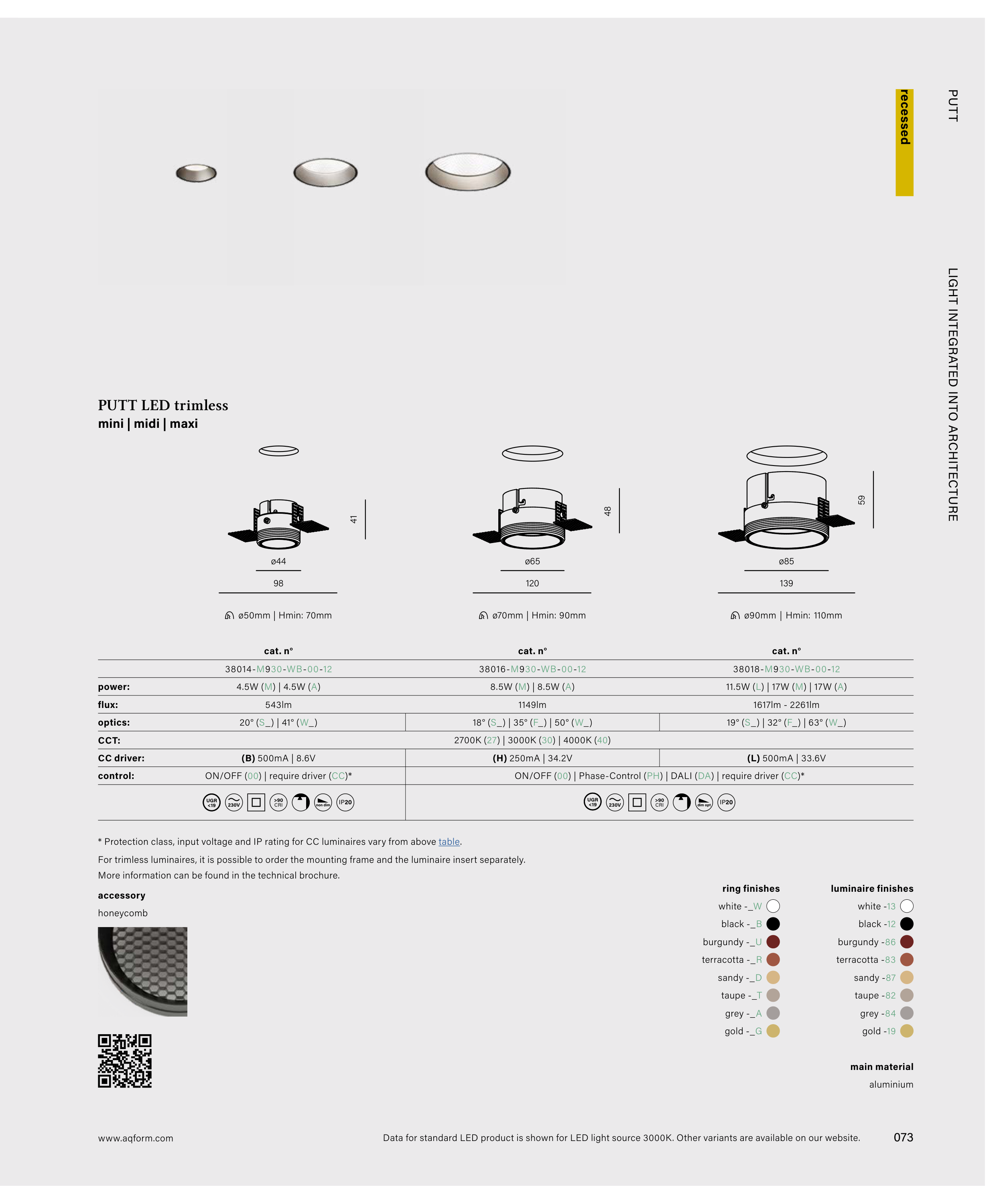

PUTT LED trimless
mini | midi | maxi
PUTT
accessory
honeycomb
* Protection class, input voltage and IP rating for CC luminaires vary from above table.
aluminium
main material
4.5W (M) | 4.5W (A)
543lm
8.5W (M) | 8.5W (A)
1149lm
11.5W (L) | 17W (M) | 17W (A)
1617lm - 2261lm
ON/OFF (00) | require driver (CC)*
(B) 500mA | 8.6V
(H) 250mA | 34.2V
(L) 500mA | 33.6V
20° (S_) | 41° (W_)
18° (S_) | 35° (F_) | 50° (W_)
19° (S_) | 32° (F_) | 63° (W_)
ON/OFF (00) | Phase-Control (PH) | DALI (DA) | require driver (CC)*
UGR
<19
UGR
<19
ø50mm | Hmin: 70mm
ø70mm | Hmin: 90mm
ø90mm | Hmin: 110mm
white -13
black -12
grey -84
terracotta -83
taupe -82
gold -19
luminaire finishes
white -_W
burgundy -_U
burgundy -86
black -_B
sandy -_D
sandy -87
grey -_A
terracotta -_R
taupe -_T
gold -_G
ring finishes
For trimless luminaires, it is possible to order the mounting frame and the luminaire insert separately.
More information can be found in the technical brochure.
recessed
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
www.aqform.com
073
