PhaseControl LED Driver
LED
SEC
PRI
LED
+
-
4,3
80,7
71,1
51,2
58,2
4,3
30
15,3
tc
8,5
22
N
L
220-240 V
50/60Hz
LED Driver
LED
SEC
PRI
LED
+
-
DA/N
DA/L
DA -
DA
COM
T1
N
L
monostable
switch NO
Casambi devices
Tridonic basicDIM G2 Casambi Bluetooth-DALI controller

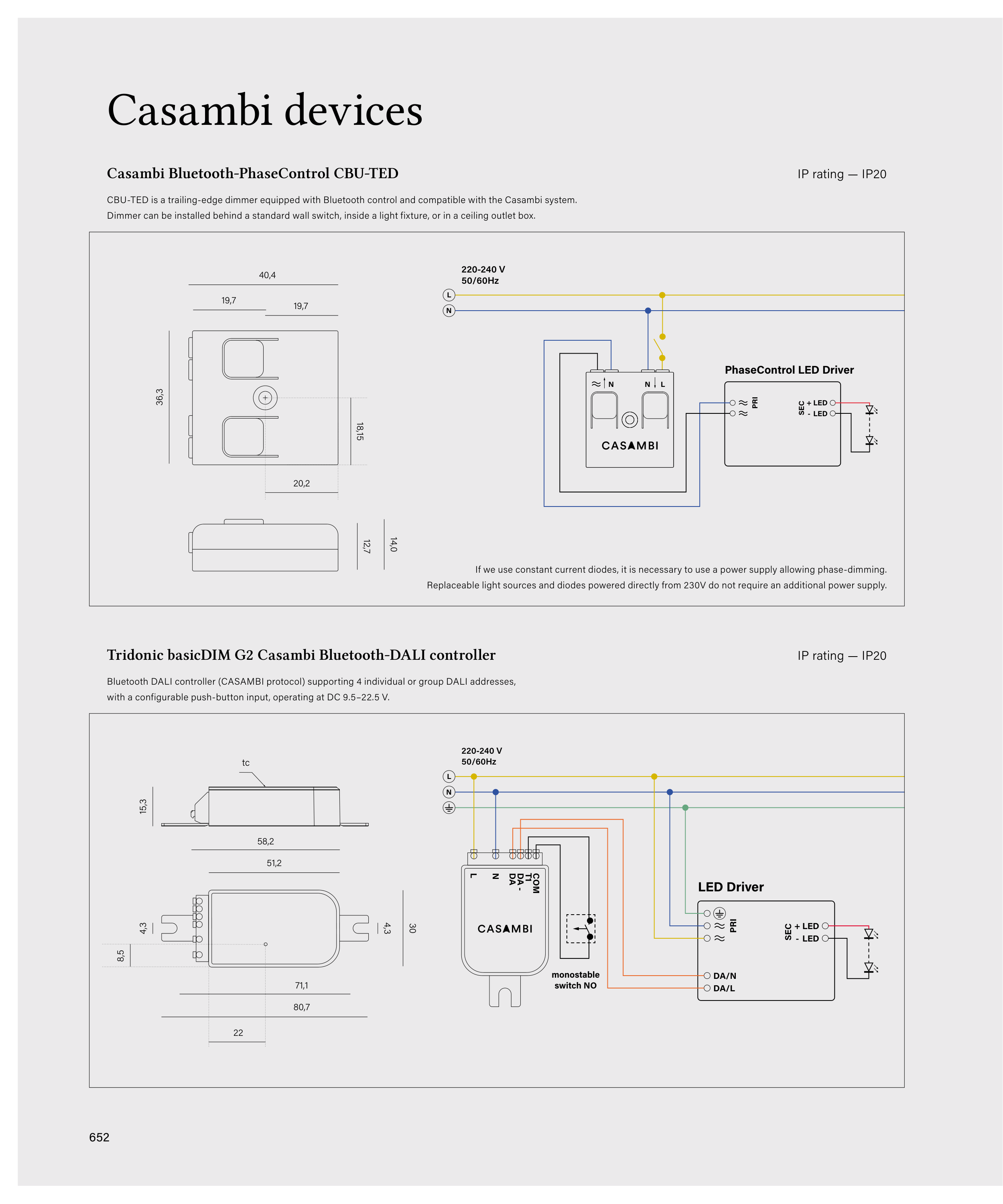

Casambi Bluetooth-PhaseControl CBU-TED
CBU-TED is a trailing-edge dimmer equipped with Bluetooth control and compatible with the Casambi system.
Dimmer can be installed behind a standard wall switch, inside a light fixture, or in a ceiling outlet box.
If we use constant current diodes, it is necessary to use a power supply allowing phase-dimming.
Replaceable light sources and diodes powered directly from 230V do not require an additional power supply.
IP rating — IP20
Bluetooth DALI controller (CASAMBI protocol) supporting 4 individual or group DALI addresses,
with a configurable push-button input, operating at DC 9.5–22.5 V.
IP rating — IP20
