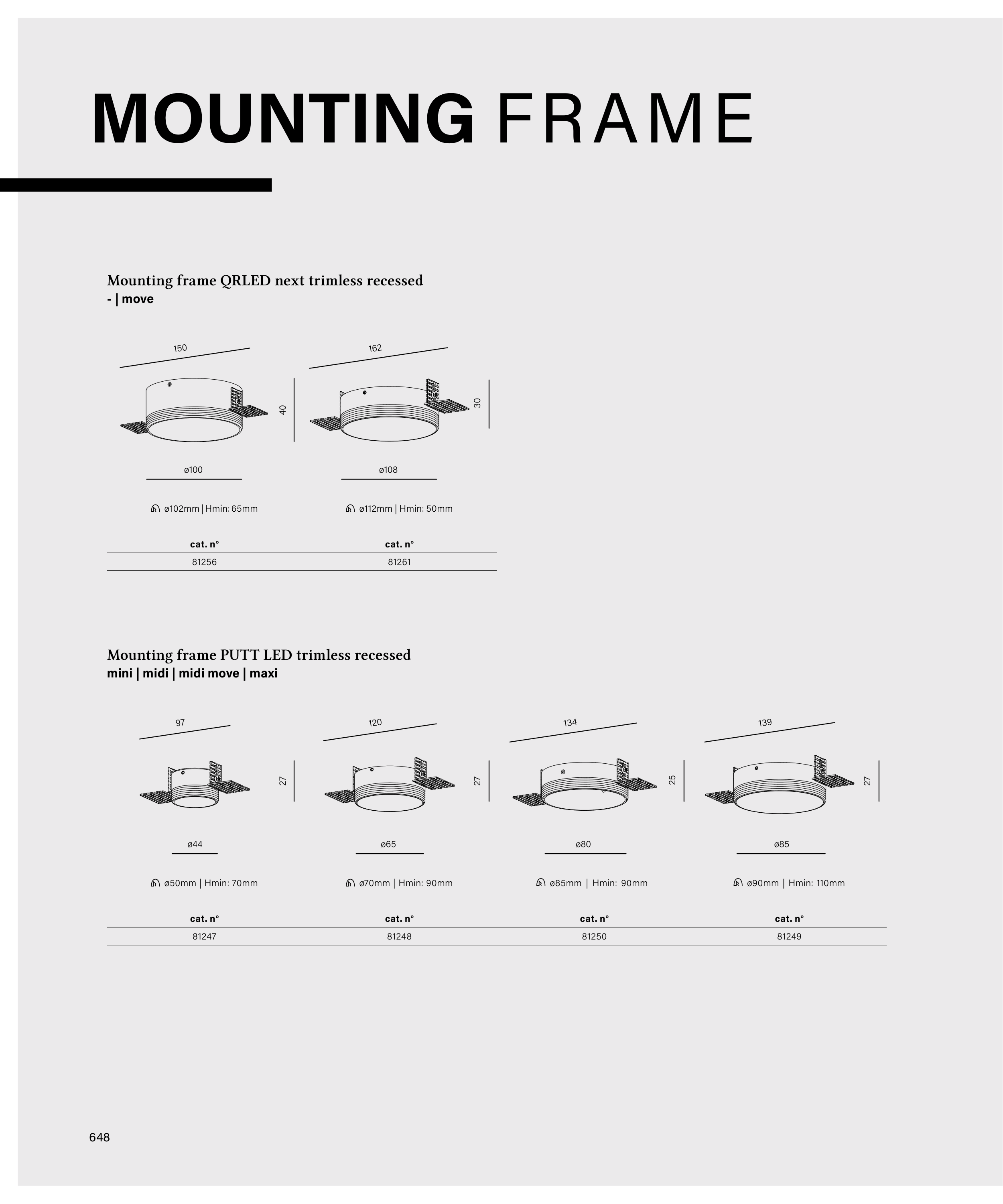

MOUNTING FRAME
ø108
162
30
ø65
120
27
ø80
134
25
ø85
139
27
ø100
150
40
ø44
97
27
81256
81247
81261
81248
81250
81249
cat. n°
cat. n°
cat. n°
cat. n°
cat. n°
cat. n°
Mounting frame QRLED next trimless recessed
- | move
Mounting frame PUTT LED trimless recessed
mini | midi | midi move | maxi
ø102mm | Hmin: 65mm
ø50mm | Hmin: 70mm
ø112mm | Hmin: 50mm
ø70mm | Hmin: 90mm
ø85mm | Hmin: 90mm
ø90mm | Hmin: 110mm
