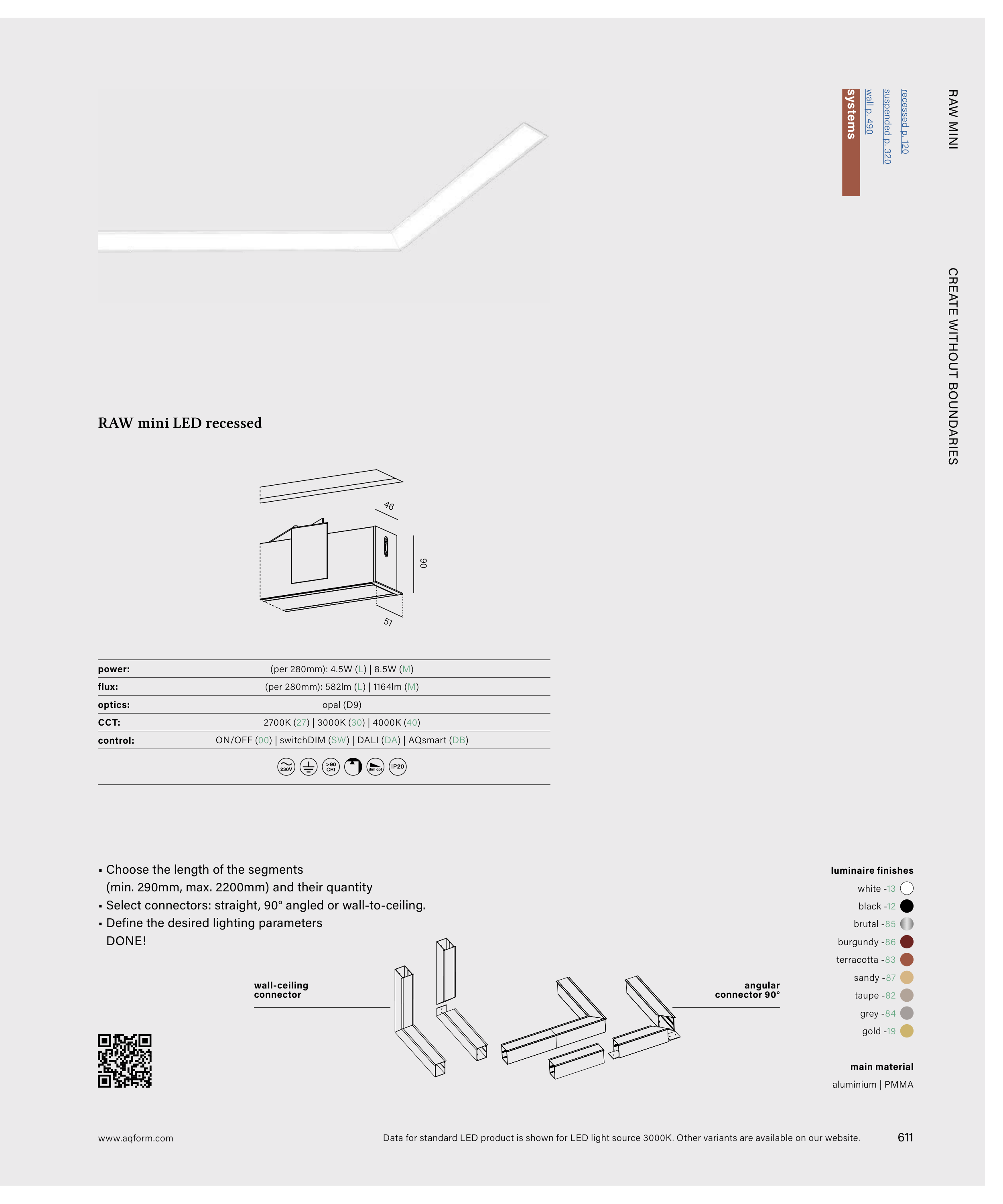

RAW MINI
RAW mini LED recessed
2700K (27) | 3000K (30) | 4000K (40)
ON/OFF (00) | switchDIM (SW) | DALI (DA) | AQsmart (DB)
power:
flux:
optics:
CCT:
control:
46
51
90
(per 280mm): 4.5W (L) | 8.5W (M)
(per 280mm): 582lm (L) | 1164lm (M)
opal (D9)
230V
CRI
>90
dim opt
IP20
main material
aluminium | PMMA
• Choose the length of the segments
(min. 290mm, max. 2200mm) and their quantity
• Select connectors: straight, 90° angled or wall-to-ceiling.
• Define the desired lighting parameters
DONE!
brutal -85
recessed p. 120
suspended p. 320
wall p. 490
systems
white -13
black -12
grey -84
terracotta -83
taupe -82
gold -19
luminaire finishes
burgundy -86
sandy -87
angular
connector 90°
wall-ceiling
connector
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
www.aqform.com
611
