PIPER
suspended p. 274
wall p. 486
systems
PIPER

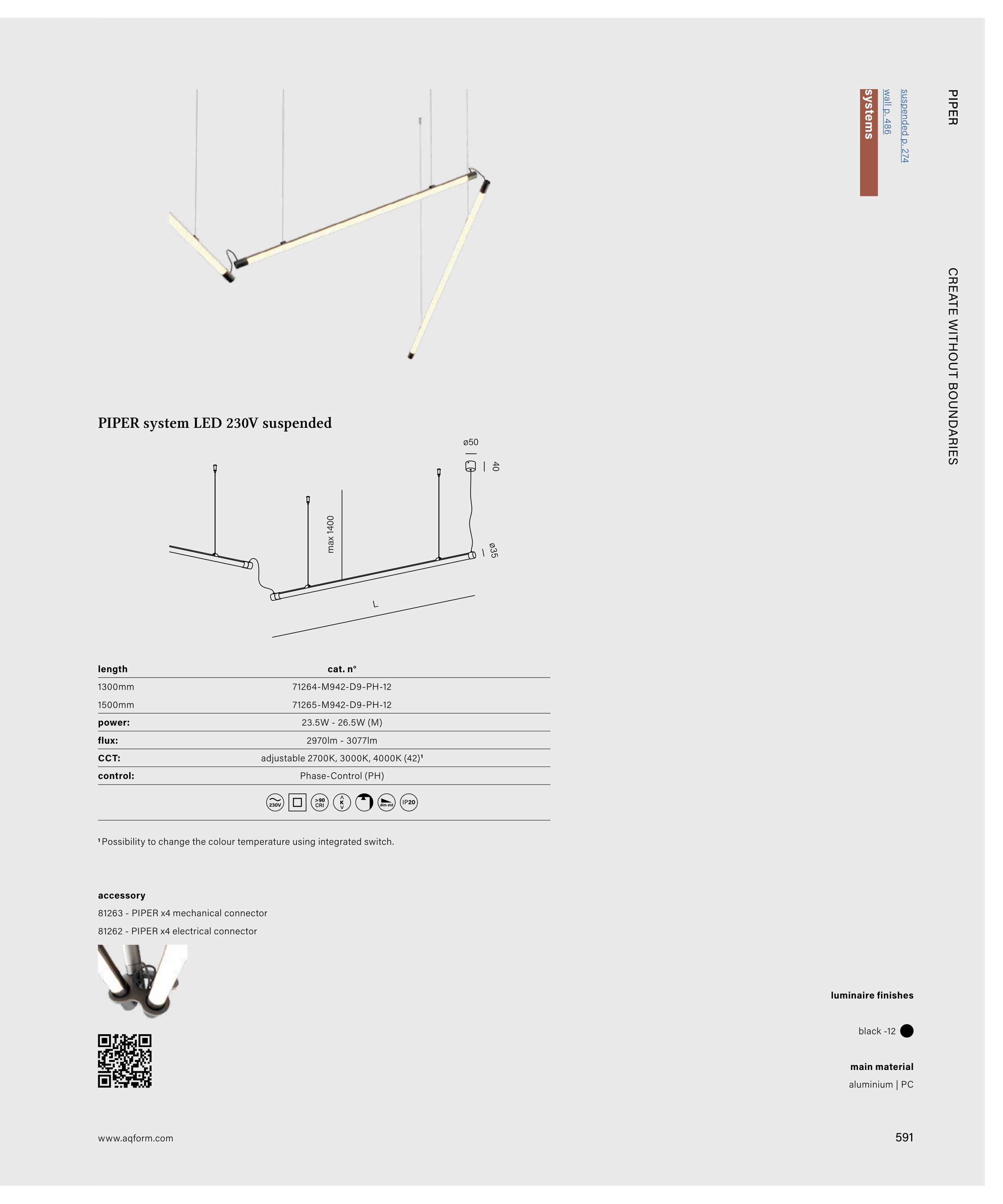

PIPER system LED 230V suspended
L
ø35
max 1400
ø50
40
adjustable 2700K, 3000K, 4000K (42)1
Phase-Control (PH)
power:
flux:
CCT:
control:
23.5W - 26.5W (M)
2970lm - 3077lm
71264-M942-D9-PH-12
71265-M942-D9-PH-12
cat. n°
black -12
luminaire finishes
main material
aluminium | PC
length
1300mm
1500mm
230V
CRI
>90
dim std
IP20
accessory
81263 - PIPER x4 mechanical connector
81262 - PIPER x4 electrical connector
1 Possibility to change the colour temperature using integrated switch.
www.aqform.com
591
CREATE WITHOUT BOUNDARIES
