35
62
L

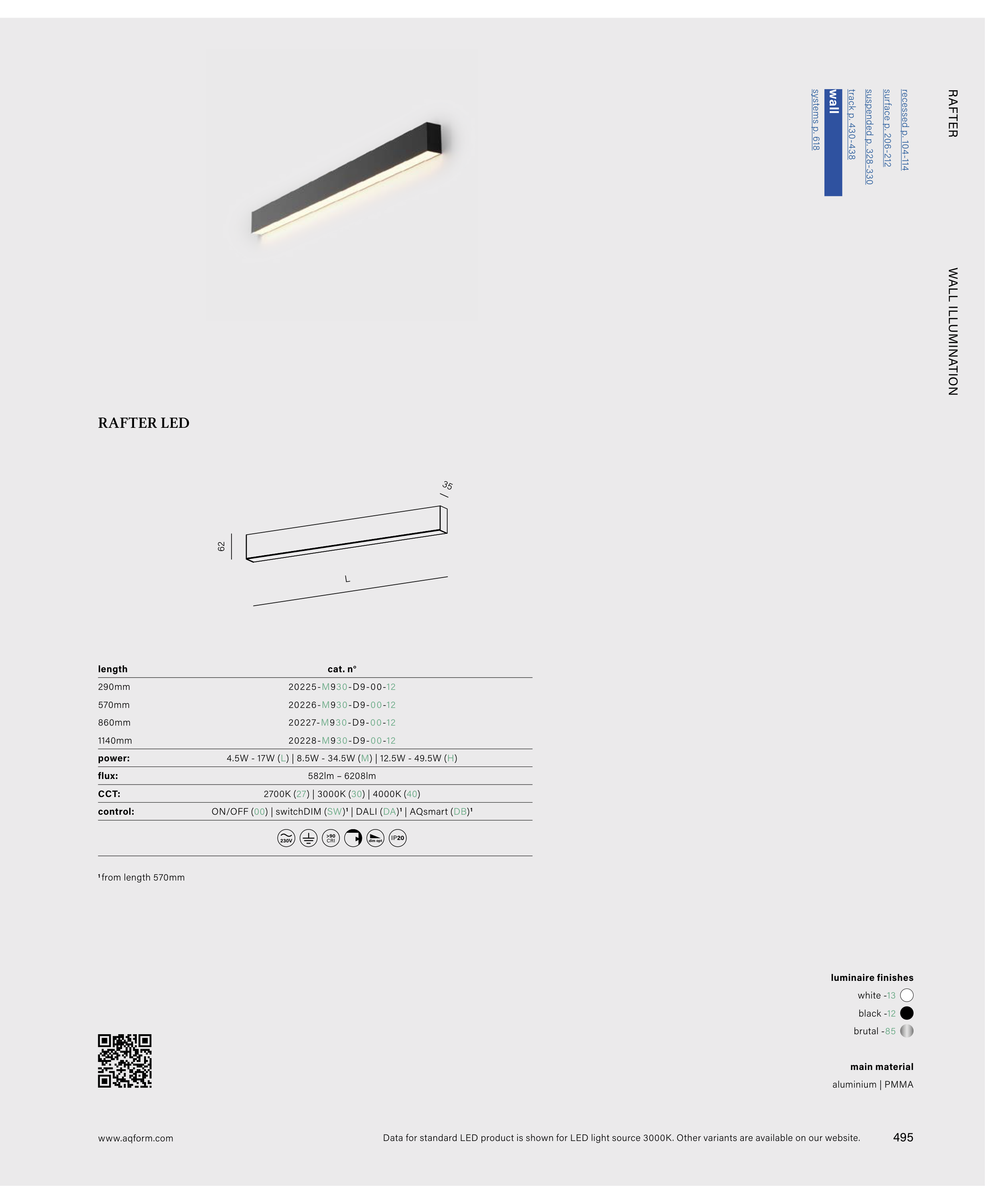

RAFTER LED
20225-M930-D9-00-12
20226-M930-D9-00-12
20227-M930-D9-00-12
20228-M930-D9-00-12
length
290mm
570mm
860mm
1140mm
4.5W - 17W (L) | 8.5W - 34.5W (M) | 12.5W - 49.5W (H)
582lm – 6208lm
2700K (27) | 3000K (30) | 4000K (40)
ON/OFF (00) | switchDIM (SW)1 | DALI (DA)1 | AQsmart (DB)1
power:
flux:
CCT:
control:
230V
CRI
>90
dim opt
IP20
RAFTER
1 from length 570mm
cat. n°
recessed p. 104-114
surface p. 206-212
suspended p. 328-330
track p. 430-438
wall
systems p. 618
white -13
black -12
luminaire finishes
main material
aluminium | PMMA
brutal -85
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
www.aqform.com
495
WALL ILLUMINATION
