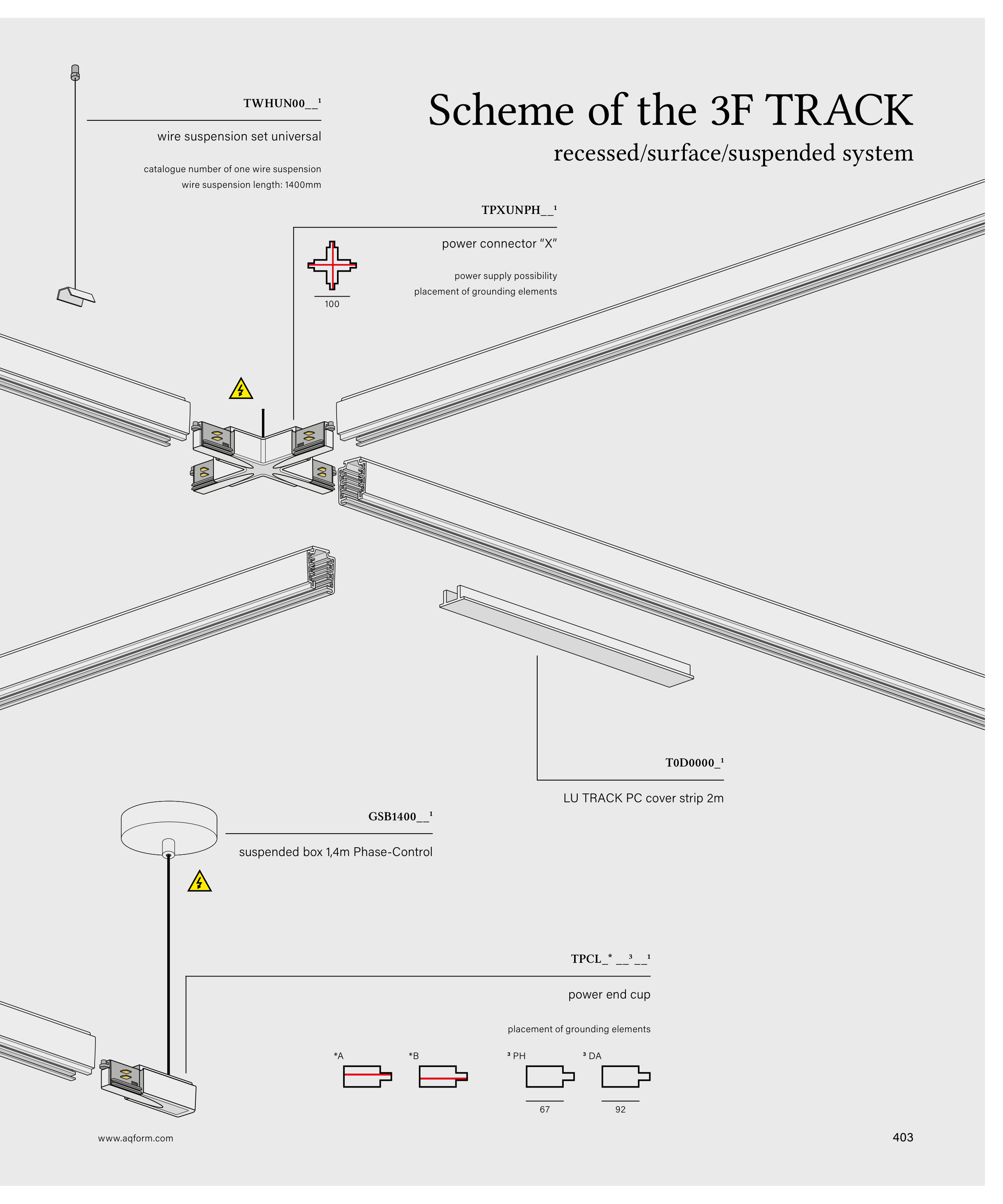

Scheme of the 3F TRACK
recessed/surface/suspended system
TPXUNPH__1
power connector “X”
power supply possibility
placement of grounding elements
TWHUN00__1
wire suspension set universal
catalogue number of one wire suspension
wire suspension length: 1400mm
T0D0000_1
LU TRACK PC cover strip 2m
TPCL_* __3 __1
power end cup
placement of grounding elements
*B
*A
67
92
3 PH
3 DA
GSB1400__1
suspended box 1,4m Phase-Control
100
