26.2
54
max
60Vdc
Data BUS
74
54
max
60V dc
Data BUS

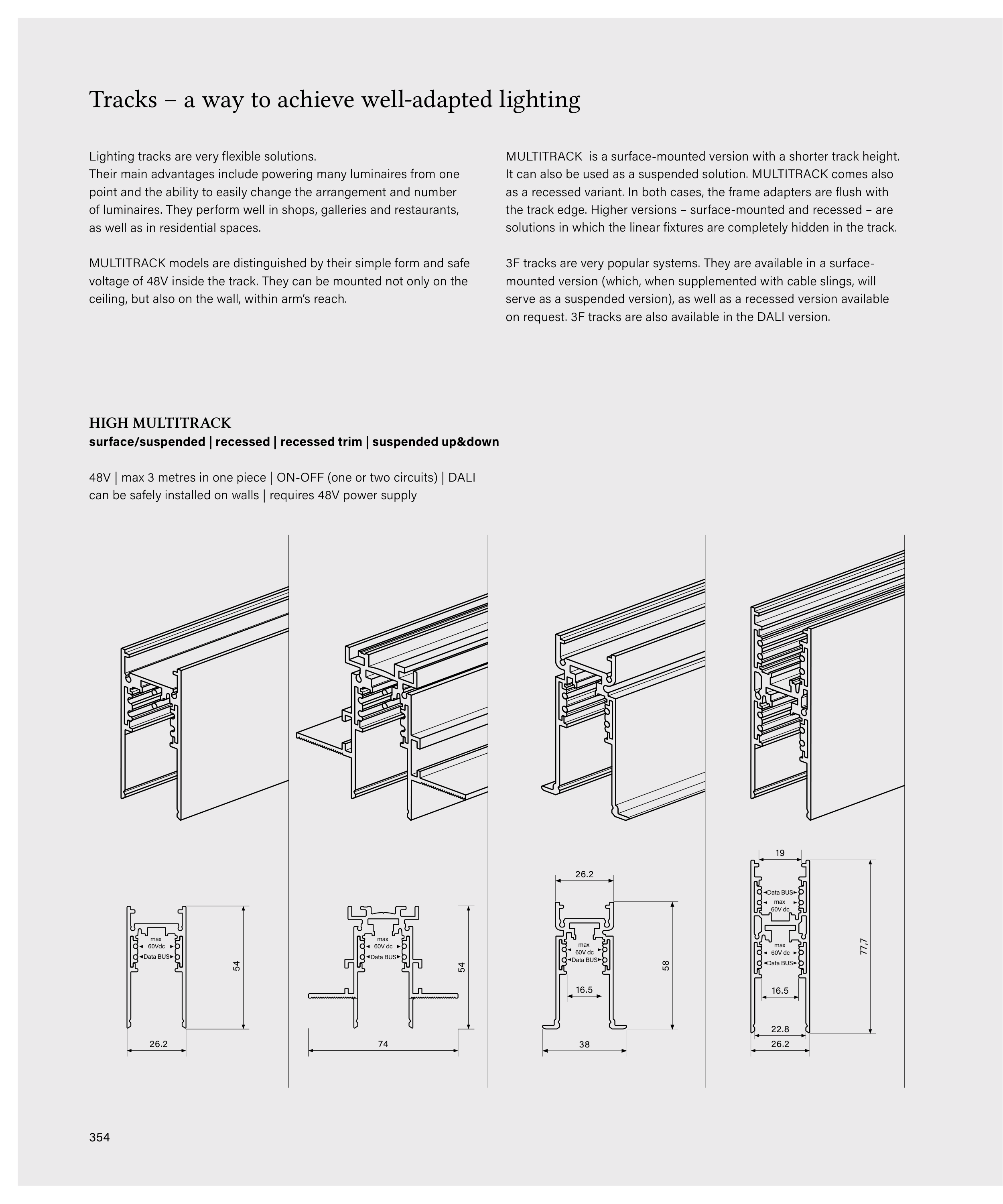

HIGH MULTITRACK
surface/suspended | recessed | recessed trim | suspended up&down
48V | max 3 metres in one piece | ON-OFF (one or two circuits) | DALI
can be safely installed on walls | requires 48V power supply
Tracks – a way to achieve well-adapted lighting
38
16.5
26.2
58
max
60V dc
Data BUS
26.2
22.8
16.5
19
77,7
max
60V dc
Data BUS
max
60V dc
Data BUS
Lighting tracks are very flexible solutions.
Their main advantages include powering many luminaires from one
point and the ability to easily change the arrangement and number
of luminaires. They perform well in shops, galleries and restaurants,
as well as in residential spaces.
MULTITRACK models are distinguished by their simple form and safe
voltage of 48V inside the track. They can be mounted not only on the
ceiling, but also on the wall, within arm’s reach.
MULTITRACK is a surface-mounted version with a shorter track height.
It can also be used as a suspended solution. MULTITRACK comes also
as a recessed variant. In both cases, the frame adapters are flush with
the track edge. Higher versions – surface-mounted and recessed – are
solutions in which the linear fixtures are completely hidden in the track.
3F tracks are very popular systems. They are available in a surface-
mounted version (which, when supplemented with cable slings, will
serve as a suspended version), as well as a recessed version available
on request. 3F tracks are also available in the DALI version.
