RAFTER
50593-M930-WB-00-12
50594-M930-WB-00-12
50595-M930-WB-00-12
50596-M930-WB-00-12

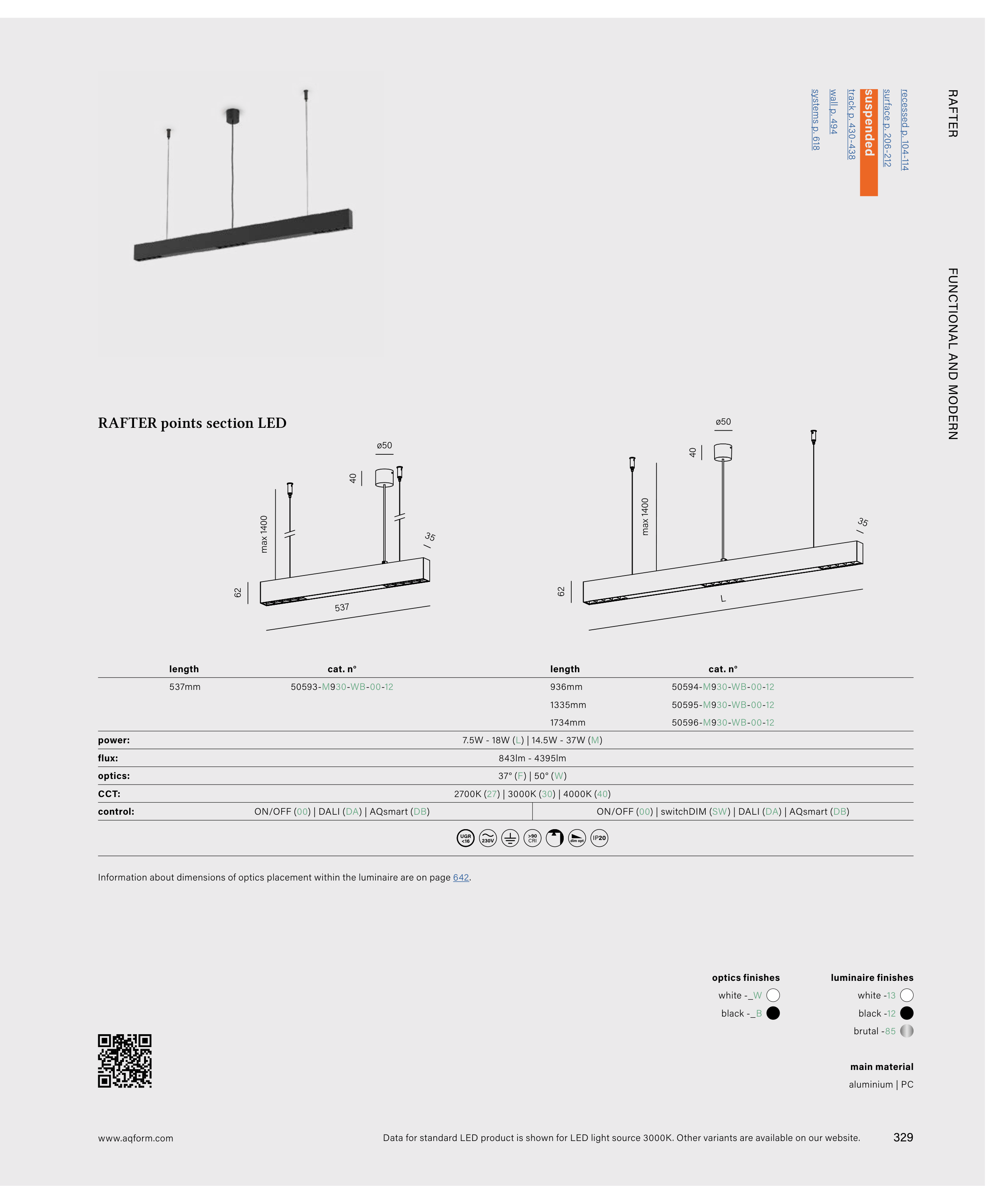

RAFTER points section LED
7.5W - 18W (L) | 14.5W - 37W (M)
843lm - 4395lm
2700K (27) | 3000K (30) | 4000K (40)
37° (F) | 50° (W)
ON/OFF (00) | DALI (DA) | AQsmart (DB)
ON/OFF (00) | switchDIM (SW) | DALI (DA) | AQsmart (DB)
cat. n°
cat. n°
230V
CRI
>90
dim opt
IP20
power:
flux:
optics:
CCT:
control:
ø50
40
35
62
537
max 1400
ø50
40
35
62
L
max 1400
aluminium | PC
main material
length
length
936mm
1335mm
1734mm
537mm
white -_W
black -_B
optics finishes
white -13
black -12
luminaire finishes
brutal -85
UGR
<16
Information about dimensions of optics placement within the luminaire are on page 642.
recessed p. 104-114
surface p. 206-212
suspended
track p. 430-438
wall p. 494
systems p. 618
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
www.aqform.com
329
FUNCTIONAL AND MODERN
