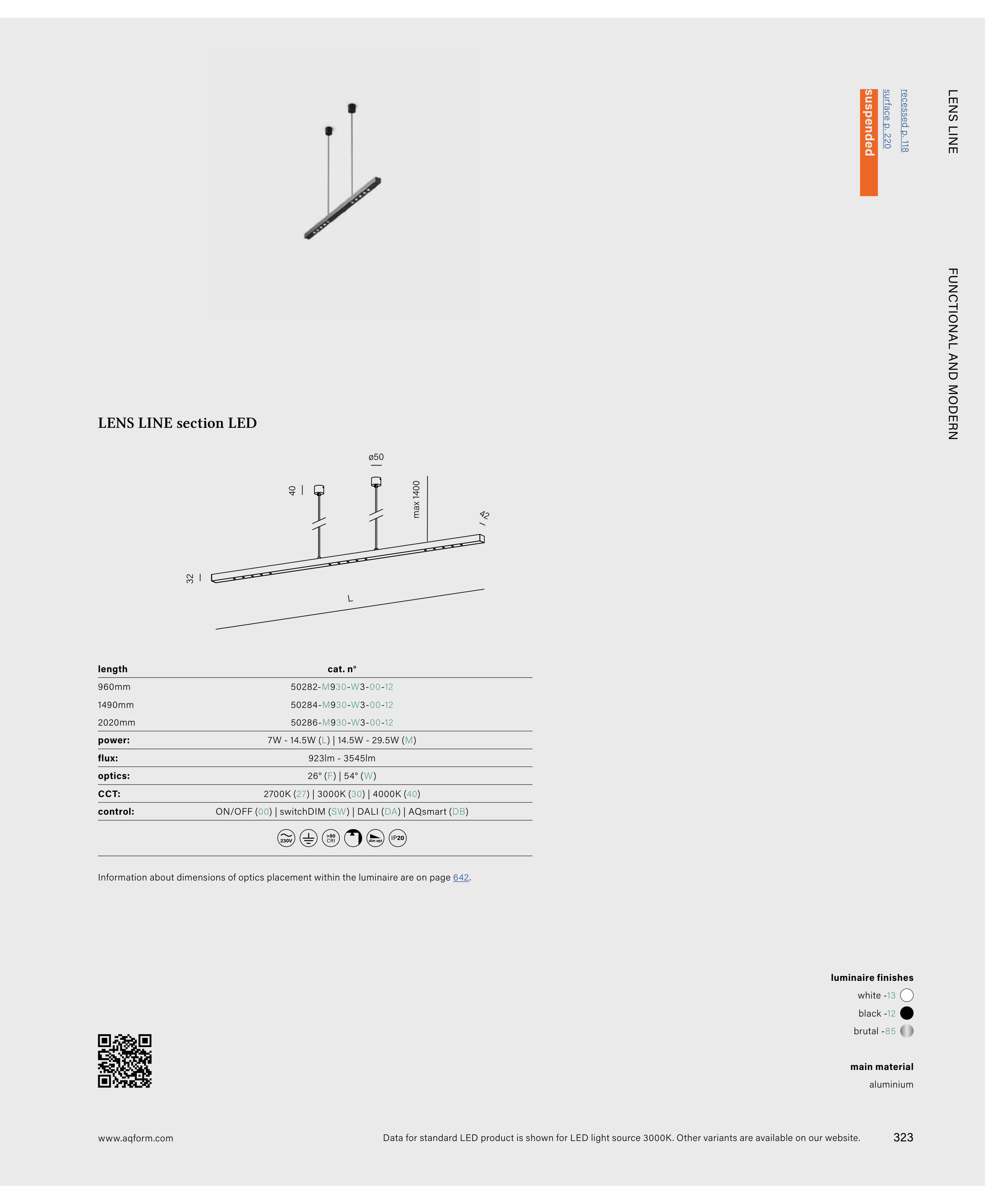

LENS LINE
50282-M930-W3-00-12
50284-M930-W3-00-12
50286-M930-W3-00-12
LENS LINE section LED
7W - 14.5W (L) | 14.5W - 29.5W (M)
923lm - 3545lm
2700K (27) | 3000K (30) | 4000K (40)
26° (F) | 54° (W)
ON/OFF (00) | switchDIM (SW) | DALI (DA) | AQsmart (DB)
cat. n°
230V
CRI
>90
dim opt
IP20
power:
flux:
optics:
CCT:
control:
L
32
42
40
ø50
max 1400
aluminium
main material
recessed p. 118
surface p. 220
suspended
length
960mm
1490mm
2020mm
white -13
black -12
luminaire finishes
brutal -85
Information about dimensions of optics placement within the luminaire are on page 642.
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
www.aqform.com
323
FUNCTIONAL AND MODERN
