PET
aluminium
accessory
honeycomb
main material
L
max 1400
ø50
40
L
ø38
L
max 1400
ø60
ø50
40
L
max 1400
ø80
ø50
40
11.5W (L) | 17W (M)
8.5W (M)
4.5W (M)
1617lm - 2261lm
1149lm
18° (S) | 35° (F) | 50° (W)
19° (S) | 32° (F) | 63° (W)
543lm
20° (S) | 41° (W)
ON/OFF (00)
ON/OFF (00) | Phase-Control (PH) | DALI (DA)
2700K (27) | 3000K (30) | 4000K (40)
cat. n°
cat. n°
cat. n°

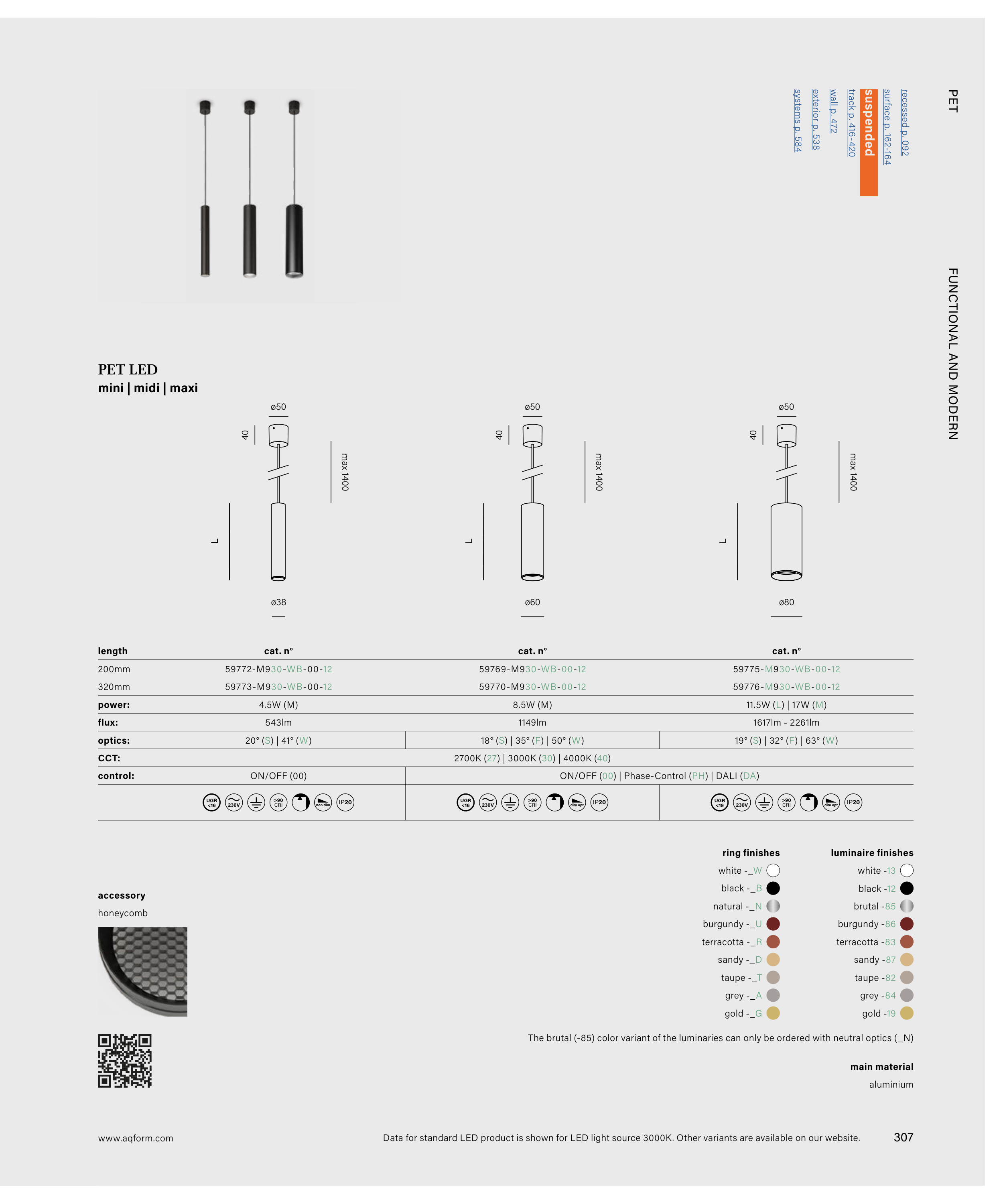

PET LED
mini | midi | maxi
59772-M930-WB-00-12
59773-M930-WB-00-12
59775-M930-WB-00-12
59776-M930-WB-00-12
59769-M930-WB-00-12
59770-M930-WB-00-12
power:
flux:
optics:
CCT:
control:
230V
230V
230V
CRI
>90
CRI
>90
CRI
>90
dim opt
dim opt
non dim
IP20
IP20
IP20
length
200mm
320mm
natural -_N
brutal -85
The brutal (-85) color variant of the luminaries can only be ordered with neutral optics (_N)
white -13
black -12
grey -84
terracotta -83
taupe -82
gold -19
luminaire finishes
white -_W
burgundy -_U
burgundy -86
black -_B
sandy -_D
sandy -87
grey -_A
terracotta -_R
taupe -_T
gold -_G
ring finishes
UGR
<16
UGR
<16
UGR
<19
recessed p. 092
surface p. 162-164
suspended
track p. 416-420
wall p. 472
exterior p. 538
systems p. 584
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
www.aqform.com
307
FUNCTIONAL AND MODERN
