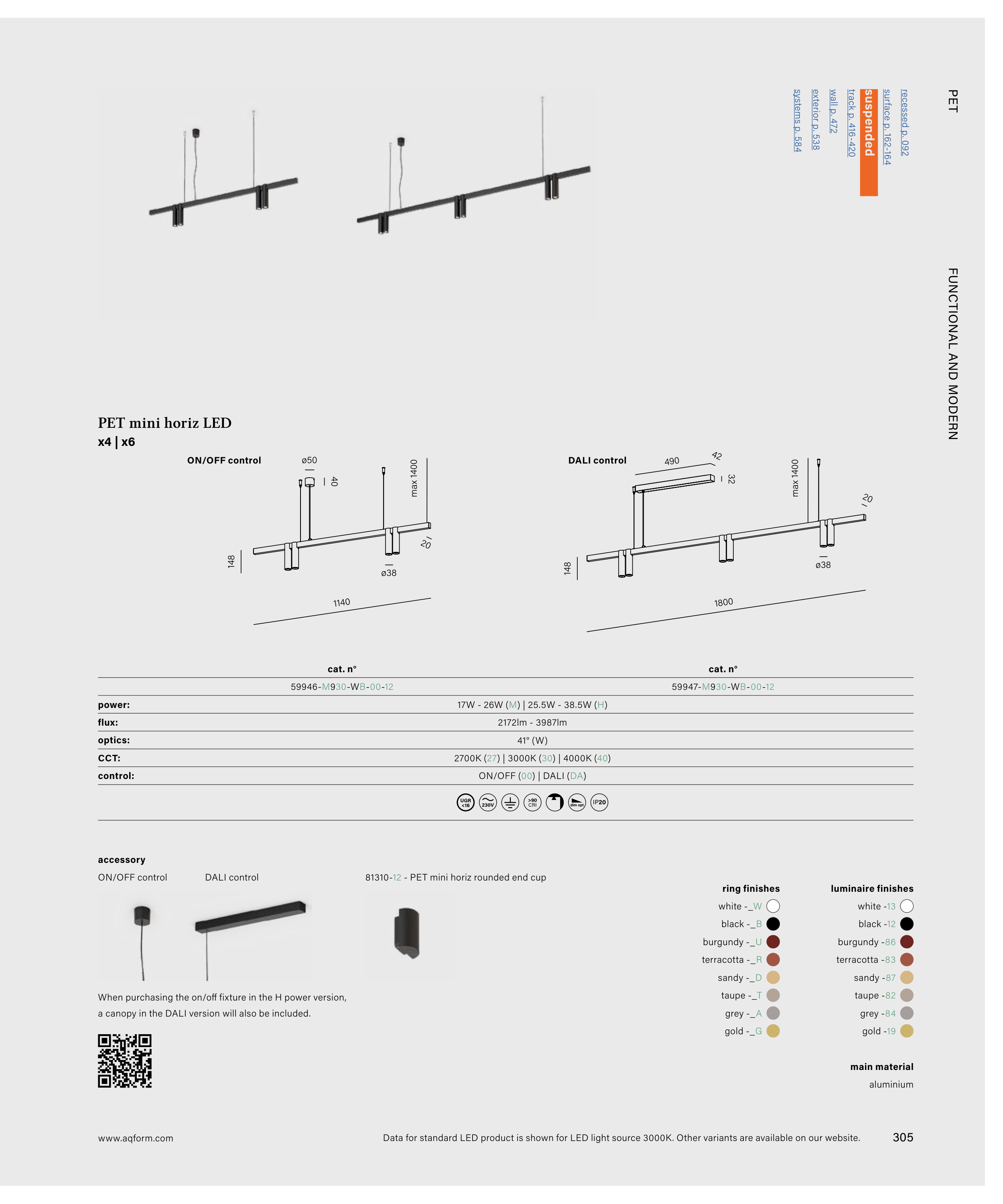

PET
59946-M930-WB-00-12
59947-M930-WB-00-12
PET mini horiz LED
x4 | x6
17W - 26W (M) | 25.5W - 38.5W (H)
2172lm - 3987lm
2700K (27) | 3000K (30) | 4000K (40)
41° (W)
ON/OFF (00) | DALI (DA)
cat. n°
cat. n°
230V
CRI
>90
dim opt
IP20
148
1140
max 1400
20
ø38
ø50
40
148
20
1800
490
max 1400
ø38
32
42
aluminium
main material
power:
flux:
optics:
CCT:
control:
accessory
ON/OFF control
When purchasing the on/off fixture in the H power version,
a canopy in the DALI version will also be included.
DALI control
ON/OFF control
DALI control
white -13
black -12
grey -84
terracotta -83
taupe -82
gold -19
luminaire finishes
white -_W
burgundy -_U
burgundy -86
black -_B
sandy -_D
sandy -87
grey -_A
terracotta -_R
taupe -_T
gold -_G
ring finishes
UGR
<16
recessed p. 092
surface p. 162-164
suspended
track p. 416-420
wall p. 472
exterior p. 538
systems p. 584
81310-12 - PET mini horiz rounded end cup
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
www.aqform.com
305
