MODERN GLASS

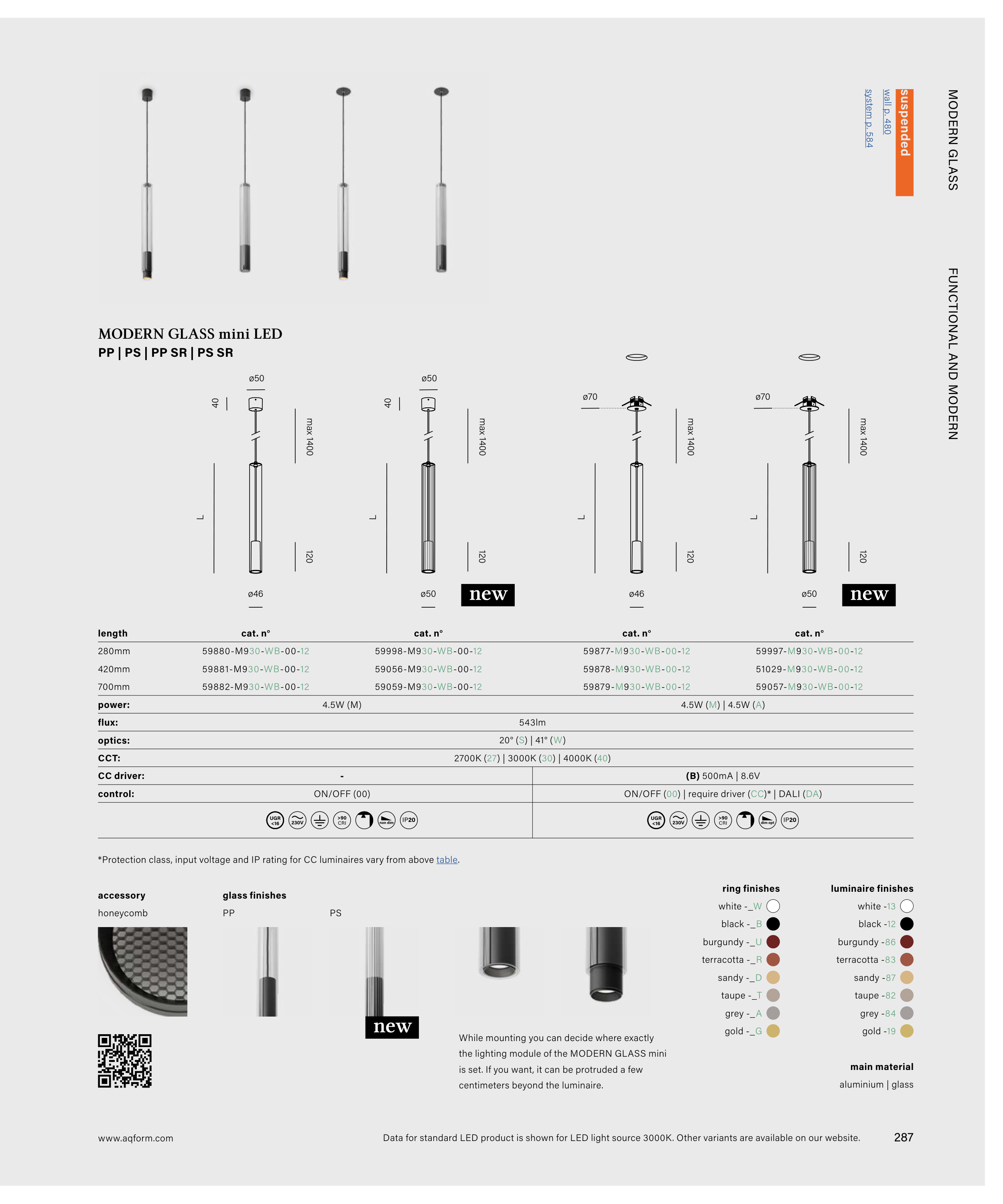

MODERN GLASS mini LED
PP | PS | PP SR | PS SR
543lm
4.5W (M)
4.5W (M) | 4.5W (A)
(B) 500mA | 8.6V
-
2700K (27) | 3000K (30) | 4000K (40)
20° (S) | 41° (W)
ON/OFF (00) | require driver (CC)* | DALI (DA)
ON/OFF (00)
cat. n°
cat. n°
cat. n°
cat. n°
230V
230V
CRI
>90
CRI
>90
non dim
dim opt
IP20
IP20
L
ø46
ø50
max 1400
120
40
L
ø50
ø50
max 1400
120
40
L
ø46
ø70
max 1400
120
L
ø50
max 1400
120
ø70
59880-M930-WB-00-12
59881-M930-WB-00-12
59882-M930-WB-00-12
59998-M930-WB-00-12
59056-M930-WB-00-12
59059-M930-WB-00-12
59877-M930-WB-00-12
59878-M930-WB-00-12
59879-M930-WB-00-12
59997-M930-WB-00-12
51029-M930-WB-00-12
59057-M930-WB-00-12
While mounting you can decide where exactly
the lighting module of the MODERN GLASS mini
is set. If you want, it can be protruded a few
centimeters beyond the luminaire.
power:
flux:
optics:
CCT:
CC driver:
control:
main material
*Protection class, input voltage and IP rating for CC luminaires vary from above table.
length
280mm
420mm
700mm
aluminium | glass
accessory
honeycomb
glass finishes
PS
PP
white -13
black -12
grey -84
terracotta -83
taupe -82
gold -19
luminaire finishes
white -_W
burgundy -_U
burgundy -86
black -_B
sandy -_D
sandy -87
grey -_A
terracotta -_R
taupe -_T
gold -_G
ring finishes
suspended
wall p. 480
system p. 584
UGR
<16
UGR
<16
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
www.aqform.com
287
FUNCTIONAL AND MODERN
