93
60
L
cat. n°

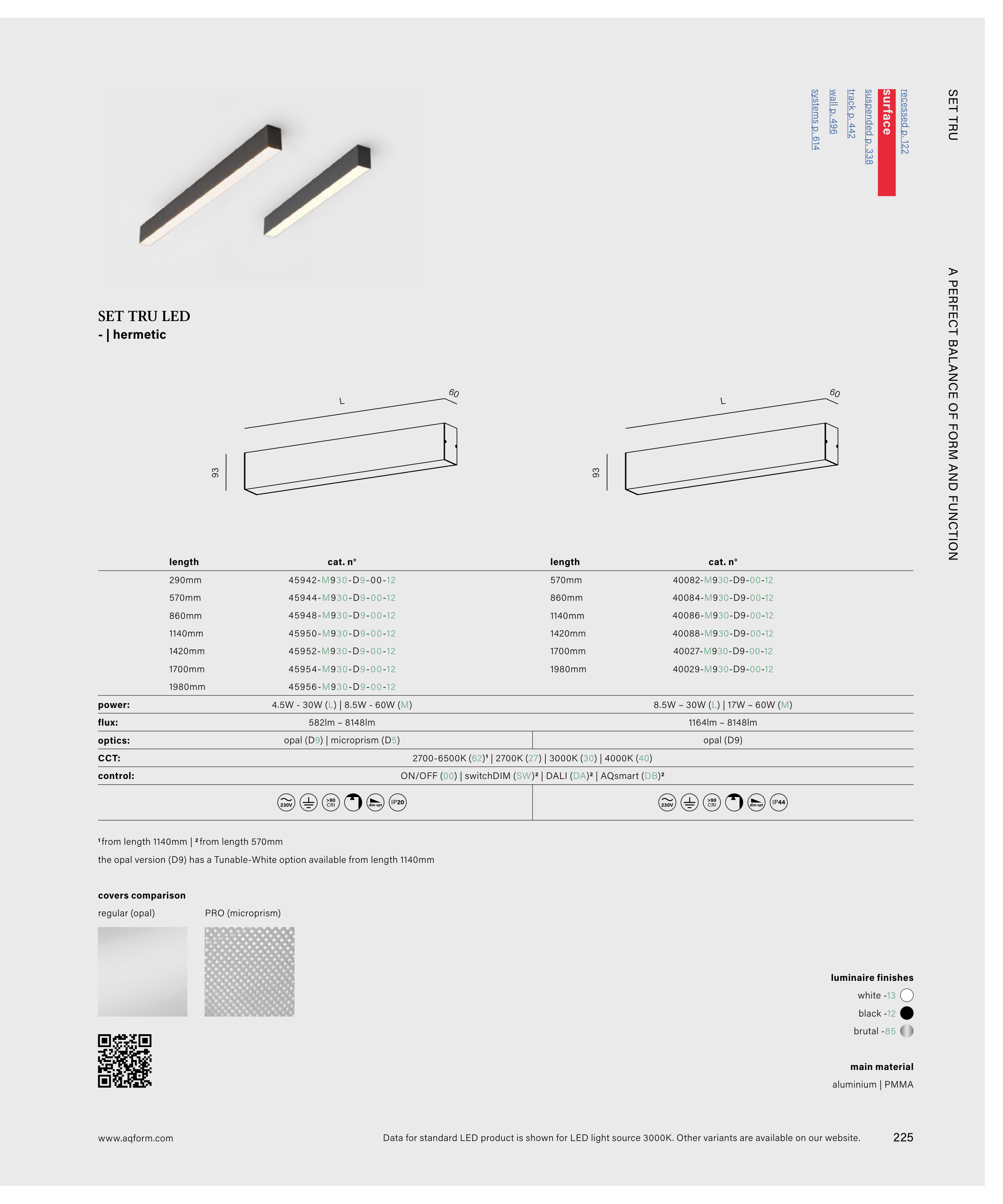

SET TRU LED
- | hermetic
45942-M930-D9-00-12
45944-M930-D9-00-12
45948-M930-D9-00-12
45950-M930-D9-00-12
45952-M930-D9-00-12
45954-M930-D9-00-12
45956-M930-D9-00-12
length
length
290mm
570mm
860mm
1140mm
1420mm
1700mm
1980mm
570mm
860mm
1140mm
1420mm
1700mm
1980mm
4.5W - 30W (L) | 8.5W - 60W (M)
582lm – 8148lm
2700-6500K (62)1 | 2700K (27) | 3000K (30) | 4000K (40)
ON/OFF (00) | switchDIM (SW)2 | DALI (DA)2 | AQsmart (DB)2
power:
flux:
optics:
CCT:
control:
230V
CRI
>90
dim opt
IP20
white -13
black -12
luminaire finishes
aluminium | PMMA
opal (D9) | microprism (D5)
opal (D9)
covers comparison
regular (opal)
PRO (microprism)
1 from length 1140mm | 2 from length 570mm
the opal version (D9) has a Tunable-White option available from length 1140mm
main material
recessed p. 122
surface
suspended p. 338
track p. 442
wall p. 496
systems p. 614
SET TRU
93
60
L
cat. n°
8.5W – 30W (L) | 17W – 60W (M)
1164lm – 8148lm
40082-M930-D9-00-12
40084-M930-D9-00-12
40086-M930-D9-00-12
40088-M930-D9-00-12
40027-M930-D9-00-12
40029-M930-D9-00-12
230V
CRI
>90
dim opt
IP44
brutal -85
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
www.aqform.com
225
