103
565
62
35
ø38
90°
103
ø38
1335
62
35
90°
103
936
62
35
ø38
90°
1364
62
35

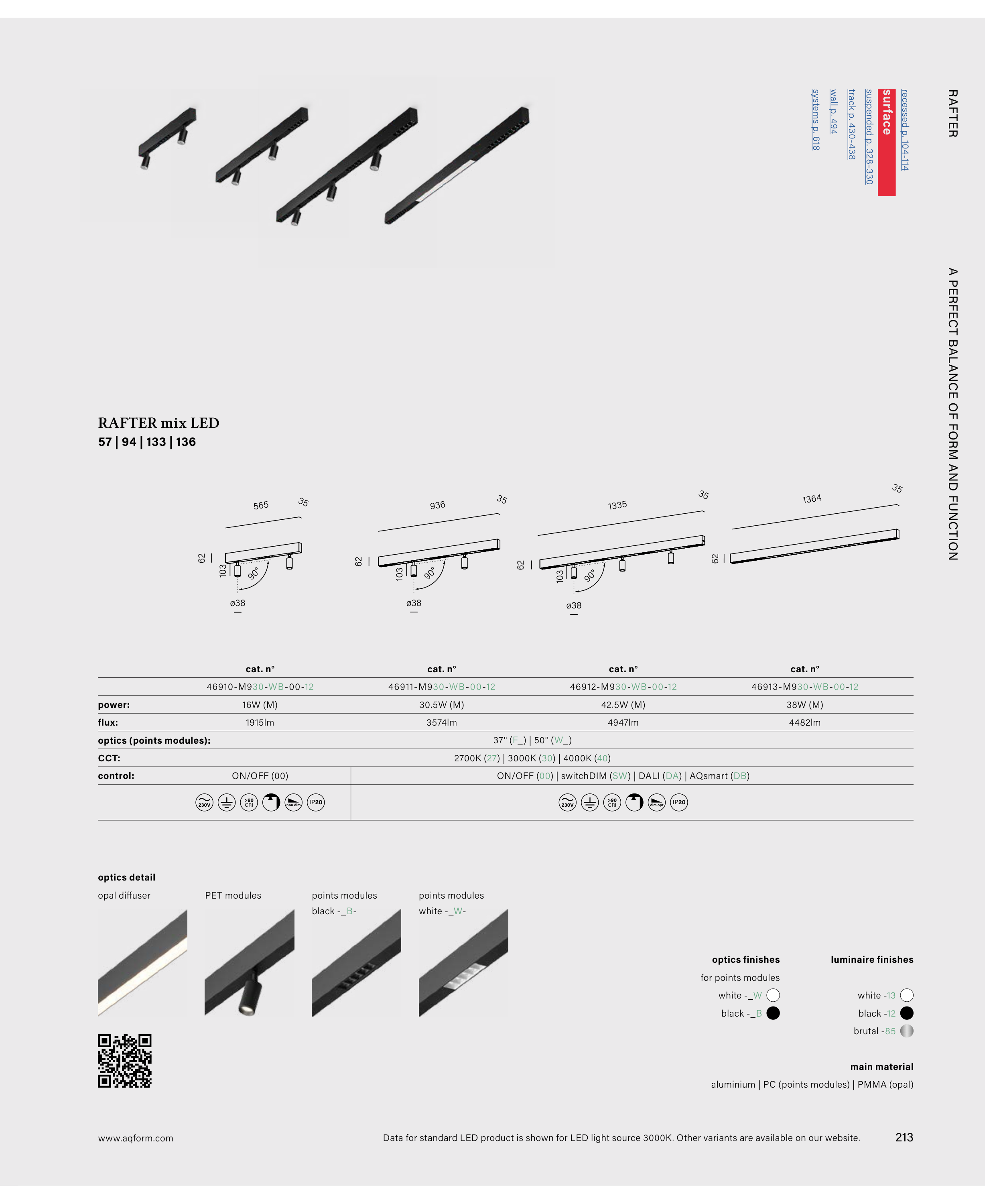

RAFTER mix LED
57 | 94 | 133 | 136
aluminium | PC (points modules) | PMMA (opal)
16W (M)
1915lm
42.5W (M)
4947lm
30.5W (M)
3574lm
38W (M)
4482lm
2700K (27) | 3000K (30) | 4000K (40)
ON/OFF (00) | switchDIM (SW) | DALI (DA) | AQsmart (DB)
ON/OFF (00)
cat. n°
cat. n°
cat. n°
cat. n°
230V
230V
CRI
>90
CRI
>90
dim opt
non dim
IP20
IP20
46910-M930-WB-00-12
46912-M930-WB-00-12
46911-M930-WB-00-12
46913-M930-WB-00-12
37° (F_) | 50° (W_)
RAFTER
optics detail
PET modules
opal diffuser
points modules
black -_B-
points modules
white -_W-
white -13
black -12
luminaire finishes
white -_W
black -_B
optics finishes
for points modules
main material
brutal -85
power:
flux:
optics (points modules):
CCT:
control:
recessed p. 104-114
surface
suspended p. 328-330
track p. 430-438
wall p. 494
systems p. 618
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
www.aqform.com
213
