Ø
8
115
30W - 250W (M) | 10.5W - 130W (A)
1506lm – 19624lm
2700-6500K (62)1 | 3000K (30) | 4000K (40)
opal (D9) | microprism (D5)
ON/OFF (00) | switchDIM (SW) | DALI (DA) | AQsmart (DB)
power:
flux:
optics:
CCT:
control:
cat. n°
230V
UGR
<19
CRI
>90
dim opt
IP20
white -13
black -12
luminaire finishes

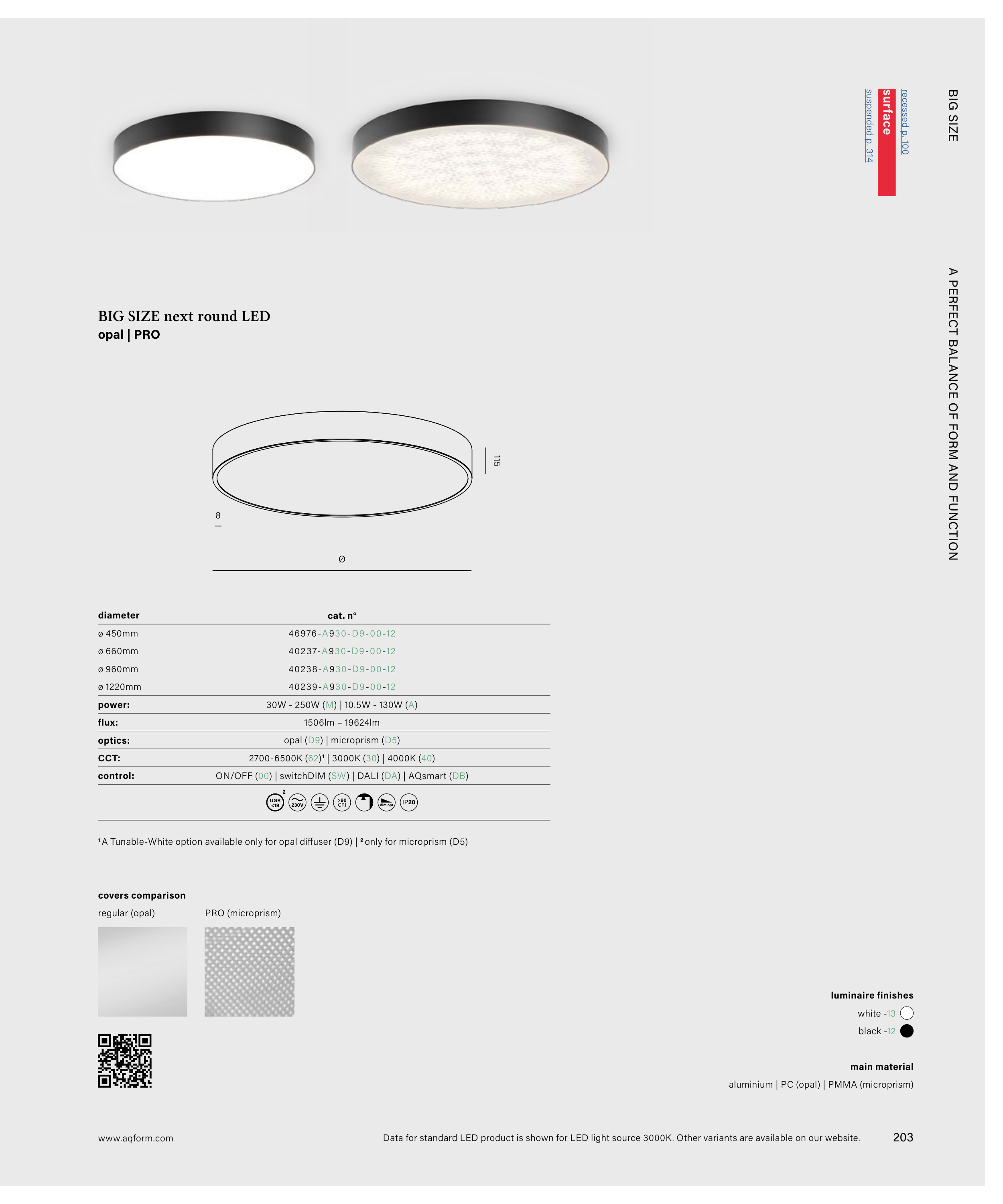

BIG SIZE next round LED
opal | PRO
46976-A930-D9-00-12
40237-A930-D9-00-12
40238-A930-D9-00-12
40239-A930-D9-00-12
diameter
ø 450mm
ø 660mm
ø 960mm
ø 1220mm
covers comparison
regular (opal)
PRO (microprism)
1 A Tunable-White option available only for opal diffuser (D9) | 2 only for microprism (D5)
2
main material
BIG SIZE
recessed p. 100
surface
suspended p. 314
aluminium | PC (opal) | PMMA (microprism)
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
www.aqform.com
203
A PERFECT BALANCE OF FORM AND FUNCTION
